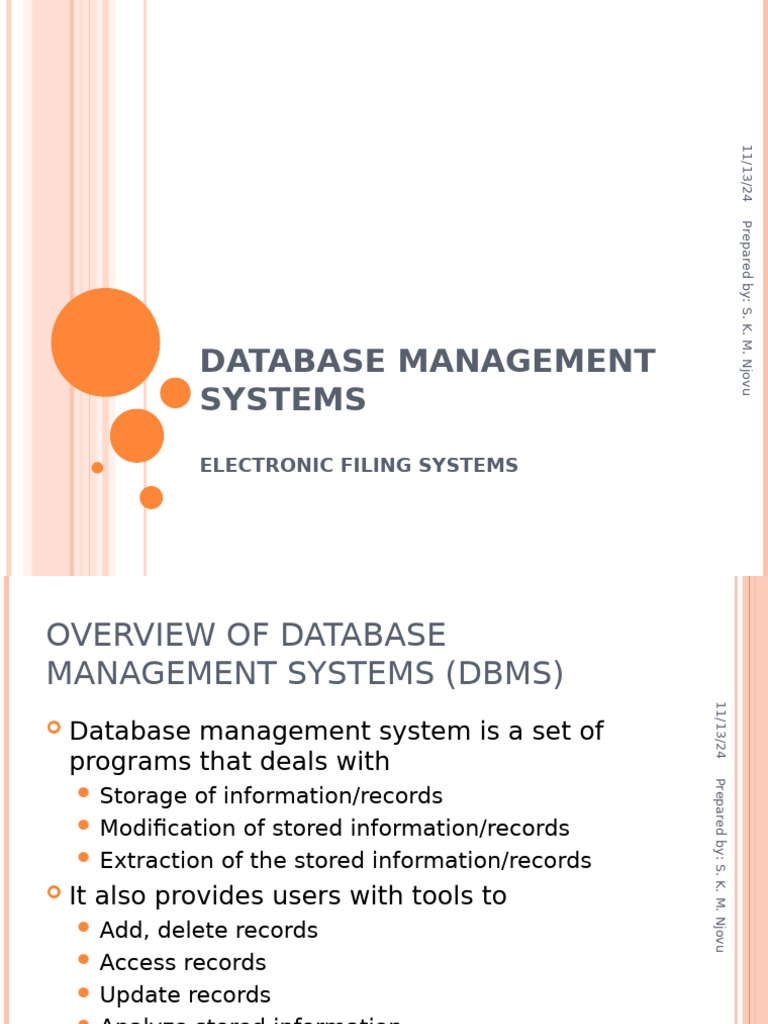

11/13/24
Prepared by: S. K. M. Njovu
DATABASE MANAGEMENT
SYSTEMS
ELECTRONIC FILING SYSTEMS
OVERVIEW OF DATABASE
MANAGEMENT SYSTEMS (DBMS)
11/13/24
Database management system is a set of
programs that deals with
Prepared by: S. K. M. Njovu
Storage of information/records
Modification of stored information/records
Extraction of the stored information/records
It also provides users with tools to
Add, delete records
Access records
Update records
Analyze stored information
TYPES/MODELS OF DBMS
11/13/24
the hierarchical model:treelike model, is
confined to a one-to-many relationship
Prepared by: S. K. M. Njovu
the network model: consists of more complex
relationships, allows for many-to-many
relationships
the relational model: uses two-dimensional
rows and columns to store data
the object relational model: has the ability to
handle graphics, pictures, voice and text
COMMON DBMS
11/13/24
What is DBMS?
Common DBMS
Prepared by: S. K. M. Njovu
MS Access
MySQL
Oracle
SQL Server
PostgreSQL
MICROSOFT ACCESS 2007 DBMS
11/13/24
This is a relational database model
Data is stored in tabular form
Prepared by: S. K. M. Njovu
Columns represent ATTRIBUTES e.g. age, sex,
marital status
Rows represent ENTITIES e.g. individual and
identifiable objects like Juma, Esther, Julieth
Examples of such databases include
TELEPHONE DIRECTORY, ADDRESS BOOK,
etc.
RELATIONAL DATABASE
Definition:
Data stored in tables that are associated by
shared attributes (keys).
Any data element (or entity) can be found in the
database through the name of the table, the
attribute name, and the value of the primary key.
RELATIONAL DATABASE DEFINITIONS
Entity: Object, Concept or event (subject)
Attribute: a Characteristic of an entity
Row or Record: the specific characteristics of
one entity
Table: a collection of records
Database: a collection of tables
Registration No Name Course
1245/T.18 Elizabeth LLB
5478/T.18 Tonny Engineering
THE RELATIONAL MODEL
Each attribute has a unique name within an
entity
All entries in the column are examples of it
Each row is unique
Ordering of rows and columns is unimportant
Each position (tuple) is limited to a single
entry.
DATA MODEL: WHAT’S A MODEL?
A data model is a representation of reality
It’s used to define the storage and
manipulation of a data base.
Data Models have two components:
Structure:the structure of the data stored within
Operations: Facilities for manipulation of the
data.
CRUD !
Refers to the most common Database
Operations:
Create
Read
Update
Delete
Operations occur at all levels: Tables,
Records, Columns
ATTRIBUTES
Characteristics of an entity
Examples:
Vehicle (VIN, color, make, model, mileage)
Student (SSN, Fname, Lname, Address)
Fishing License (Type, Start_date, End_date)
Text, date, real, integer
DATABASE TABLE EXAMPLE
Figure 1: A simple – and flawed – table design.
Figure 2: An improved database table..
DATABASE RELATIONSHIPS
How is one entity related to another entity?
Real-world sources:
Ownership
Parentage
Assignment
Regulation
Database Table Keys
Definition:
A key of a relation is a subset of attributes with the following
attributes:
• Unique identification
• Non-redundancy
TYPES OF KEYS
PRIMARY KEY
Serves as the row level addressing mechanism in
the relational database model.
It can be formed through the combination of
several items.
FOREIGN KEY
A column or set of columns within a table that
are required to match those of a primary key of a
second table.
These keys are used to form a RELATIONAL
JOIN - thereby connecting row to row across
the individual tables.
Relational Database Management
System (RDBMS)
Table A
Name Address Parcel #
John Smith 18 Lawyers Dr. 756554
T. Brown 14 Summers Tr. 887419
Table B
Parcel # Assessed Value
887419 152,000
446397 100,000
DATABASE KEYS
Primary Key - Indicates uniqueness within
records or rows in a table.
Foreign Key - the primary key from another
table, this is the only way join relationships
can be established.
There may also be alternate or secondary
keys within a table.
ICT IN LEGAL (LAW) SECTOR
11/13/24
Digital legal documents
Electronic filing system
Prepared by: S. K. M. Njovu
Digitalized legal systems
Proceedings in court –recording -Case
management systems
Case reports, user-opinions, etc
Searching and summarizing
Prediction –simulation
Digitalized legal councilor –Advocate
Digital Legal clinic
Limitations
11/13/24 Prepared by: S. K. M. Njovu
STOP
CONSTRUCTING JOIN RELATIONSHIPS
One-to-many relationships include the
Primary Key of the ‘one’ table and a Foreign
Key (FK) in the ‘many’ table.
GETTING STARTED WITH MADBMS
11/13/24
Point and click at WINDOWS BUTTON
Point and click at ALL PROGRAMS
Prepared by: S. K. M. Njovu
Locate and point at Microsoft Office
Locate, point and click at Microsoft Access
2007
Wait to see the following initial screen …
11/13/24 Prepared by: S. K. M. Njovu
MICROSOFT ACCESS 2007
CREATING A NEW BLANK DATABASE
11/13/24
Click at NEW BLANK DATABASE
Specify the database file name e.g.
Prepared by: S. K. M. Njovu
students2013
Specify storage area of your database e.g.
your flash disk
Click at the CREATE button to get the
following screen …
11/13/24 Prepared by: S. K. M. Njovu
DATABASE CREATION WINDOW
CREATING TABLES
11/13/24
Assume the database is open, proceed as
follows:
Prepared by: S. K. M. Njovu
Click at CREATE, TABLE
Click at VIEW, choose DESIGN VIEW
Save the table to be created i.e. type table name
and click OK … the fields screen appears
Define the fields – field name, data type, other
field properties
Close the fields’ definition window, SAVE
CHANGES
Check the following three screens …
11/13/24 Prepared by: S. K. M. Njovu
CREATE TABLE SCREEN
11/13/24 Prepared by: S. K. M. Njovu
TABLE DESIGN VIEW
11/13/24 Prepared by: S. K. M. Njovu
FIELDS DEFINITION SCREEN
DEFINING THE FIELDS
11/13/24
Type the field name e.g. reg-number
Specify its data type e.g. text
Prepared by: S. K. M. Njovu
Specify general properties
Fieldlength: 10
Required: yes
Indexed: yes, no duplicate
Repeat the above process for the remaining
fields as required by your table
Save your table once more
CREATING A SAMPLE DATABASE
11/13/24
Let us assume it is an MU staff database
Database name: MU-STAFF
Prepared by: S. K. M. Njovu
Tables: main table and subsidiary tables as follows
Employees: main table – pfno, names, codes for sex,
marital status, education level and department
Sex: subsidiary table – sexcode, description
Marital status: subsidiary table – maritalcode, description
Education level: subsidiary table – educationcode,
description
Department: subsidiary table – departmentcode,
description
Thenumber of subsidiary tables will depend on the
complexity of the main table and the nature of data
5-9/1: CREATING RELATIONSHIPS
11/13/24
Once the tables are created, they have to be
linked
Prepared by: S. K. M. Njovu
Each subsidiary table have to be linked to the
main table
Linking fields should have some properties
identical, like field type and length
Check the demonstration …
11/13/24 Prepared by: S. K. M. Njovu
SAMPLE RELATIONSHIP OF TABLES
CREATING FORMS
11/13/24
Access forms are much like paper forms
You can use them to enter, edit, or display
Prepared by: S. K. M. Njovu
data
They are based on tables
When using a form, you can choose the
format, the arrangement, and which fields
you want to display.
How to do it, see the following slides …
STEPS TO CREATE FORMS …
11/13/24
Open your database
Select a TABLE to be used
Prepared by: S. K. M. Njovu
Click at CREATE
Click at FORM
Use it for data entry OR
Just save it for future use
As easy as taking AZAM COLA …
Demonstration …
11/13/24 Prepared by: S. K. M. Njovu
CREATING FORM SCREEN
CREATING A QUERY
11/13/24
Use a query to view a subset of your data
Use a query to answer questions about your
Prepared by: S. K. M. Njovu
data
For example, if you want to view a list of
student names and email addresses
You can create a query that displays the
student’s first name, last name, and email
address only
And so much more extraction of data …
HOW TO CREATE QUERIES
11/13/24
Open your database
Click at CREATE
Prepared by: S. K. M. Njovu
Click at QUERY DESIGN
Add tables of interest
Close the add tables window
Select fields to extract data from
Set criteria to filter your data set
Run your query
Quit or save the query
See the following slide …
11/13/24 Prepared by: S. K. M. Njovu
ADD TABLES FOR QUERY
11/13/24 Prepared by: S. K. M. Njovu
SELECT FIELDS SCREEN
CREATING REPORTS
11/13/24
Reports organize and summarize data for
viewing online or for printing
Prepared by: S. K. M. Njovu
A detail report displays all of the selected
records
You can include summary data such as totals,
counts, and percentages in a detail report
Check the steps on how to do it …
HOW TO CREATE A REPORT
11/13/24
Open a database to use
Click at CREATE, REPORT WIZARD, next
Prepared by: S. K. M. Njovu
Select TABLE or QUERY to use, next
Add fields to include in the report, next
Decide how to view your report e.g. by
employees, next,next
Choose report layout, next
Choose report style, next
Click at FINISH: you can view or just print the
report
