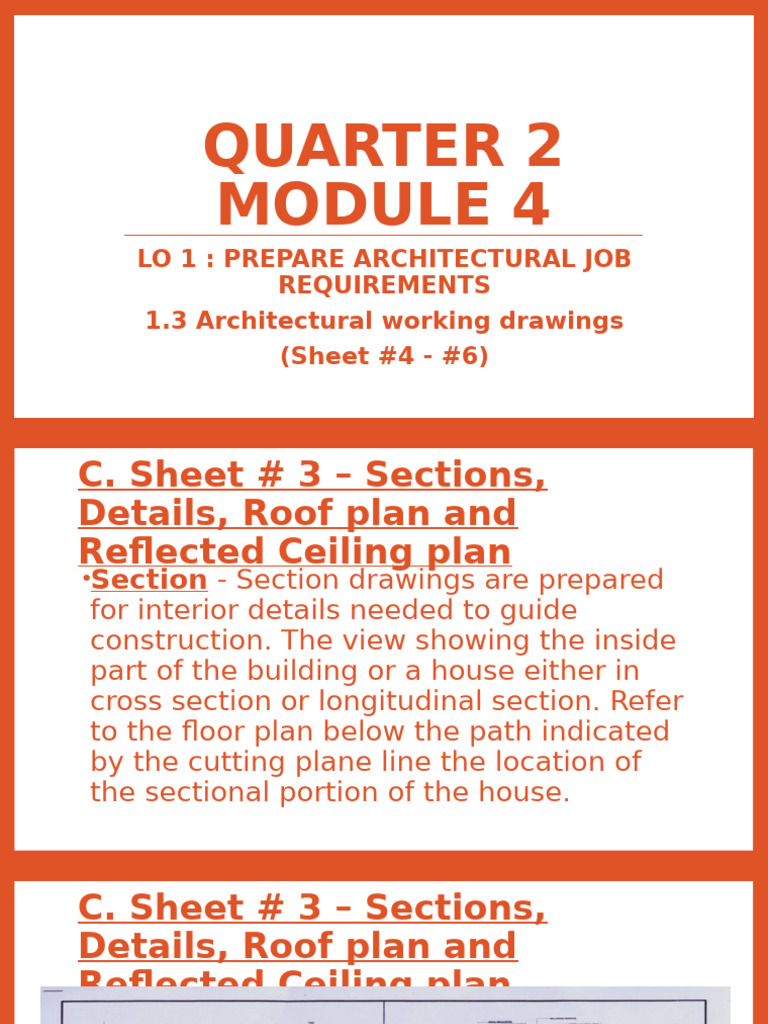

QUARTER 2
MODULE 4
LO 1 : PREPARE ARCHITECTURAL JOB
REQUIREMENTS
1.3 Architectural working drawings
(Sheet #4 - #6)
C. Sheet # 3 – Sections,
Details, Roof plan and
Reflected Ceiling plan
•Section - Section drawings are prepared
for interior details needed to guide
construction. The view showing the inside
part of the building or a house either in
cross section or longitudinal section. Refer
to the floor plan below the path indicated
by the cutting plane line the location of
the sectional portion of the house.
C. Sheet # 3 – Sections,
Details, Roof plan and
Reflected Ceiling plan
C. Sheet # 3 – Sections,
Details, Roof plan and
Reflected Ceiling plan
Longitudinal and Cross
Section
•Longitudinal Section – it is
also known as long sections,
these are the sections through
the longest length of the part of
object drawn on the house plan.
Longitudinal and Cross
Section
Figure 2 : Longitudinal Section
Cross Section – these are sections
across the narrowest length of the part of
object drawn on the house plan.
Figure 3 : Cross Section
Roof plan - shows the outline of the roof
and the major object lines indicating
ridges, valleys, hips, and openings.
Figure 4 : Roof framing plan
Ceiling plan - an outline of the ceiling
that shows the overhead interior surface
of a room.
Figure 5 : Reflected Ceiling plan
Baluster Detail - the detail of the vertical
railing along a staircase or balcony railing.
Railing can either made of steel baluster,
ceramic baluster, free-cast baluster, wooden
baluster etc.
Figure 6 : Baluster
D. Sheet # 4 – Doors and Windows
Schedule, Detail of Kitchen, and
detail of Toilet and Bath details
•Door and Window
schedule - A complete
specification of doors and
windows in terms of width,
height, types, materials and
quantity.
Door and Window schedule
Door and Window schedule
Figure 6 : Door and window schedule
Symbols of doors and windows that
are used to represent its existence
on floor plans and elevation
drawings
Symbols of doors and windows that
are used to represent its existence
on floor plans and elevation
drawings
Door, window and staircase symbols
that are shown in the elevation plans
Toilet and bath detail – a drawing of
toilet and bath floor plan that shows
complete features.
