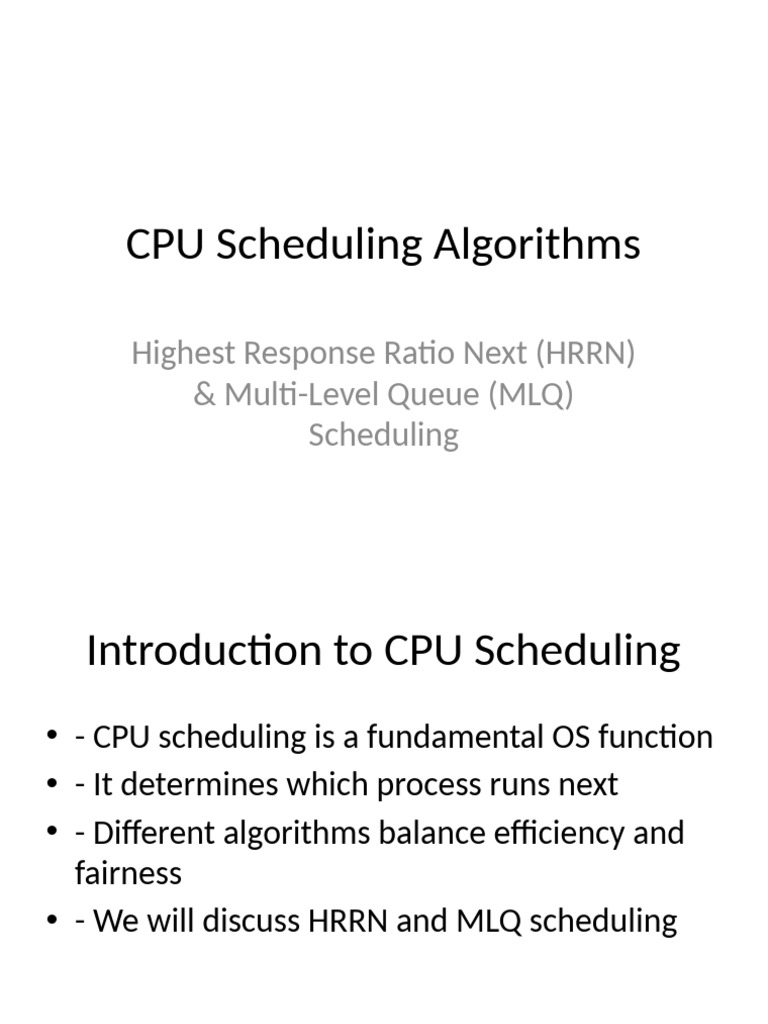

CPU Scheduling Algorithms
Highest Response Ratio Next (HRRN)
& Multi-Level Queue (MLQ)
Scheduling
Introduction to CPU Scheduling
• - CPU scheduling is a fundamental OS function
• - It determines which process runs next
• - Different algorithms balance efficiency and
fairness
• - We will discuss HRRN and MLQ scheduling
Highest Response Ratio Next (HRRN)
Scheduling
• - HRRN prioritizes processes based on
response ratio
• - Formula: Response Ratio = (Waiting Time +
Burst Time) / Burst Time
• - The process with the highest response ratio
is selected
Highest Response Ratio Next (HRRN)
Scheduling
• non-preemptive CPU Scheduling
algorithm
• considered as one of the most optimal
scheduling algorithms
• considered as the modification of
the Shortest Job First to reduce the
problem of starvation.
• CPU is allotted to the next process which
has the highest response ratio, and not to
the process having less burst time.
HRRN Scheduling - Example
HRRN Scheduling - Example
HRRN Scheduling - Example
HRRN Scheduling - Example
HRRN: Pros & Cons
• - ✅ Fairness: considers both the waiting time and burst time of
processes.
• - ✅ Better Response Time: prioritizes processes that have
been waiting for a longer period
• - ✅ No Starvation:processes that need more CPU time will
eventually get executed
• - ✅ No Starvation:processes that need more CPU time will
eventually get executed
• - ✅ Simple to Implement: only requires calculating the
response ratio and selecting the process with the highest
ratio.
HRRN: Pros & Cons
• - ❌ not practically feasible because we cannot predict the
burst time of every process in advance.
• - ❌ requires the calculation of the response ratio for each
process, which adds some computational overhead, especially
in systems with a large number of processes.
Multi-Level Queue (MLQ) Scheduling
• - MLQ scheduling divides processes into
different priority queues
• - Each queue may have its own scheduling
algorithm
• - Commonly used in multi-user and real-time
systems
MLQ Scheduling - Example
• - Example: 3 queues (System, Interactive,
Batch)
• - System queue gets highest priority, Batch
lowest
• - CPU serves queues based on predefined
priority order
MLQ Scheduling - Example
System Processes
Highest Priority (FCFS)
Interactive Processes
CPU
Medium Priority (SJF)
Batch Processes
Lowest Priority (RR)
HRRN: Pros & Cons
• - ✅ Low Scheduling Overhead: scheduler only needs to select the appropriate
queue for execution.
• - ✅ Efficient Allocation of CPU Time: processes with higher priority levels are
executed in a timely manner, while still allowing lower priority processes to
execute when the CPU is idle.
• - ✅ Customizable: algorithm can be customized to meet the specific requirements
of different types of processes. Different scheduling algorithms can be used for
each queue
• - ✅ Prioritization: Priorities are assigned to processes based on their type,
characteristics, and importance, which ensures that important processes are
executed in a timely manner.
• - ✅ Preemption: Preemption is allowed, which means that higher-priority
processes can preempt lower-priority processes. This helps ensure that high-
priority processes are executed in a timely manner.
HRRN: Pros & Cons
• - ❌ Some processes may starve for CPU if some higher priority
queues are never becoming empty.
• - ❌ inflexible in nature.
• - ❌ added complexity in implementing and maintaining
multiple queues and scheduling algorithms.
HRRN vs. MLQ Scheduling
Conclusion & Key Takeaways
• - HRRN improves fairness by balancing waiting
and execution time
• - MLQ is ideal for multi-user or real-time
systems
• - Choosing the right algorithm depends on
system requirements
Lab Assignment
• Write C++ code for implementing HRRN
scheduling algorithm.
• Write C++ code for implementing Multi-Queue
scheduling. Implement three queues : FCFS,
SJF, Round Robin.
