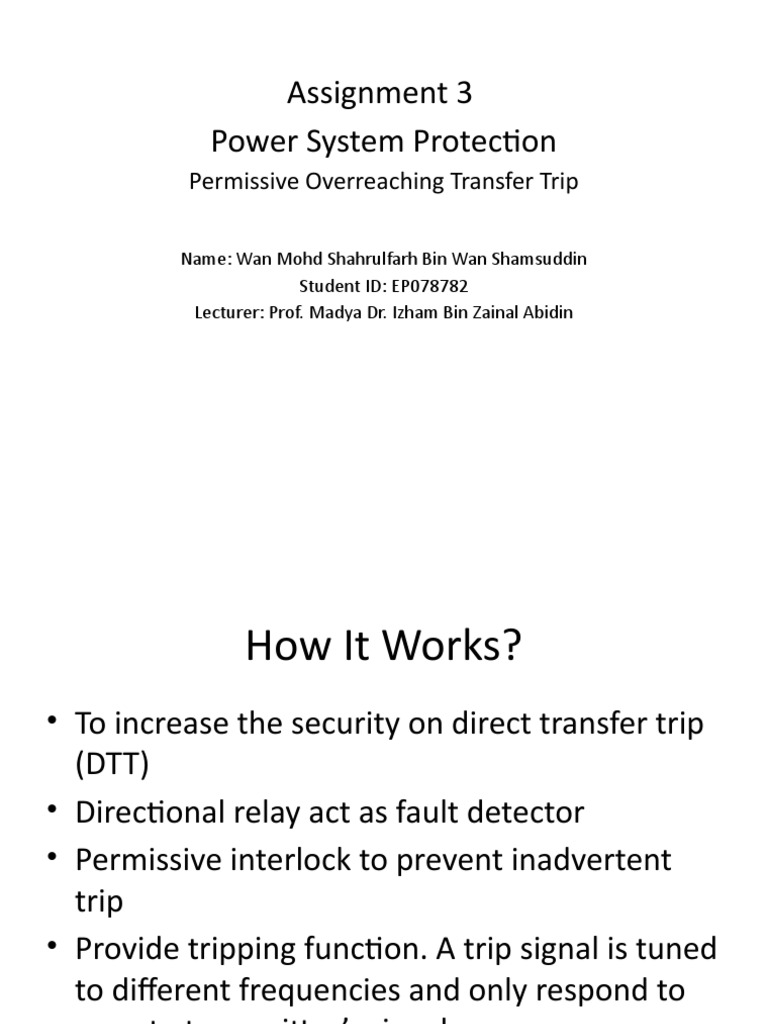

Assignment 3

Power System Protection

Permissive Overreaching Transfer Trip

Name: Wan Mohd Shahrulfarh Bin Wan Shamsuddin

Student ID: EP078782
Lecturer: Prof. Madya Dr. Izham Bin Zainal Abidin
 How It Works?
• To increase the security on direct transfer trip
(DTT)
• Directional relay act as fault detector
• Permissive interlock to prevent inadvertent
trip
• Provide tripping function. A trip signal is tuned
to different frequencies and only respond to
remote transmitter’s signal
• Referring to figure, overreaching relay 21-10 &
21-20 will send tripping signal to remote end
• Overreaching relay will operate due to internal
fault
• If local overreaching relay operates & tripping
signal received, a trip will be initiated
• It will caused 85-1 G2 to drop out ant 85-1 T2 to
pick up
 Advantages
• More Commonly used
• Less expensive
• Overreaching relay only has to see in front of
it compared to blocking scheme
• Do not have to coordinate with blocking relay
from adjacent line
 Disadvantages
• Not only local relay operate on local circuit
breaker
• The setting is more difficult compared to
directional comparison blocking
 Refferences
• S.H Horowitz and A.G. Phadke Text Book
• http://ece.uprm.edu/~lorama/Tema
%2012.pdf
