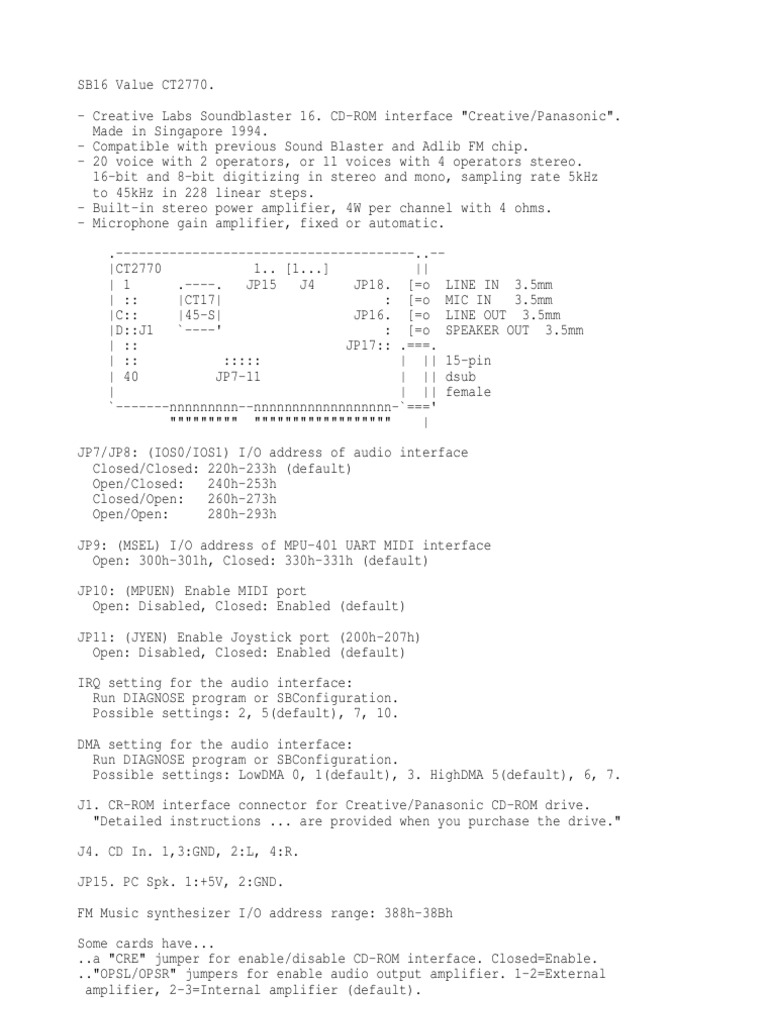

Made in Singapore 1994. - Compatible with previous Sound Blaster and Adlib FM chip. - 20 voice with 2 operators, or 11 voices with 4 operators stereo. 16-bit and 8-bit digitizing in stereo and mono, sampling rate 5kHz to 45kHz in 228 linear steps. - Built-in stereo power amplifier, 4W per channel with 4 ohms. - Microphone gain amplifier, fixed or automatic. .---------------------------------------..-- |CT2770 1.. [1...] || | 1 .----. JP15 J4 JP18. [=o LINE IN 3.5mm | :: |CT17| : [=o MIC IN 3.5mm |C:: |45-S| JP16. [=o LINE OUT 3.5mm |D::J1 `----' : [=o SPEAKER OUT 3.5mm | :: JP17:: .===. | :: ::::: | || 15-pin | 40 JP7-11 | || dsub | | || female `-------nnnnnnnnn--nnnnnnnnnnnnnnnnnn-`===' """"""""" """""""""""""""""" | JP7/JP8: (IOS0/IOS1) I/O address of audio interface Closed/Closed: 220h-233h (default) Open/Closed: 240h-253h Closed/Open: 260h-273h Open/Open: 280h-293h JP9: (MSEL) I/O address of MPU-401 UART MIDI interface Open: 300h-301h, Closed: 330h-331h (default) JP10: (MPUEN) Enable MIDI port Open: Disabled, Closed: Enabled (default) JP11: (JYEN) Enable Joystick port (200h-207h) Open: Disabled, Closed: Enabled (default) IRQ setting for the audio interface: Run DIAGNOSE program or SBConfiguration. Possible settings: 2, 5(default), 7, 10. DMA setting for the audio interface: Run DIAGNOSE program or SBConfiguration. Possible settings: LowDMA 0, 1(default), 3. HighDMA 5(default), 6, 7. J1. CR-ROM interface connector for Creative/Panasonic CD-ROM drive. "Detailed instructions ... are provided when you purchase the drive." J4. CD In. 1,3:GND, 2:L, 4:R. JP15. PC Spk. 1:+5V, 2:GND. FM Music synthesizer I/O address range: 388h-38Bh Some cards have... ..a "CRE" jumper for enable/disable CD-ROM interface. Closed=Enable. .."OPSL/OPSR" jumpers for enable audio output amplifier. 1-2=External amplifier, 2-3=Internal amplifier (default). My CONFIG.SYS: DEVICE=CTSB16.SYS /UNIT=0 /BLASTER=A:220 I:5 D:1 H:5 My AUTOEXEC.BAT: set sound=C:\SB16 set blaster=A220 D1 I5 T3
