Arduino UNO

Update USB Firmware:

● Get new firmware: https://github.com/arduino/Arduino/tree/master/hardware/arduino/firmwares/

arduino-usbserial/
● Select Arduino-usbserial-uno.hex, click on the file in the list then right click on “raw” and
click “Save as“
● Check md5sum: for the 4th December version: 8e01ee236e70bbea43f7eb4e11c9688a
● Install DFU Programmer tools: sudo aptitude install dfu-programmer

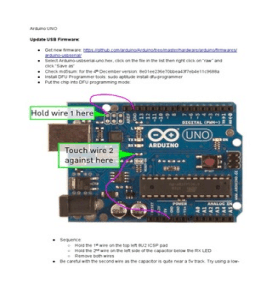

● Put the chip into DFU programming mode:

● Sequence:
○ Hold the 1st wire on the top left 8U2 ICSP pad
○ Hold the 2nd wire on the left side of the capacitor below the RX LED
○ Remove both wires
● Be careful with the second wire as the capacitor is quite near a 5v track. Try using a low-
 value resistor instead of a wire.
● To get back to normal mode, hold the 1st wire place as mentioned above, press the Reset
button and then remove the 1st wire; or just unplug the USB cable and plug it back in.
● Reflash the AT90USB82 serial-usb chip with the following commands:
○ sudo dfu-programmer at90usb82 erase
○ sudo dfu-programmer at90usb82 flash --debug 1 Arduino-usbserial-uno.hex
○ sudo dfu-programmer at90usb82 reset
● Disconnect the USB lead and reconnect to reset the device back to normal mode.

References:
● http://www.strangeparty.com/2010/12/13/fix-your-arduino-uno-for-linux/
● http://www.arduino.cc/cgi-bin/yabb2/YaBB.pl?num=1286088093/34#34
● http://www.arduino.cc/cgi-bin/yabb2/YaBB.pl?num=1285962838/10#10
● http://www.arduino.cc/cgi-bin/yabb2/YaBB.pl?num=1286088093/38#38

Install Arduino IDE on Ubuntu LTS 10.04

● Install the compiler (gcc-avr) and the libraries (avr-libc) packages: sudo apt-get install gcc-avr avr-
libc
● Other possible requirements: Java Runtime (openjdk-6-jre or sun-java6-jre), RXTX
Java Communication library (librxtx-java) and for uploading programs (avrdude): sudo
apt-get install openjdk-6-jre/sun-java6-jre librxtx-java avrdude
● If you use the USB port to dialog, you should add yourself to the group 'dialout' in order to have
write permissions on that port: sudo usermod -aG dialout <myuser>
○ Other possible required permissions: to send/receive data from a command prompt in
a terminal session user must be member of the uucp group: sudo usermod -aG uucp
<myuser>
● In case you have more than one such device then some udev rules may help avoid confusion:
create a etc/udev/rules.d/09-local.rules file with this entries to creates two softlinks, one called
arduino and one called arduino_$SERIAL where $SERIAL is the serial number of the FT232R.
○ SUBSYSTEMS=="usb", ATTRS{product}=="FT232R USB UART", ATTRS{idProduct}
=="6001", ATTRS{idVendor}=="0403", SYMLINK+="arduino arduino_$attr{serial}"
○ SUBSYSTEMS=="usb", ATTRS{product}=="ARDUINO UNO", ATTRS{idProduct}
=="6001", ATTRS{idVendor}=="0403", SYMLINK+="arduino arduino_uno_$attr{serial}"
● If you have brltty installed (the default on recent versions of Ubuntu), you'll need to remove it: sudo
apt-get remove brltty
● Download the latest Arduino Linux distribution from: http://www.arduino.cc/en/Main/Software. Copy/
extract these files to a directory (or your desktop) and Run the "arduino" script.

References:
● http://www.arduino.cc/playground/Linux/Ubuntu
● http://www.arduino.cc/playground/Learning/Linux
● http://www.arduino.cc/playground/Linux/Udev
● http://www.arduino.cc/cgi-bin/yabb2/YaBB.pl?num=1215915613
