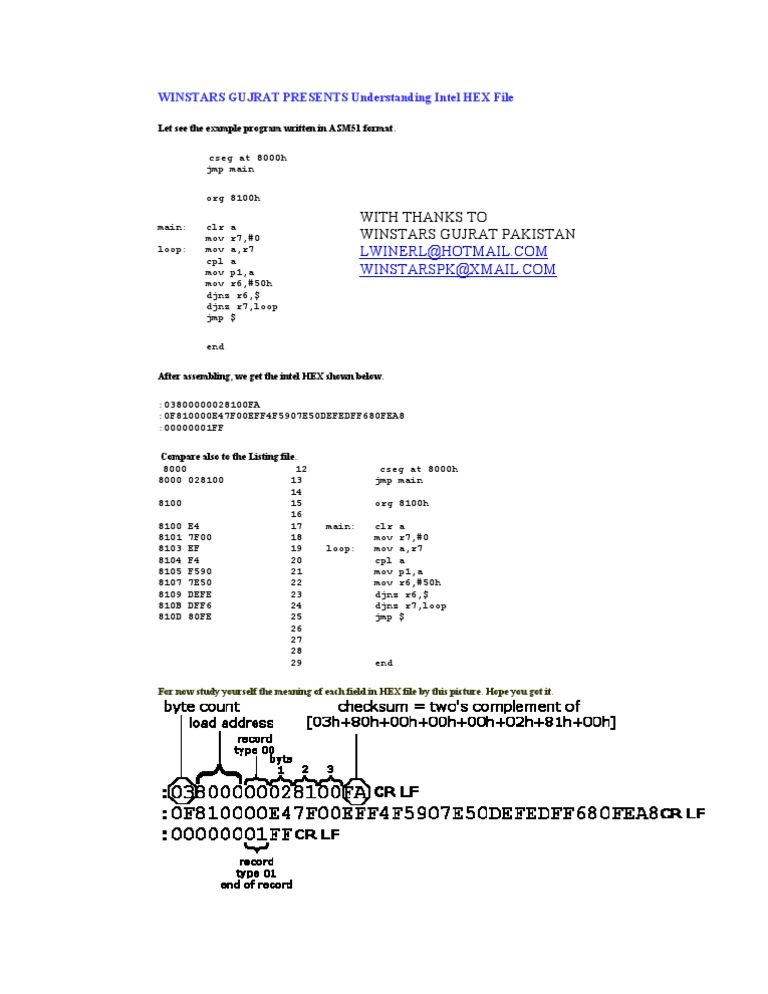

WINSTARS GUJRAT PRESENTS Understanding Intel HEX File

Let see the example program written in ASM51 format.

cseg at 8000h
jmp main

org 8100h

WITH THANKS TO
main: clr a
mov r7,#0 WINSTARS GUJRAT PAKISTAN
loop: mov a,r7
cpl a
LWINERL@HOTMAIL.COM
mov p1,a WINSTARSPK@XMAIL.COM
mov r6,#50h
djnz r6,$
djnz r7,loop
jmp $

end

After assembling, we get the intel HEX shown below.

:03800000028100FA
:0F810000E47F00EFF4F5907E50DEFEDFF680FEA8
:00000001FF

Compare also to the Listing file.

8000 12 cseg at 8000h
8000 028100 13 jmp main
14
8100 15 org 8100h
16
8100 E4 17 main: clr a
8101 7F00 18 mov r7,#0
8103 EF 19 loop: mov a,r7
8104 F4 20 cpl a
8105 F590 21 mov p1,a
8107 7E50 22 mov r6,#50h
8109 DEFE 23 djnz r6,$
810B DFF6 24 djnz r7,loop
810D 80FE 25 jmp $
26
27
28
29 end

For now study yourself the meaning of each field in HEX file by this picture. Hope you got it.
