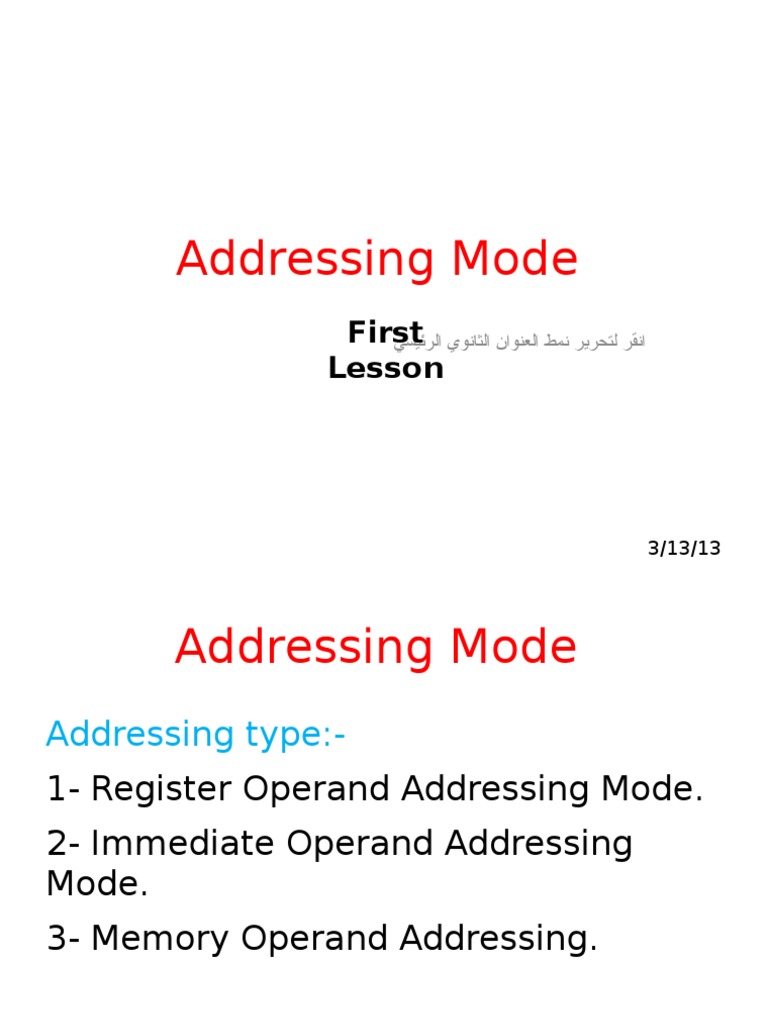

    Addressing Mode

    First Lesson

    31/31/3

    Addressing Mode
    Addressing type:1- Register Operand Addressing Mode. 2- Immediate Operand Addressing Mode. 3- Memory Operand Addressing.

    3/13/13

    Register Operand Addressing Mode

    Before Executi on

    After Executio n

    Address Instruction

    Memory content

    01000 MOV AX , BX 01001 01002 next ins.

    8B C3 XX

    3/13/13

    Immediate Operand Addressing Mode

    Before Executi on

    After Executio n

    Address Instruction

    Memory content

    01000 AX , 15h 01001 ins. 01002

    B0 15 XX

    MOV

    next

    3/13/13

    Memory Operand Addressing

    Direct Addressing mode. Register indirect addressing mode. Base Addressing mode. Indexed Addressing mode. Base Indexed Addressing mode .

    3/13/13

    Direct Addressing Mode PA= Segment(CS,DS,SS,ES) : Direct address

    Before Executi on

    After Executio n

    Address Instruction 01000 [1234H] 01001 01002 01003 ins. 01004 . . 02000 .

    Memory 8B 0E 34 12 xx next MOV CX ,

    xx

    3/13/13

    Register indirect addressing mode


    PA= Segment(CS,DS,SS,ES) : InDirect address(BX,BP,SI,DI)

    EX: MOV AX , [SI] SI=1234 ,DS=0200 PH=DS:SI =2000+1234 = 03234

    3/13/13

    Base Addressing mode.

    PA= Segment(CS,DS,SS,ES) : Base MOV [BX] (BX,BP) +(displacement) +1234H,AL BX=1000 ,DS= 0200 PH=DS:BX+ Displacement PH= 2000+1000+1234 = 4234
    3/13/13

    Indexed Addressing Mode


    PA= Segment(CS,DS,SS,ES) : Index ( SI , DI) + Displacement EX: MOV AL , [SI] + 1234H SI=2000 ,DS=0200 PH=2000 +2000+1234= 5234

    3/13/13

    Base Indexed Addressing mode


    PH= Segment(CS,DS,SS,ES) : Base (BX,BP) +Index ( SI , DI) + Displacement

    EX: MOV AH,[BX][SI]+1234H DS=0200 BX=1000 SI=2000 PH=2000 + 1000 + 2000 + 1234 =6234

    3/13/13

    REVIEW PROBLEMS
    Identify the addressing modes used for source and the destination operand in the CS=0A00 DS=0B00 instruction that SI=0100 follow, BX 0300 DI=0200 and =compute the physical address . A - MOV AL , BL

    B - MOV AX,0FFH C - MOV [DI] , AX D - MOV DI,[SI] E - MOV [BX] + 0400H , CX


    3/13/13

    Answers
    A - source: register Destination :register B - source: Immediate Destination :register C- source: register Destination : index PH=DS:DI = B200 D- source: index PH=DS:SI= B100 3/13/13
