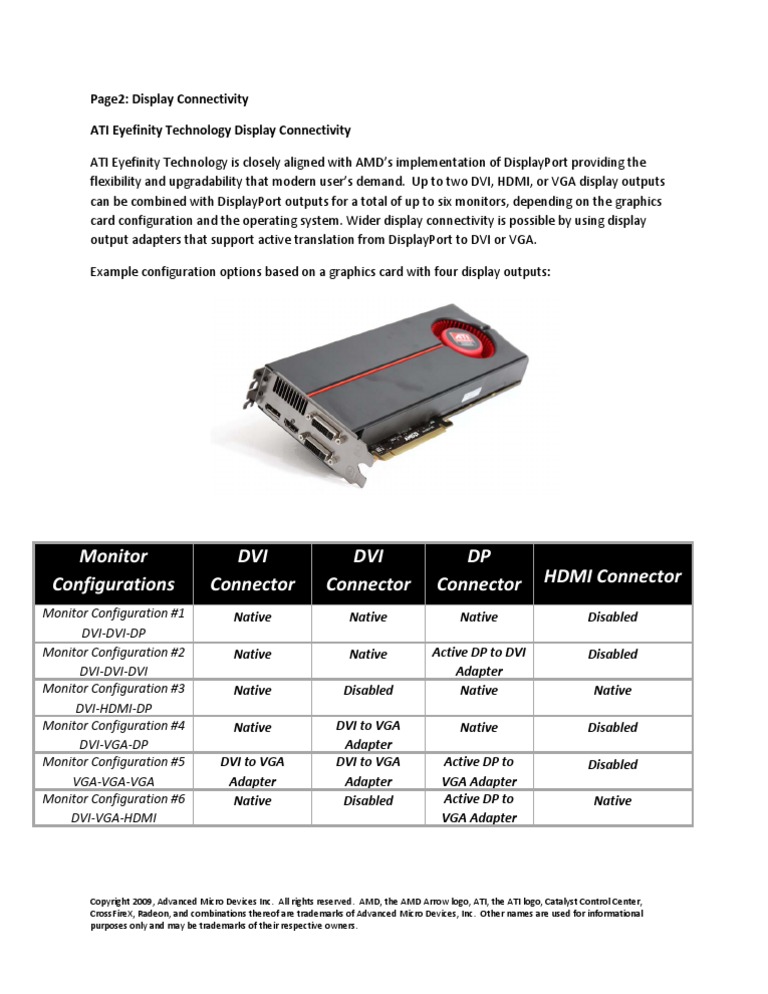

Page2: Display Connectivity ATI Eyefinity Technology Display Connectivity ATI Eyefinity Technology is closely aligned with AMDs

implementation of DisplayPort providing the flexibility and upgradability that modern users demand. Up to two DVI, HDMI, or VGA display outputs can be combined with DisplayPort outputs for a total of up to six monitors, depending on the graphics card configuration and the operating system. Wider display connectivity is possible by using display output adapters that support active translation from DisplayPort to DVI or VGA. Example configuration options based on a graphics card with four display outputs:

Monitor Configurations
Monitor Configuration #1 DVI-DVI-DP Monitor Configuration #2 DVI-DVI-DVI Monitor Configuration #3 DVI-HDMI-DP Monitor Configuration #4 DVI-VGA-DP Monitor Configuration #5 VGA-VGA-VGA Monitor Configuration #6 DVI-VGA-HDMI

DVI Connector
Native Native Native Native DVI to VGA Adapter Native

DVI Connector
Native Native Disabled DVI to VGA Adapter DVI to VGA Adapter Disabled

DP Connector
Native Active DP to DVI Adapter Native Native Active DP to VGA Adapter Active DP to VGA Adapter

HDMI Connector
Disabled Disabled Native Disabled Disabled Native
