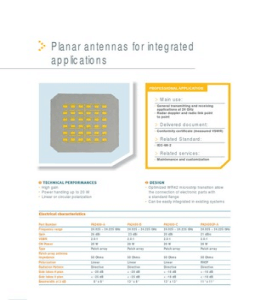

    > Planar antennas for integrated

    applications
    PROFESSIONAL APPLICATION

    > Main use:


    General transmitting and receiving applications at 24 GHz Radar doppler and radio link point to point

    > Delivered document:


    Conformity certicate (measured VSWR)

    > Related Standard:


    IEC-68-2

    > Related services:


    Maintenance and customization

    TECHNICAL PERFORMANCES
    High gain Power handling up to 20 W Linear or circular polarization

    DESIGN
    Optimized WR42 microstrip transition allow the connection of electronic parts with a standard ange Can be easily integrated in existing systems

    Electrical characteristics
    Part Number Frequency range Gain VSWR CW Power Type Patch array antenna Impedance Polarization Radiation Pattern Side lobes H plan Side lobes V plan Beamwidth at 3 dB PA2400-A 24.025 24.225 GHz 26 dBi 2.0:1 20 W Patch array 50 Ohms Linear Directive < -20 dB < -25 dB 8 x 8 PA2400-B 24.025 24.225 GHz 23 dBi 2.0:1 20 W Patch array 50 Ohms Linear Directive < -20 dB < -25 dB 13 x 8 PA2400-C 24.025 24.225 GHz 20 dBi 2.0:1 20 W Patch array 50 Ohms Linear Directive < -16 dB < -18 dB 13 x 13 PA2400CP-A 24.025 24.225 GHz 21 dBic 2.0:1 20 W Patch array 50 Ohms RHCP Directive < -16 dB < -18 dB 11 x 11

    56 Jamming & Telecommunication
