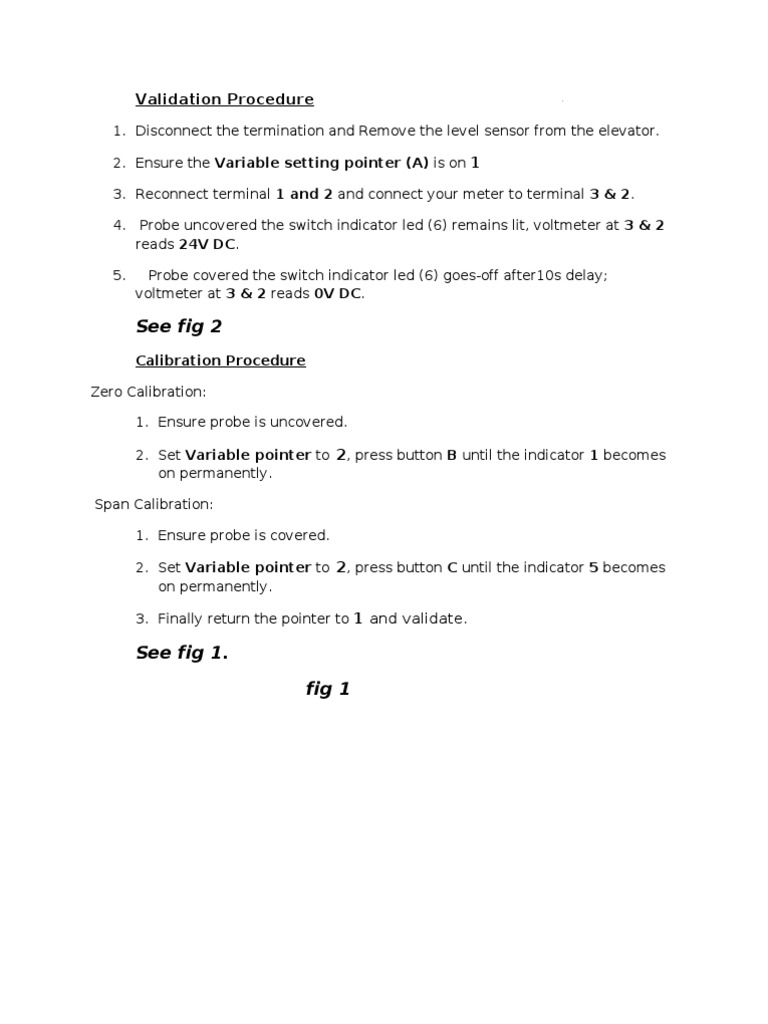

Validation Procedure

1. Disconnect the termination and Remove the level sensor from the elevator. 2. Ensure the Variable setting pointer (A) is on 1 3. Reconnect terminal 1 and 2 and connect your meter to terminal 3 & 2. 4. 5. Probe uncovered the switch indicator led (6) remains lit, voltmeter at 3 & 2 reads 24V DC. Probe covered the switch indicator led (6) goes-off after10s delay; voltmeter at 3 & 2 reads 0V DC.

See fig 2
Calibration Procedure Zero Calibration: 1. Ensure probe is uncovered. 2. Set Variable pointer to 2, press button B until the indicator 1 becomes on permanently. Span Calibration: 1. Ensure probe is covered. 2. Set Variable pointer to 2, press button C until the indicator 5 becomes on permanently. 3. Finally return the pointer to 1 and validate.

See fig 1. fig 1

fig 2 multi-meter

Sensor Probe

24V from DCS DI input (Channel 1) port1 from DCS

0V

Return lead to DCS DI input (Channel1) port2 Note: Probe covered High capacitance Probe Uncovered Low capacitance Emitter Low Resistance High Resistance 1 +24V DC Base

Input Signal Capacitance Probe

PNP
Collector

Xc =1/wC

(Body of the bucket Elevator or sensor) Earth 3
