Orthographic Projection Multi-View Drawing

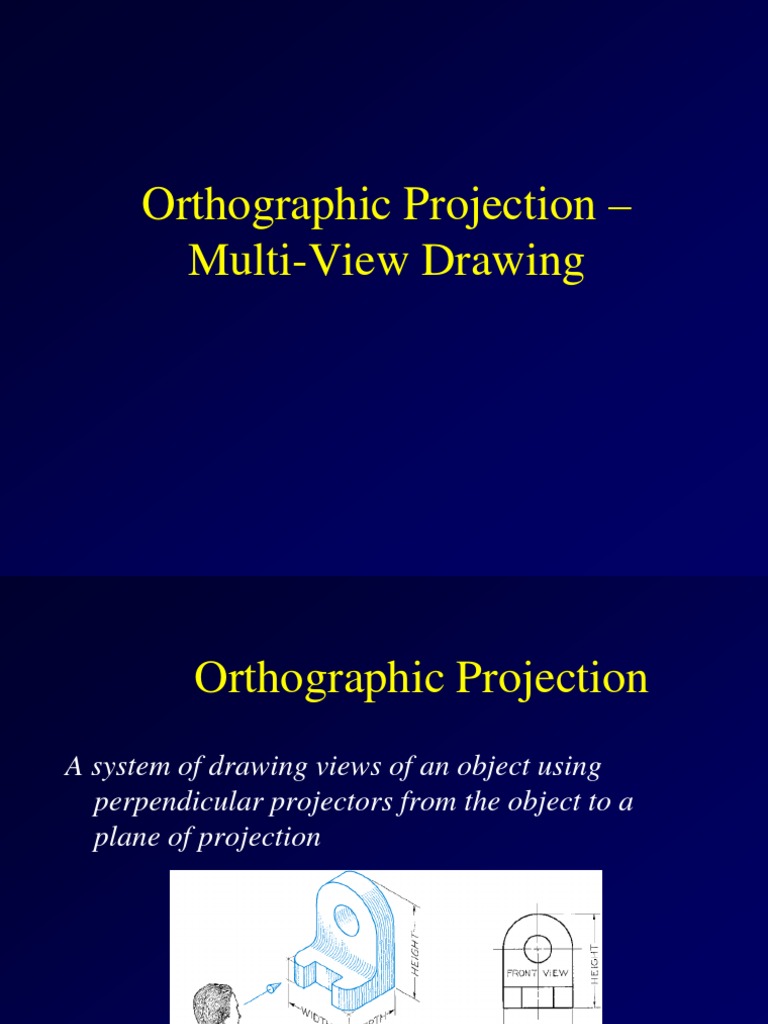

Orthographic Projection
A system of drawing views of an object using perpendicular projectors from the object to a plane of projection

Revolving an Object to Produce the Six Basic Views

Projection of an Object

The Glass Box

Imagine that the object you are going to draw is positioned inside a glass box, so that the large flat surfaces of the object are parallel to the walls of the box. From each point on the object, imagine a ray, or projector perpendicular to the wall of the box forming the view of the object on that wall or projection plane.

The Glass Box

Unfolding the Glass Box

The Six Basic Views

The Standard Arrangement of Views

TOP LEFT FRONT RIGHT BOTTOM REAR

Why must views be arranged so that they align?

To make it possible for someone to interpret the drawing.

Transferring Dimensions

Using a Miter Line to Transfer Depth

1. Draw miter line at 45 degrees at a convenient distance to produce the desired view.

2.

Sketch light lines projecting depth locations for points to miter line and then down into side view as shown.

3.

Project additional points, surface by surface.

4.

Draw the view locating each vertex of the surface on the projection and miter line.

Symbols for 1st & 3rd Angle Projection

Third angle projection is used in the U.S., and Canada

Other Visualization Tools

Number vertices in different views of multiview and isometric drawing Practice

Multiview Sketching
Represents a 3-D object with a series of 2-D views in contrast to pictorials which show all three dimensions in a single view Also called orthographic projection

Multiview Drawing

Pictorial

Parallel projection
Preserves true relationship between features
Lines that are parallel on the object are parallel on the drawing

Parallel versus Perspective Projection

Parallel

Parallel

 Projection planes:

Projection Planes versus Views

Object formed from projection lines projected perpendicularly onto a projection plane Planes: Horizontal, frontal, and profile Each projection plane is perpendicular to adjacent projection planes

Principle views
The object is rotated 90 degrees about the horizontal or vertical axis to give six principle views (top, bottom, front, rear, left, and right side) Common views: top, front, and right side

Only use Necessary Views

One view drawings

Sphere (Football)

Two view drawings

Cylindrical parts Show the circular and rectangular view

Three view drawings

Usually sufficient for all other drawings Top, front, and right side view

Orientation and Placement of Views

The most descriptive view should be selected as the front view The natural orientation of the part should be preserved if possible Views must be aligned
Top view above front view Right view to the right of front view

Hidden lines
Represented with dashed lines Precedence of lines (visible, hidden, center) Views should be selected to minimize the use of hidden lines most descriptive view should be selected as the front view

Fold Lines
Represents a 90 degree fold between views Generally not shown on engineering drawings except when views other than the principle views (auxiliary views) are used.

Terminology to Relate Views

Adjacent view
A view that is separated by a fold line The top view is an adjacent view to the front view A view that is between two adjacent views The front view is the central view of the top, front, and right side view Two views that are adjacent to a central view The top and right side view are related views since they are both adjacent to the front view

Central View

Related views

Constructing a New View

2 1

The top and front views of a surface are shown The fold line represents a 3 90 degree fold between the views Parallel projection lines 3 are perpendicular to the fold line

Constructing a New View

2 A vertical fold line is drawn at an arbitrary distance from the front view Parallel projection lines are drawn from each vertex The common depth between the top and side view is used to locate each vertex on the projection lines 1 1 3 2 3 2

1 3

Sketching Allows for the Quick Translation of Thoughts to Paper

Commit thoughts to paper before you lose an idea Avoid the of use mechanical tools (drawing tools are helpful for beginners) Does not need to be an exact representation
objects may be simplified parts may be missing

Avoid erasing
as new ideas are developed make new sketches start with light lines and then darken with darker lead or heavier strokes

Summary
The six standard views are often thought of as produced from an unfolded glass box. Distances can be transferred or projected from one view to another. Only the views necessary to fully describe the object should be drawn.
