Standard Temporary Silt Fence Guidelines

This document provides specifications for installing a standard temporary silt fence. It specifies that the fence fabric must be installed to the second wire from the top and between 10-12.5 gauge. The silt fence is always required to have a woven wire fabric and must be properly entrenched with a minimum 32" width and 26" height. Stone anchoring is needed when the silt fence is protecting a catch basin and must be at least 16" above grade and installed at a 60-45 degree angle as directed by the engineer.

Uploaded by

jonbelza
Copyright
© Attribution Non-Commercial (BY-NC)
We take content rights seriously. If you suspect this is your content, claim it here.
Available Formats
Download as PDF, TXT or read online on Scribd
61 views1 page

Standard Temporary Silt Fence Guidelines

This document provides specifications for installing a standard temporary silt fence. It specifies that the fence fabric must be installed to the second wire from the top and between 10-12.5 gauge. The silt fence is always required to have a woven wire fabric and must be properly entrenched with a minimum 32" width and 26" height. Stone anchoring is needed when the silt fence is protecting a catch basin and must be at least 16" above grade and installed at a 60-45 degree angle as directed by the engineer.

Uploaded by

jonbelza
Copyright
© Attribution Non-Commercial (BY-NC)
We take content rights seriously. If you suspect this is your content, claim it here.
Available Formats
Download as PDF, TXT or read online on Scribd

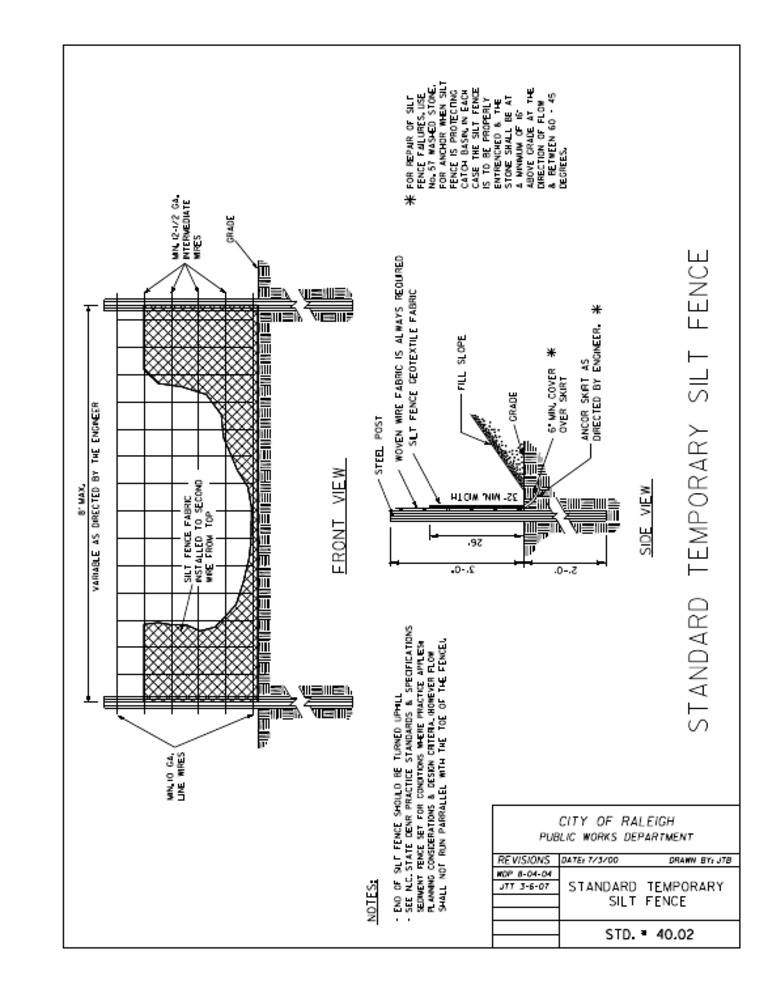

8 MAX.

VARIABLE AS DIRECTED BY THE ENGINEER

MIN. 10 GA. MIN. 12-1/2 GA. SILT FENCE FABRIC INSTALLED TO SECOND WIRE FROM TOP WIRES INTERMEDIATE

LINE WIRES

GRADE

FRONT VIEW

NOTES:
STEEL POST WOVEN WIRE FABRIC IS ALWAYS REQUIRED SILT FENCE GEOTEXTILE FABRIC
FOR REPAIR OF SILT FENCE FAILURES, USE No. 57 WASHED STONE. FOR ANCHOR WHEN SILT FENCE IS PROTECTING

- END OF SILT FENCE SHOULD BE TURNED UPHILL

- SEE N.C. STATE DENR PRACTICE STANDARDS & SPECIFICATIONS

SEDIMENT FENCE SET FOR CONDITIONS WHERE PRACTICE APPLIES;

*
FILL SLOPE

PLANNING CONSIDERATIONS & DESIGN CRITERIA. (HOWEVER FLOW

SHALL NOT RUN PARRALLEL WITH THE TOE OF THE FENCE).

3-0"

CATCH BASIN. IN EACH CASE THE SILT FENCE IS TO BE PROPERLY ENTRENCHED & THE

26"

32" MIN. WIDTH

GRADE

STONE SHALL BE AT A MINIMUM OF 16" ABOVE GRADE AT THE DIRECTION OF FLOW

6" MIN. COVER OVER SKIRT ANCOR SKIRT AS

2-0"

*
DIRECTED BY ENGINEER.

& BETWEEN 60 - 45 DEGREES.

*
SIDE VIEW

SILT FENCE

STANDARD TEMPORARY

STD. # 40.02

STANDARD TEMPORARY SILT FENCE
