VENTILATION

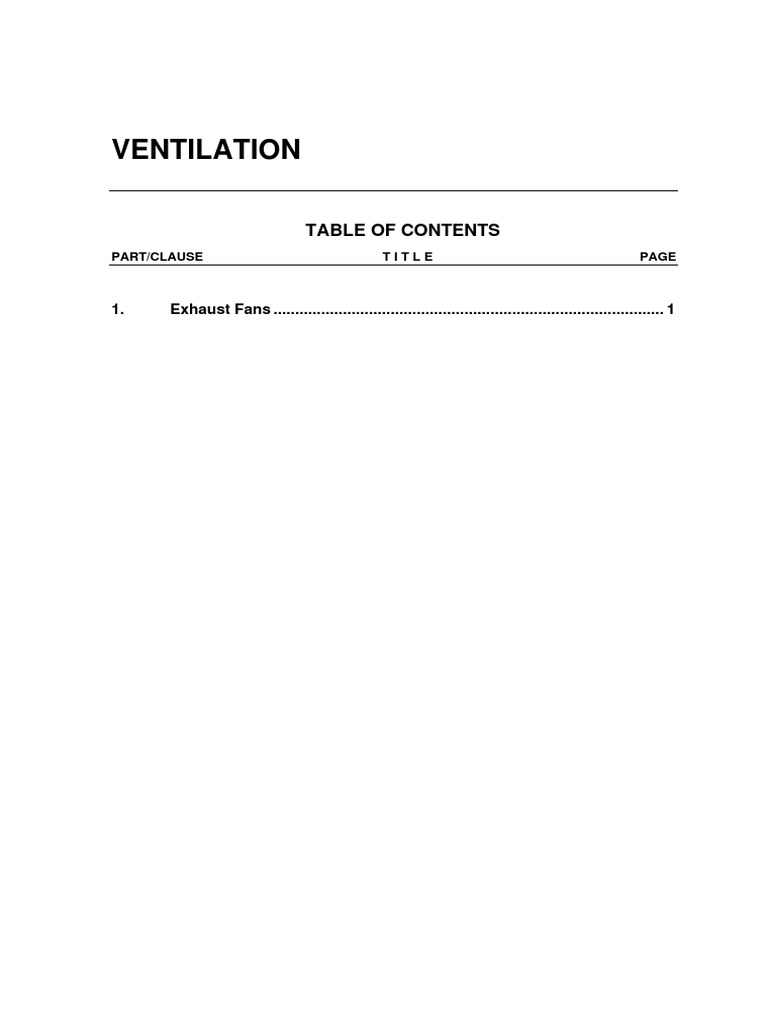

TABLE OF CONTENTS
PART/CLAUSE TITLE PAGE

1.

Exhaust Fans .......................................................................................... 1

Construction of Garden for Qatar Green Center at AL MARKHIA

SPECIFICATIONS

VENTILATION

1.

EXHAUST FANS General Exhaust fans shall be supplied and installed by the Contractor as shown on the drawings. Capacity, type and rating of the fans shall be as indicated in the schedule. The fan motors and switches shall be in accordance with this specification regarding electrical works. Fixing details shall be in accordance with manufacturers recommendations. Roof Extract Fans Single (Toilets) The fan unit shall comprise of a fan assembly complete with motors and drives mounted on a heavy duty unit base plate by anti-vibration mountings. The fans shall be direct/belt driven with double inlet forward curved centrifugal impellers running on two life-long lubricated bearings. The fan unit shall be fitted with gravity shutters to prevent air blow back when not in use. The fan unit electric motors shall be manufactured in accordance with BS 5000 and be of the shaded pole or capacitor start and run type suitable for an electrical supply of 240 volts, single phase, 50 Hz and capable of operating in ambient conditions as described earlier. The fan unit shall be prewired with switches and isolators to a single terminal box on the casing. The unit casing shall be constructed from aluminum alloy with centrally positioned inlet spigot and access panel to allow ease of service.

END OF SECTION

BMD 09/10/16

Page No.1
