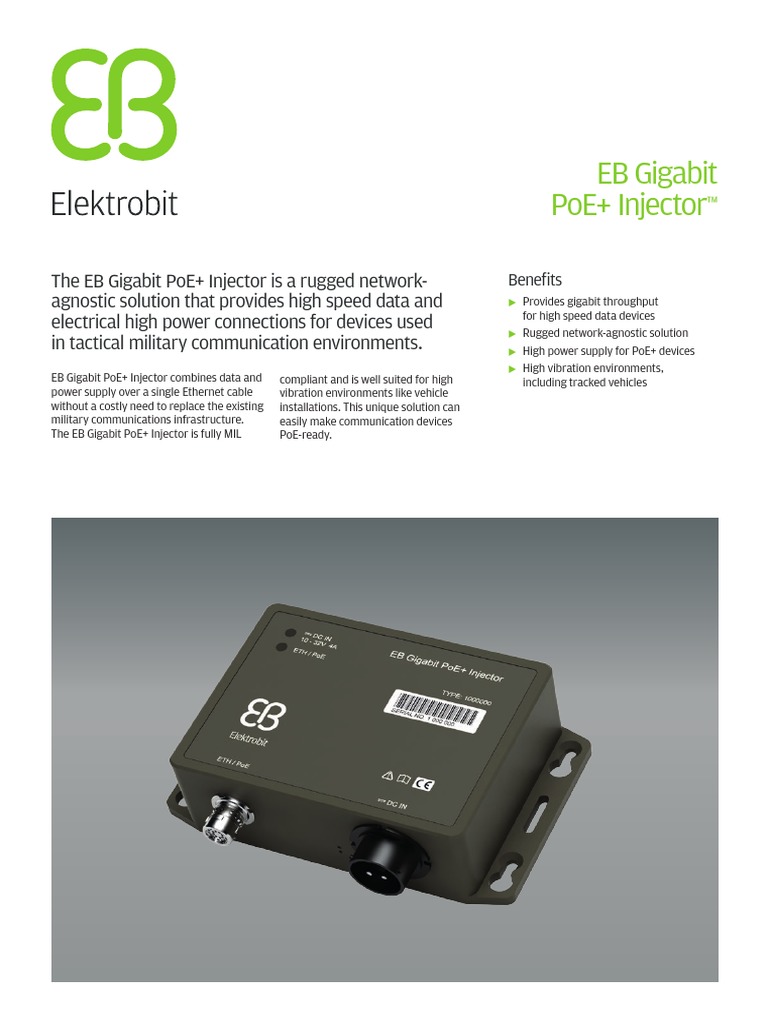

EB Gigabit
PoE+ Injector
The EB Gigabit PoE+ Injector is a rugged networkagnostic solution that provides high speed data and
electrical high power connections for devices used
in tactical military communication environments.
EB Gigabit PoE+ Injector combines data and
power supply over a single Ethernet cable
without a costly need to replace the existing
military communications infrastructure.
The EB Gigabit PoE+ Injector is fully MIL
compliant and is well suited for high
vibration environments like vehicle
installations. This unique solution can
easily make communication devices
PoE-ready.
Benefits
XXProvides gigabit throughput
for high speed data devices
XXRugged network-agnostic solution
XXHigh power supply for PoE+ devices
XXHigh vibration environments,
including tracked vehicles
EB Gigabit PoE+ Injector
Interfaces
Certificates and standards
XX10/100/1000 Base-T Dual Ethernet
XXMIL-STD-810G
802.3at Type 2 (802.3af)
High temperature: Test method 501.5 Procedure I, II and III
10/100/1000 Mixed DC & Data, Mode A configuration
Low temperature: Test method 502.5, Procedure I and II
Connector: Bernier CMA 7W22PM (22-pin)
Temperature shock: Test method 503.5 Procedure I-C
PoE: Maximum output power delivered 30W, 600mA @ 5057 Vdc
Solar Radiation: Test method 505.5 Procedure I and II
Single connector interface for Ethernet and PoE
Humidity: Test method 507.5 Procedure II
XXDC input
Input voltage range 1032 VDC
Connector: Amphenol 62GB-5024-1402PB
Leakage (immersion): Test method 512.5, procedure I
Vibration: Test method 514.6, Category 20:
Ground vehicles-Ground mobile, Procedure I: General vibration
Shock: Test method 516.6 procedure I and IV
XXMIL-STD-461F Ground, Army
Technical specification
CE102, CS101, CS114, CS115, CS116, RE102, RS103
XXOperating temperature range 40 C/+55 C
XXMIL-STD-1275D (Vehicle equipment, characteristics of 28Volt DC)
XXDimensions L 146 W 90 H 43 mm
XXCE-EMC:
XXWeight 750 g
IEC6100-6-2 (ESD, EFT, Surge, Conducted Susceptibility,
Radiated Susceptibility)
IEC61000-6-3 (Radiated Emission, Conducted Emission)
XXEU REACH Compliance
XXEU RoHS Compliance
XXISO9001 and AQAP 2110 for quality
