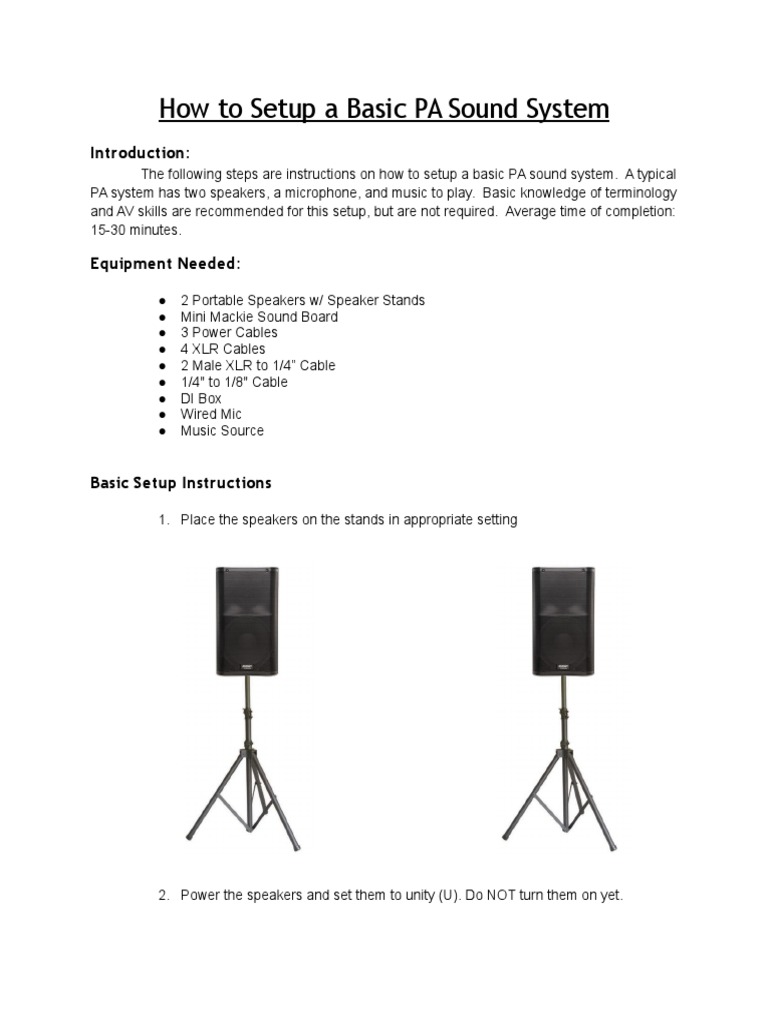

Introduction:
The following steps are instructions on how to setup a basic PA sound system. A typical
PA system has two speakers, a microphone, and music to play. Basic knowledge of terminology
and AV skills are recommended for this setup, but are not required. Average time of completion:
15-30 minutes.
Equipment Needed:
2. Power the speakers and set them to unity (U). Do NOT turn them on yet.
3. Place the sound board in an appropriate location and power it. Do NOT turn them
on yet.
4. Plug each male XLR to 1/4 into the female side of the XLR cables.
5. Run cables
a. 1/4 XLR from L board output to L speaker input
6. Plug mic into XLR cable. Plug the other end of the XLR into one of the board
inputs.
7. Plug XLR cable into DI box. Plug the other end of the XLR into the other board
input.
10. Power the soundboard and speakers. Warning: Be sure all levels on the
soundboard are brought down.
Troubleshooting
Warning/Caution
Never power speakers if auto is currently being sent.
Avoid unplugging inputs if the levels are still up.
When powering on the soundboard, make sure all levels are down. If levels are
too high it could blow out the speakers.
Never bring the mic in front of the speakers if it is powered.
