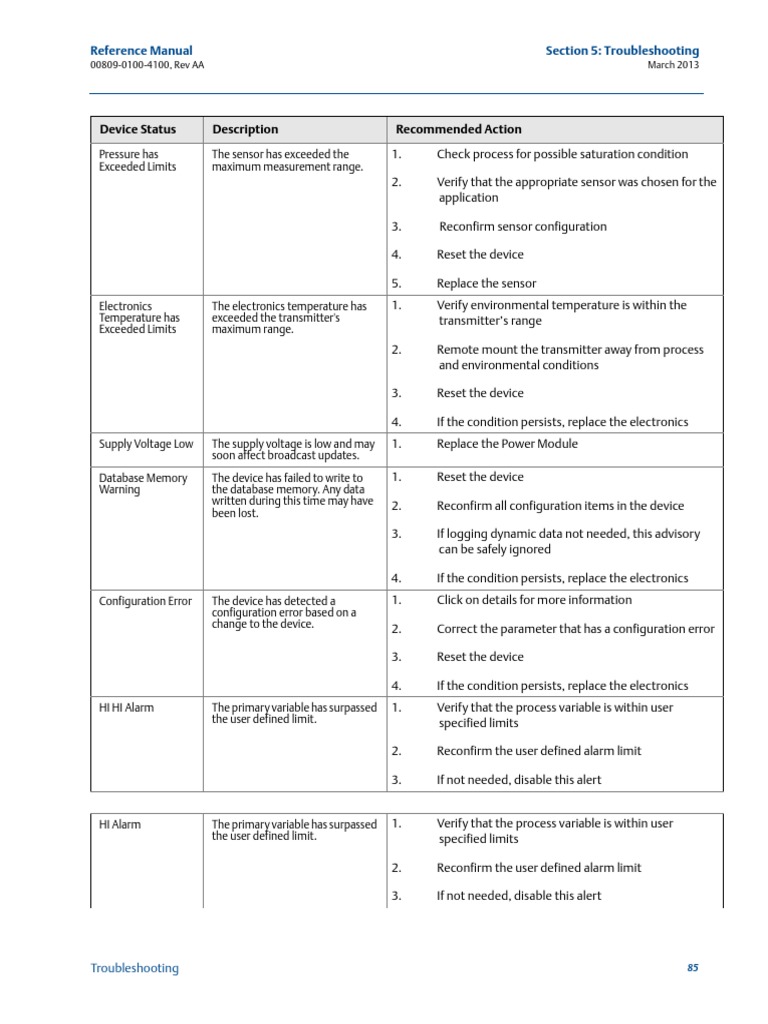

Reference Manual

Section 5: Troubleshooting

00809-0100-4100, Rev AA

March 2013

Device Status

Description

Pressure has
Exceeded Limits

The sensor has exceeded the


maximum measurement range.

Electronics
Temperature has
Exceeded Limits

The electronics temperature has


exceeded the transmitter's
maximum range.

Recommended Action
1.

Check process for possible saturation condition

2.

Verify that the appropriate sensor was chosen for the


application

3.

Reconfirm sensor configuration

4.

Reset the device

5.

Replace the sensor

1.

Verify environmental temperature is within the


transmitters range

2.

Remote mount the transmitter away from process


and environmental conditions

3.

Reset the device

4.

If the condition persists, replace the electronics

Supply Voltage Low

The supply voltage is low and may


soon affect broadcast updates.

1.

Replace the Power Module

Database Memory
Warning

The device has failed to write to


the database memory. Any data
written during this time may have
been lost.

1.

Reset the device

2.

Reconfirm all configuration items in the device

3.

If logging dynamic data not needed, this advisory


can be safely ignored

4.

If the condition persists, replace the electronics

1.

Click on details for more information

2.

Correct the parameter that has a configuration error

3.

Reset the device

4.

If the condition persists, replace the electronics

1.

Verify that the process variable is within user


specified limits

2.

Reconfirm the user defined alarm limit

3.

If not needed, disable this alert

1.

Verify that the process variable is within user


specified limits

2.

Reconfirm the user defined alarm limit

3.

If not needed, disable this alert

Configuration Error

HI HI Alarm

HI Alarm

Troubleshooting

The device has detected a


configuration error based on a
change to the device.

The primary variable has surpassed


the user defined limit.

The primary variable has surpassed


the user defined limit.

85
