Lab 2: RIP

Task

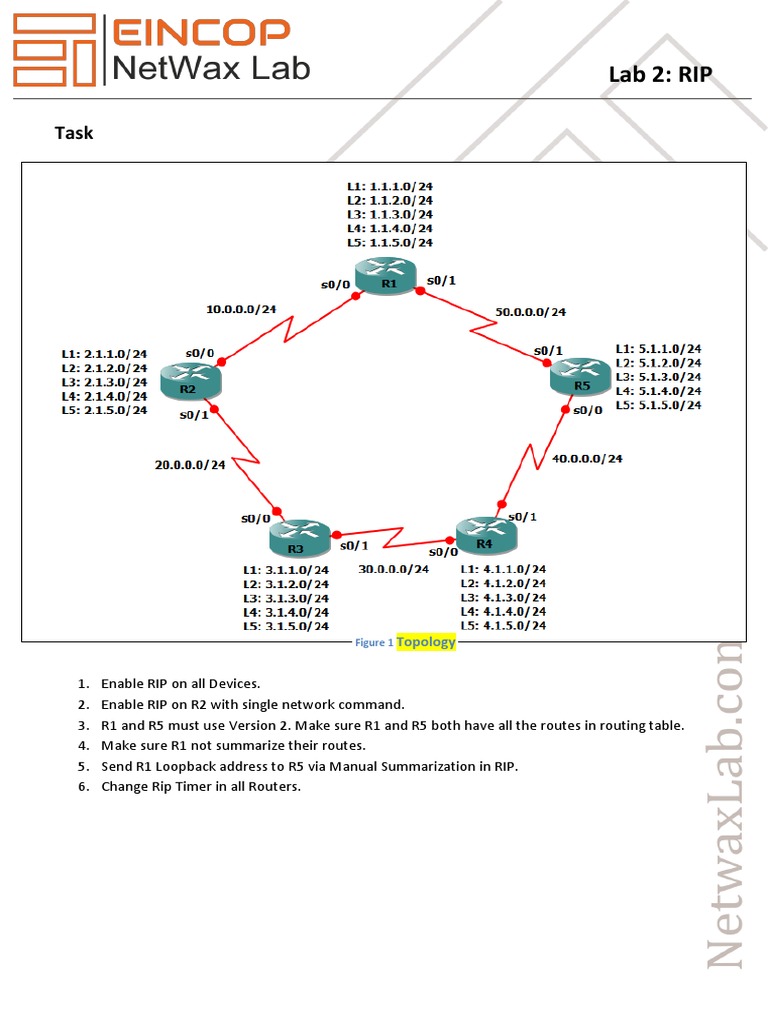

Figure 1 Topology

1.
2.
3.
4.
5.
6.

Enable RIP on all Devices.

Enable RIP on R2 with single network command.
R1 and R5 must use Version 2. Make sure R1 and R5 both have all the routes in routing table.
Make sure R1 not summarize their routes.
Send R1 Loopback address to R5 via Manual Summarization in RIP.
Change Rip Timer in all Routers.

Lab 2: RIP
Solution
IP Addressing
R1
en
config t
hostname R1
interface Loopback1
ip address 1.1.1.1 255.255.255.0
interface Loopback2
ip address 1.1.2.1 255.255.255.0
interface Loopback3
ip address 1.1.3.1 255.255.255.0

interface Loopback4
ip address 1.1.4.1 255.255.255.0
interface Serial0/0
ip address 10.0.0.1 255.255.255.0
no shut
exit
interface Serial0/1
ip address 50.0.0.1 255.255.255.0
no shut
exit
R2
en
config t
hostname R2
interface Loopback1
ip address 2.1.1.1 255.255.255.0

Lab 2: RIP
interface Loopback2
ip address 2.1.2.1 255.255.255.0
interface Loopback3
ip address 2.1.3.1 255.255.255.0
interface Loopback4
ip address 2.1.4.1 255.255.255.0
interface Serial0/0
ip address 10.0.0.2 255.255.255.0
no shut
exit
interface Serial0/1
ip address 20.0.0.2 255.255.255.0
no shut
exit
R3
en
config t
hostname R3
interface Loopback1
ip address 3.1.1.1 255.255.255.0
interface Loopback2
ip address 3.1.2.1 255.255.255.0
interface Loopback3
ip address 3.1.3.1 255.255.255.0
interface Loopback4
ip address 3.1.4.1 255.255.255.0
interface Serial0/0
ip address 20.0.0.3 255.255.255.0
no shut
exit

Lab 2: RIP
interface Serial0/1
ip address 30.0.0.3 255.255.255.0
no shut
exit
R4
en
config t
hostname R4
interface Loopback1
ip address 4.1.1.1 255.255.255.0
interface Loopback2
ip address 4.1.2.1 255.255.255.0
interface Loopback3
ip address 4.1.3.1 255.255.255.0
interface Loopback4
ip address 4.1.4.1 255.255.255.0
interface Serial0/0
ip address 30.0.0.4 255.255.255.0
no shut
exit
interface Serial0/1
ip address 40.0.0.4 255.255.255.0
no shut
exit
R5
en
config t
hostname R5

interface Loopback1
ip address 5.1.1.1 255.255.255.0

Lab 2: RIP
interface Loopback2
ip address 5.1.2.1 255.255.255.0
interface Loopback3
ip address 5.1.3.1 255.255.255.0
interface Loopback4
ip address 5.1.4.1 255.255.255.0
interface Serial0/0
ip address 40.0.0.5 255.255.255.0
no shut
exit
interface Serial0/1
ip address 50.0.0.5 255.255.255.0
no shut
exit

Task 1: Enable RIP on all Devices

R1
router rip
network 1.0.0.0
network 10.0.0.0
network 50.0.0.0
exit
R2 (Task 2 will be done here)
router rip
network 0.0.0.0
exit

Lab 2: RIP
R3
router rip
network 3.0.0.0
network 20.0.0.0
network 30.0.0.0
R4
router rip
network 4.0.0.0
network 30.0.0.0
network 40.0.0.0
R5
router rip
network 5.0.0.0
network 40.0.0.0
network 50.0.0.0

Task 2 already completed above.

Task 3: R1 and R5 must use Version 2. Make sure R1 and R5 both have all the routes in routing
table.

R1
router rip
version 2
int se0/1
ip rip send version 1 2
ip rip receive version 1 2
int s0/0
ip rip send version 1 2
ip rip receive version 1 2
R5
router rip
version 2

int se0/1
ip rip send version 1 2

Lab 2: RIP
ip rip receive version 1 2
int s0/0
ip rip send version 1 2
ip rip receive version 1 2

Task 4: Make sure R1 not summarize their routes.

R1
router rip
ver 2
no auto-summary

Task 5: Send R1 Loopback address to R5 via Manual Summarization in RIP.

R1
int s0/0
ip summary-address rip 1.1.0.0 255.255.248.0
int s0/1
ip summary-address rip 1.1.0.0 255.255.248.0

Task 6: Change Rip Timer in all Routers.

R1
router rip
timers basic 10 10 10 10
exit
R2
router rip
timers basic 10 10 10 10
exit
R3
router rip
timers basic 10 10 10 10
exit
R4

Lab 2: RIP
router rip
timers basic 10 10 10 10
exit
R5
router rip
timers basic 10 10 10 10
exit
