CHAPTER 7 CONTROL AND FIELD INSTRUMENTATION DOCUMENTATION

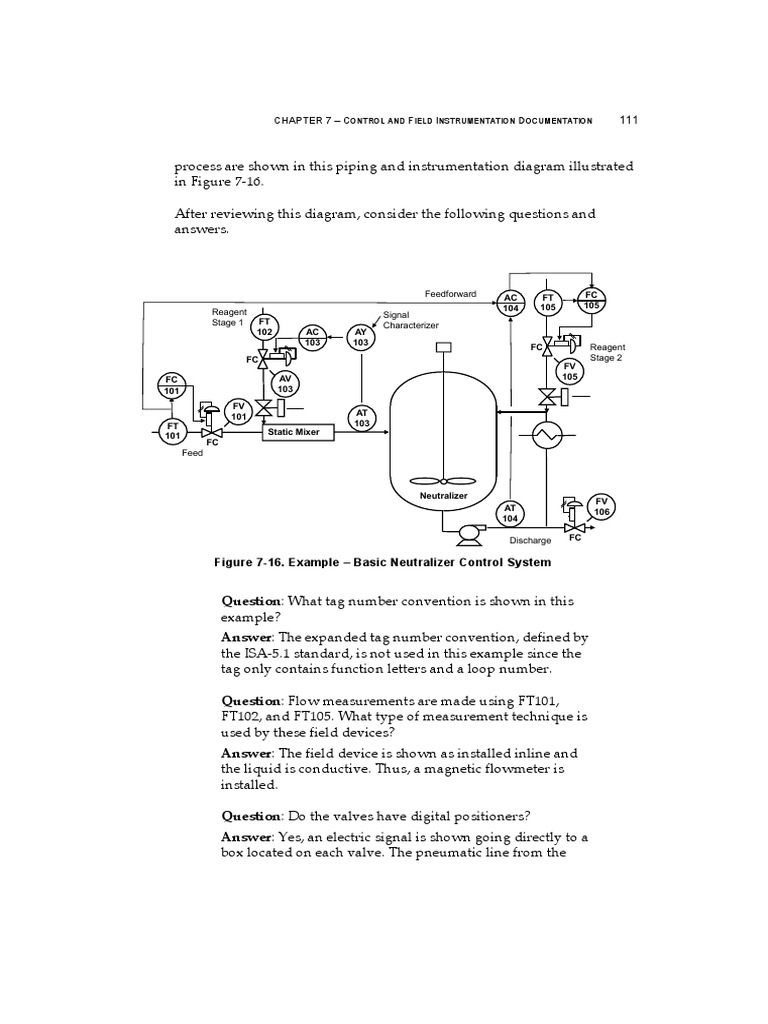

process are shown in this piping and instrumentation diagram illustrated
in Figure 7-16. After reviewing this diagram, consider the following questions and answers.
Figure 7-16. Example Basic Neutralizer Control System
Question: What tag number convention is shown in this
example? Answer: The expanded tag number convention, defined by the ISA-5.1 standard, is not used in this example since the tag only contains function letters and a loop number. Question: Flow measurements are made using FT101, FT102, and FT105. What type of measurement technique is used by these field devices? Answer: The field device is shown as installed inline and the liquid is conductive. Thus, a magnetic flowmeter is installed. Question: Do the valves have digital positioners? Answer: Yes, an electric signal is shown going directly to a box located on each valve. The pneumatic line from the
