1.

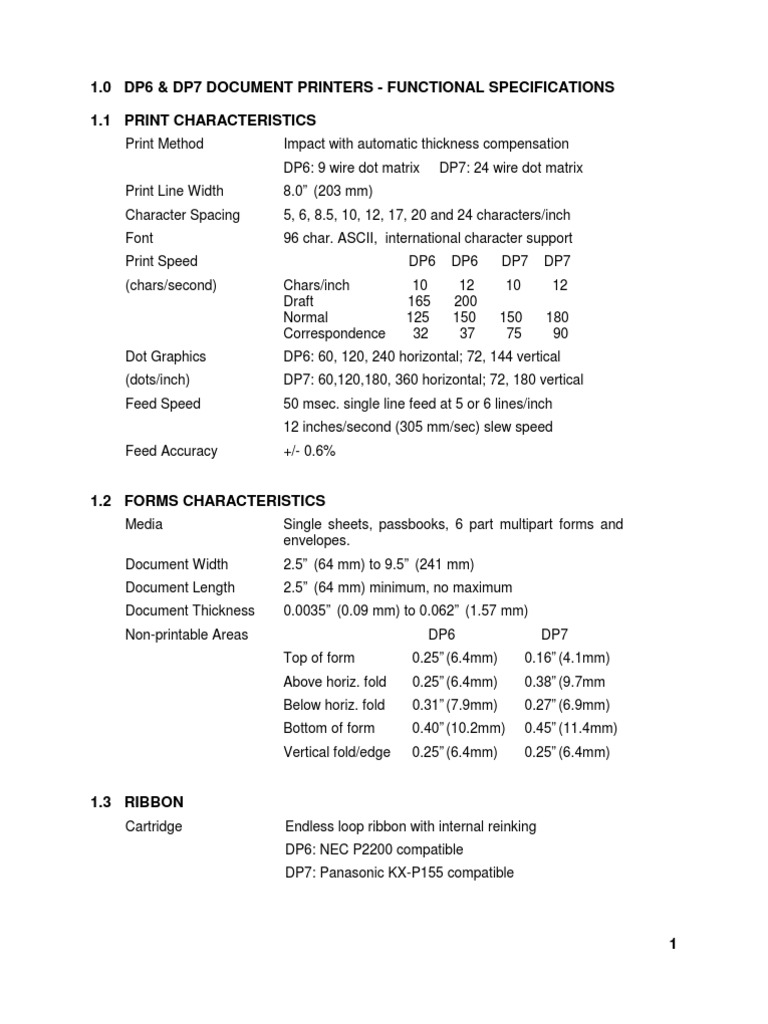

0 DP6 & DP7 DOCUMENT PRINTERS - FUNCTIONAL SPECIFICATIONS

1.1 PRINT CHARACTERISTICS

Print Method Impact with automatic thickness compensation
DP6: 9 wire dot matrix DP7: 24 wire dot matrix
Print Line Width 8.0” (203 mm)
Character Spacing 5, 6, 8.5, 10, 12, 17, 20 and 24 characters/inch
Font 96 char. ASCII, international character support
Print Speed DP6 DP6 DP7 DP7
(chars/second) Chars/inch 10 12 10 12
Draft 165 200
Normal 125 150 150 180
Correspondence 32 37 75 90
Dot Graphics DP6: 60, 120, 240 horizontal; 72, 144 vertical
(dots/inch) DP7: 60,120,180, 360 horizontal; 72, 180 vertical
Feed Speed 50 msec. single line feed at 5 or 6 lines/inch
12 inches/second (305 mm/sec) slew speed
Feed Accuracy +/- 0.6%

1.2 FORMS CHARACTERISTICS

Media Single sheets, passbooks, 6 part multipart forms and
envelopes.
Document Width 2.5” (64 mm) to 9.5” (241 mm)
Document Length 2.5” (64 mm) minimum, no maximum
Document Thickness 0.0035” (0.09 mm) to 0.062” (1.57 mm)
Non-printable Areas DP6 DP7
Top of form 0.25” (6.4mm) 0.16” (4.1mm)
Above horiz. fold 0.25” (6.4mm) 0.38” (9.7mm
Below horiz. fold 0.31” (7.9mm) 0.27” (6.9mm)
Bottom of form 0.40” (10.2mm) 0.45” (11.4mm)
Vertical fold/edge 0.25” (6.4mm) 0.25” (6.4mm)

1.3 RIBBON
Cartridge Endless loop ribbon with internal reinking
DP6: NEC P2200 compatible
DP7: Panasonic KX-P155 compatible

1
1.4 INTERFACE
Standard Serial RS-232, DP6: 1200-9600 baud, 4KB buffer
DP7: 2400-19200 baud, 11KB buffer
Optional RS-232 dual ports or PC parallel port
Command Sets IBM Proprinter/4722, Unisys and Craden
Protocols DTR, Xon/Xoff and Block
Power Input 100-130 or 200-260 VAC, 50-60 Hz, 50 W max.

1.5 PHYSICAL CHARACTERISTICS

Dimensions Width: 14.1” (357mm) Height: 6.3” (160 mm)
Depth: 10.8” (275 mm) operating, 7.8” (197 mm) standby
Weight 18.3 pounds (8.3 kg) + 3.5 pounds (1.6 kg) packing

1.6 ENVIRONMENTAL & STANDARDS

Operating 10 to 40° C, 10 to 90% humidity
Storage -30 to 70°C, 5 to 95% humidity
Standards IEC 950, UL 1950, UL File E91899
FCC 20780 Class A certified, Canadian UL Listed
