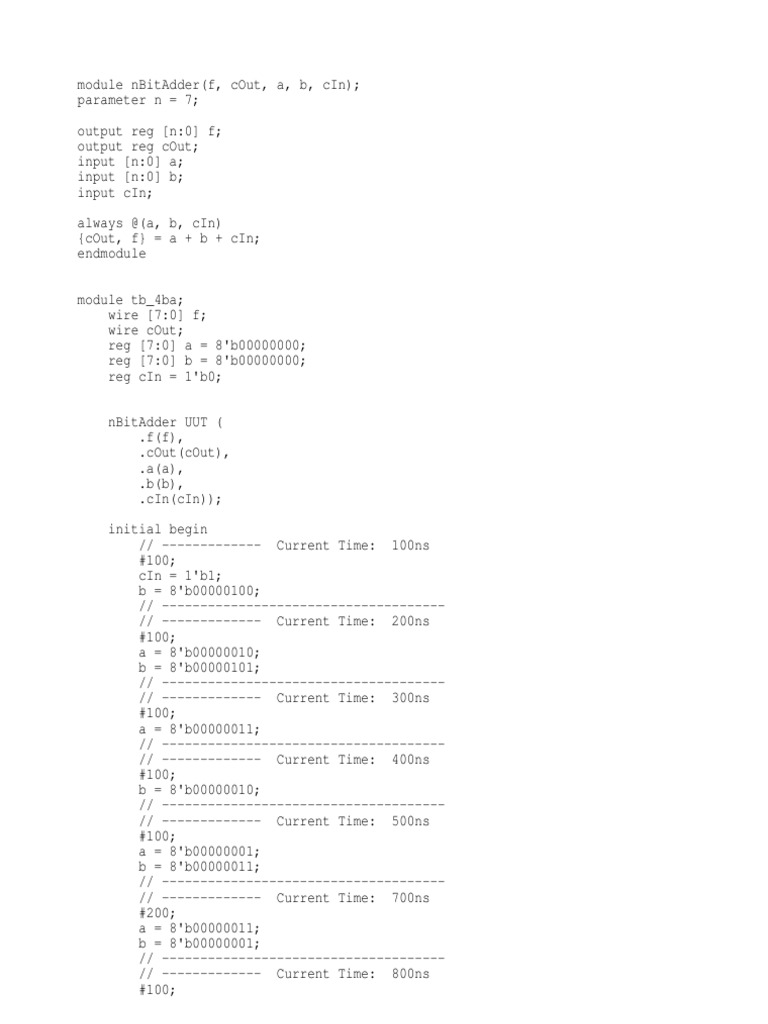

    module nBitAdder(f, cOut, a, b, cIn);

    parameter n = 7;
    output reg [n:0] f;
    output reg cOut;
    input [n:0] a;
    input [n:0] b;
    input cIn;
    always @(a, b, cIn)
    {cOut, f} = a + b + cIn;
    endmodule
    module tb_4ba;
    wire [7:0] f;
    wire cOut;
    reg [7:0] a = 8'b00000000;
    reg [7:0] b = 8'b00000000;
    reg cIn = 1'b0;
    nBitAdder UUT (
    .f(f),
    .cOut(cOut),
    .a(a),
    .b(b),
    .cIn(cIn));
    initial begin
    // ------------- Current Time: 100ns
    #100;
    cIn = 1'b1;
    b = 8'b00000100;
    // ------------------------------------// ------------- Current Time: 200ns
    #100;
    a = 8'b00000010;
    b = 8'b00000101;
    // ------------------------------------// ------------- Current Time: 300ns
    #100;
    a = 8'b00000011;
    // ------------------------------------// ------------- Current Time: 400ns
    #100;
    b = 8'b00000010;
    // ------------------------------------// ------------- Current Time: 500ns
    #100;
    a = 8'b00000001;
    b = 8'b00000011;
    // ------------------------------------// ------------- Current Time: 700ns
    #200;
    a = 8'b00000011;
    b = 8'b00000001;
    // ------------------------------------// ------------- Current Time: 800ns
    #100;

    b = 8'b00000010;
    end
    endmodule
