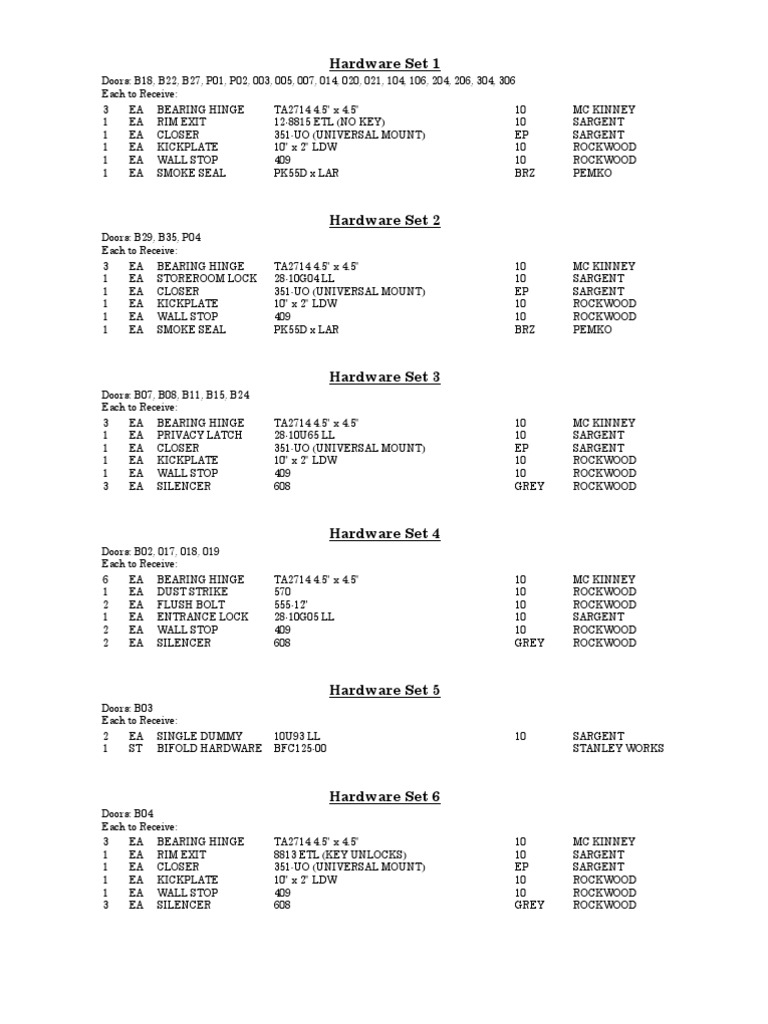

Hardware Set 1

Doors: B18, B22, B27, P01, P02, 003, 005, 007, 014, 020, 021, 104, 106, 204, 206, 304, 306 Each to Receive: 3 1 1 1 1 1 EA EA EA EA EA EA BEARING HINGE RIM EXIT CLOSER KICKPLATE WALL STOP SMOKE SEAL TA2714 4.5" x 4.5" 12-8815 ETL (NO KEY) 351-UO (UNIVERSAL MOUNT) 10" x 2" LDW 409 PK55D x LAR 10 10 EP 10 10 BRZ MC KINNEY SARGENT SARGENT ROCKWOOD ROCKWOOD PEMKO

Hardware Set 2
Doors: B29, B35, P04 Each to Receive: 3 1 1 1 1 1 EA EA EA EA EA EA BEARING HINGE STOREROOM LOCK CLOSER KICKPLATE WALL STOP SMOKE SEAL TA2714 4.5" x 4.5" 28-10G04 LL 351-UO (UNIVERSAL MOUNT) 10" x 2" LDW 409 PK55D x LAR 10 10 EP 10 10 BRZ MC KINNEY SARGENT SARGENT ROCKWOOD ROCKWOOD PEMKO

Hardware Set 3
Doors: B07, B08, B11, B15, B24 Each to Receive: 3 1 1 1 1 3 EA EA EA EA EA EA BEARING HINGE PRIVACY LATCH CLOSER KICKPLATE WALL STOP SILENCER TA2714 4.5" x 4.5" 28-10U65 LL 351-UO (UNIVERSAL MOUNT) 10" x 2" LDW 409 608 10 10 EP 10 10 GREY MC KINNEY SARGENT SARGENT ROCKWOOD ROCKWOOD ROCKWOOD

Hardware Set 4
Doors: B02, 017, 018, 019 Each to Receive: 6 1 2 1 2 2 EA EA EA EA EA EA BEARING HINGE DUST STRIKE FLUSH BOLT ENTRANCE LOCK WALL STOP SILENCER TA2714 4.5" x 4.5" 570 555-12" 28-10G05 LL 409 608 10 10 10 10 10 GREY MC KINNEY ROCKWOOD ROCKWOOD SARGENT ROCKWOOD ROCKWOOD

Hardware Set 5
Doors: B03 Each to Receive: 2 1 EA ST SINGLE DUMMY BIFOLD HARDWARE 10U93 LL BFC125-00 10 SARGENT STANLEY WORKS

Hardware Set 6
Doors: B04 Each to Receive: 3 1 1 1 1 3 EA EA EA EA EA EA BEARING HINGE RIM EXIT CLOSER KICKPLATE WALL STOP SILENCER TA2714 4.5" x 4.5" 8813 ETL (KEY UNLOCKS) 351-UO (UNIVERSAL MOUNT) 10" x 2" LDW 409 608 10 10 EP 10 10 GREY MC KINNEY SARGENT SARGENT ROCKWOOD ROCKWOOD ROCKWOOD

Hardware Set 7
Doors: B06, B26 Each to Receive: 3 1 1 1 1 1 EA EA EA EA EA EA BEARING HINGE RIM EXIT CLOSER KICKPLATE WALL STOP SMOKE SEAL TA2714 4.5" x 4.5" 12-8813 ETL (KEY UNLOCKS) 351-UO (UNIVERSAL MOUNT) 10" x 2" LDW 409 PK55D x LAR 10 10 EP 10 10 BRZ MC KINNEY SARGENT SARGENT ROCKWOOD ROCKWOOD PEMKO

Hardware Set 8
Doors: AA01 Each to Receive: 6 1 1 1 1 2 1 EA ST EA EA EA EA EA SPRING HINGE AUTO FLUSH BOLT COORDINATOR DUST STRIKE ENTRY LOCK BASE STOP SMOKE SEAL 1502 4.5" x 4.5" 1962 1600 x LAR 570 CARD LOCK BY OTHERS 519 PK55D x LAR (ASTRAGAL BY DOOR SUPPLIER) 10B 10B P 10B 10B 10B BRZ MC KINNEY ROCKWOOD ROCKWOOD ROCKWOOD SAFLOK ROCKWOOD PEMKO

Hardware Set 9
Doors: AA02, AA03, AA04, AA07, AA08, AA09, AA11, AA12, AA13, AA14, AA15, BB02, BB03, BB06, BB08, BB09, BB10, BB11, BB12, CC02, CC03, CC04, CC05, CC06, CC07, CC08, CC10, DD02, DD03, DD04, DD05, DD06, DD07, DD09, DD14, DD16, DD17, DD19, DD20, EE03, EE06, EE07, EE08, EE09, EE10, EE11, EE12, FF02, FF03, FF04, FF05, FF06, FF07, FF09, FF10, GG02, GG03, GG04, GG05, GG06, GG07, GG10, GG11, HH02, HH03, HH04, HH05, HH06, HH07, HH10, HH11, JJ04, JJ06, JJ07, JJ08, JJ09, JJ10, JJ11, JJ12, JJ13, JJ14, JJ15, JJ16, JJ17, KK02, KK03, KK04, KK05, KK06, KK07, KK11, KK12, KK14, KK15, KK16, LL01, LL02, LL03, LL07, LL08, LL09, LL10, LL11, LL12, LL13, LL14, LL15, LL16 Each to Receive: 3 1 1 EA EA EA BEARING HINGE PRIVACY LATCH BASE STOP TA2714 4.5" x 4.5" S40D (lever design TBD) 519 10B 613/625 10B MC KINNEY SCHLAGE ROCKWOOD

Hardware Set 10
Doors: AA16, BB04, EE13, FF08, GG08, GG09, KK09, LL05 Each to Receive: 6 2 2 2 EA EA EA EA BEARING HINGE SINGLE DUMMY BASE STOP ROLLER LATCH TA2714 4.5" x 4.5" S170 (lever design TBD) 519 590 10B 613 10B 10B MC KINNEY SCHLAGE ROCKWOOD ROCKWOOD

Hardware Set 11
Doors: BB01, BB07, CC01, CC11, DD01, DD10, DD13, EE01, EE02, FF01, FF11, GG01, GG12, HH01, HH09, JJ01, JJ19, KK01, KK17, LL04, LL06 Each to Receive: 3 1 1 1 EA EA EA EA SPRING HINGE ENTRY LOCK BASE STOP SMOKE SEAL 1502 4.5" x 4.5" CARD LOCK BY OTHERS 519 PK55D x LAR 10B 10B 10B BRZ MC KINNEY SAFLOK ROCKWOOD PEMKO

Hardware Set 12
Doors: BB05, CC09, DD08, DD15, DD18, EE14, HH08, JJ02, JJ03 Each to Receive: 3 1 1 EA EA EA BEARING HINGE PASSAGE LATCH BASE STOP TA2714 4.5" x 4.5" S10D (lever design TBD) 519 10B 613 10B MC KINNEY SCHLAGE ROCKWOOD

Hardware Set 13
Doors: JJ05, KK13 Each to Receive: 6 1 2 1 2 EA EA EA EA EA BEARING HINGE DUST STRIKE FLUSH BOLT PRIVACY LATCH BASE STOP TA2714 4.5" x 4.5" 570 555-12" S40D (lever design TBD) 519 10B 10 10 613 10B MC KINNEY ROCKWOOD ROCKWOOD SCHLAGE ROCKWOOD

Hardware Set 14
Doors: B09, B13, B17, B23, B25, B28, 004, 006, 016 Each to Receive: 3 1 1 1 1 3 EA EA EA EA EA EA BEARING HINGE PASSAGE LATCH CLOSER KICKPLATE WALL STOP SILENCER TA2714 4.5" x 4.5" 28-10U15 LL 351-UO (UNIVERSAL MOUNT) 10" x 2" LDW 409 608 10 10 EP 10 10 GREY MC KINNEY SARGENT SARGENT ROCKWOOD ROCKWOOD ROCKWOOD

Hardware Set 15
Doors: B01, B21 Each to Receive: 3 1 1 3 EA EA EA EA BEARING HINGE STOREROOM LOCK WALL STOP SILENCER TA2714 4.5" x 4.5" 28-10G04 LL 409 608 10 10 10 GREY MC KINNEY SARGENT ROCKWOOD ROCKWOOD

Hardware Set 16
Doors: B30 Each to Receive: 3 1 1 1 1 3 EA EA EA EA EA EA BEARING HINGE CLASSROOM LOCK CLOSER KICKPLATE WALL STOP SILENCER TA2714 4.5" x 4.5" 28-10G37 LL 351-UO (UNIVERSAL MOUNT) 10" x 2" LDW 409 608 10 10 EP 10 10 GREY MC KINNEY SARGENT SARGENT ROCKWOOD ROCKWOOD ROCKWOOD

Hardware Set 17
Doors: B31 Each to Receive: 3 1 1 1 1 1 EA EA EA EA EA EA BEARING HINGE ENTRANCE LOCK CLOSER KICKPLATE WALL STOP SMOKE SEAL TA2714 4.5" x 4.5" 28-10G05 LL 351-UO (UNIVERSAL MOUNT) 10" x 2" LDW 409 PK55D x LAR 10 10 EP 10 10 BRZ MC KINNEY SARGENT SARGENT ROCKWOOD ROCKWOOD PEMKO

Hardware Set 18
Doors: B34 Each to Receive: 3 1 3 EA EA EA BEARING HINGE DEADBOLT SILENCER TA2714 4.5" x 4.5" 485 608 10 10 GREY MC KINNEY SARGENT ROCKWOOD

Hardware Set 19
Doors: B12, B14, B20, P03, 001, 002, 008, 009, 013, 102, 103, 105, 202, 203, 205, 302, 303, 305, 401

ALL HARDWARE BY DOOR SUPPLIER

Hardware Set 20
Doors: 010 Each to Receive: 3 1 1 1 1 1 3 EA EA EA EA EA EA EA BEARING HINGE PUSH PLATE PULL PLATE CLOSER KICKPLATE WALL STOP SILENCER TA2714 4.5" x 4.5" 70B (3.5" x 15") 105 x 70B (3.5" x 15") 351-UO (UNIVERSAL MOUNT) 10" x 2" LDW 409 608 10 10 10 EP 10 10 GREY MC KINNEY ROCKWOOD ROCKWOOD SARGENT ROCKWOOD ROCKWOOD ROCKWOOD

Hardware Set 21
Doors: 011, 101 Each to Receive: 3 1 1 1 1 1 1 EA EA EA EA EA ST EA BEARING HINGE RIM EXIT CLOSER KICKPLATE THRESHOLD WEATHERSTRIP SWEEP TA2314 4.5" x 4.5" (NRP) 8813 ETL (KEY UNLOCKS) 351-PS (PARALLEL MOUNT W/STOP) 10" x 2" LDW 171D x LAR 303DS x LAR 315DN x LAR 10 10 EP 10 BRZ BRZ BRZ MC KINNEY SARGENT SARGENT ROCKWOOD PEMKO PEMKO PEMKO

Hardware Set 22
Doors: 012 Each to Receive: 6 1 1 2 2 1 1 2 2 EA EA EA EA EA EA ST EA EA BEARING HINGE S.V.R. EXIT S.V.R. EXIT CLOSER KICKPLATE THRESHOLD WEATHERSTRIP SWEEP MEETING STILES TA2314 4.5" x 4.5" (NRP) 8710 (EXIT ONLY) 8713 ETL (KEY UNLOCKS) 351-PS (PARALLEL MOUNT W/STOP) 10" x 2" LDW 171D x LAR 303DS x LAR 315DN x LAR 305DN x LAR 10 10 10 EP 10 BRZ BRZ BRZ BRZ MC KINNEY SARGENT SARGENT SARGENT ROCKWOOD PEMKO PEMKO PEMKO PEMKO
