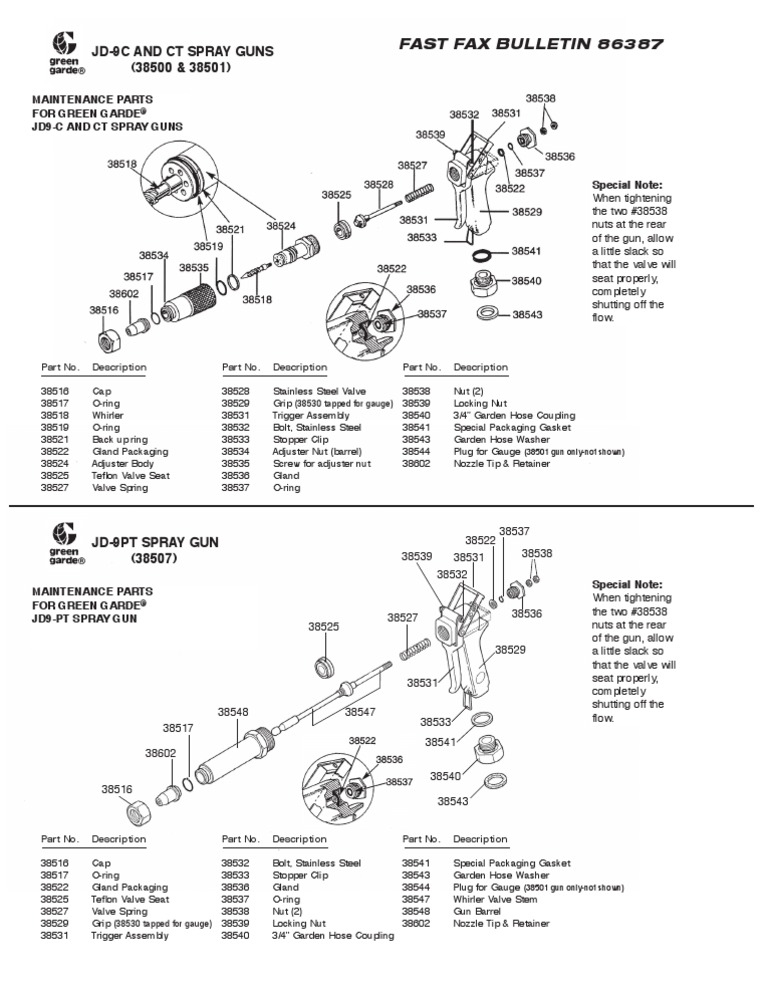

    JD-9C AND CT SPRAY GUNS (38500 & 38501)

    MAINTENANCE PARTS FOR GREEN GARDE JD9-C AND CT SPRAY GUNS

    FAST FAX BULLETIN 86387

    Special Note: When tightening the two #38538 nuts at the rear of the gun, allow a little slack so that the valve will seat properly, completely shutting off the flow.

    Part No. 38516 38517 38518 38519 38521 38522 38524 38525 38527

    Description Cap O-ring Whirler O-ring Back up ring Gland Packaging Adjuster Body Teon Valve Seat Valve Spring

    Part No. 38528 38529 38531 38532 38533 38534 38535 38536 38537

    Description Stainless Steel Valve Grip (38530 tapped for gauge) Trigger Assembly Bolt, Stainless Steel Stopper Clip Adjuster Nut (barrel) Screw for adjuster nut Gland O-ring

    Part No. 38538 38539 38540 38541 38543 38544 38602

    Description Nut (2) Locking Nut 3/4 Garden Hose Coupling Special Packaging Gasket Garden Hose Washer Plug for Gauge (38501 gun only-not shown) Nozzle Tip & Retainer

    JD-9PT SPRAY GUN (38507)


    MAINTENANCE PARTS FOR GREEN GARDE JD9-PT SPRAY GUN

    38539

    38522 38531 38532

    38537 38538

    38525

    38527

    38536 38529

    38531

    38548
    38517 38602 38516

    38547

    38533 38541 38540 38543

    Special Note: When tightening the two #38538 nuts at the rear of the gun, allow a little slack so that the valve will seat properly, completely shutting off the flow.

    Part No. 38516 38517 38522 38525 38527 38529 38531

    Description Cap O-ring Gland Packaging Teon Valve Seat Valve Spring Grip (38530 tapped for gauge) Trigger Assembly

    Part No. 38532 38533 38536 38537 38538 38539 38540

    Description Bolt, Stainless Steel Stopper Clip Gland O-ring Nut (2) Locking Nut 3/4 Garden Hose Coupling

    Part No. 38541 38543 38544 38547 38548 38602

    Description Special Packaging Gasket Garden Hose Washer Plug for Gauge (38501 gun only-not shown) Whirler Valve Stem Gun Barrel Nozzle Tip & Retainer
