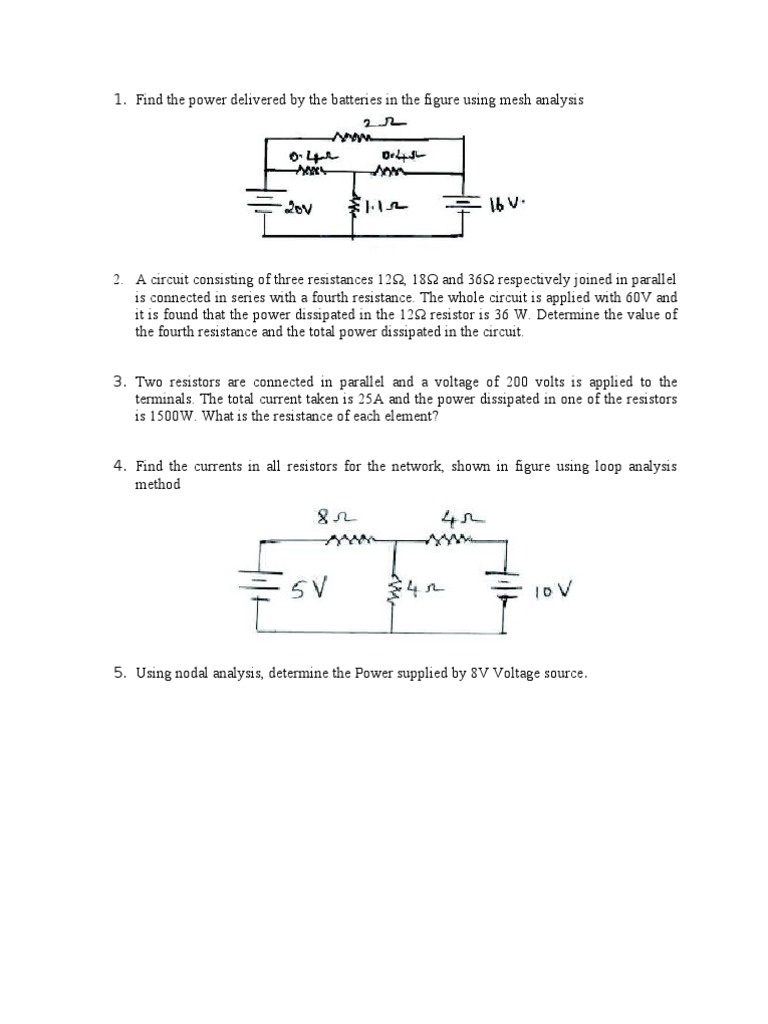

1.

Find the power delivered by the batteries in the figure using mesh analysis

2. A circuit consisting of three resistances 12, 18 and 36 respectively joined in parallel is connected in series with a fourth resistance. The whole circuit is applied with 60V and it is found that the power dissipated in the 12 resistor is 36 W. Determine the value of the fourth resistance and the total power dissipated in the circuit. 3. Two resistors are connected in parallel and a voltage of 200 volts is applied to the terminals. The total current taken is 25A and the power dissipated in one of the resistors is 1500W. What is the resistance of each element? 4. Find the currents in all resistors for the network, shown in figure using loop analysis method

5. Using nodal analysis, determine the Power supplied by 8V Voltage source.

6. Determine the branch Currents in the network

7. Find the Currents I1 and I2 using Nodal Analysis.

8. A circuit consists of three resistors 3 ohms, 4 ohms and 6 ohms in parallel and a fourth resistor 4 ohms in series. A battery of emf 12 V and internal resistance 6 ohms is connected across the circuit. Find the total current in the circuit and terminal voltage across the battery.

9. A 50 ohm resistor is in parallel with a 100 ohm resistor. The current in 50 ohm resistor is 7.2A. What is the value of third resistance to be added in parallel to make the line current as 12.1A? 10. Obtain the potential difference VAB in the circuit shown in figure using Kirchhoffs laws

11. Write the matrix loop equation for the network shown in figure and determine the loop currents.
