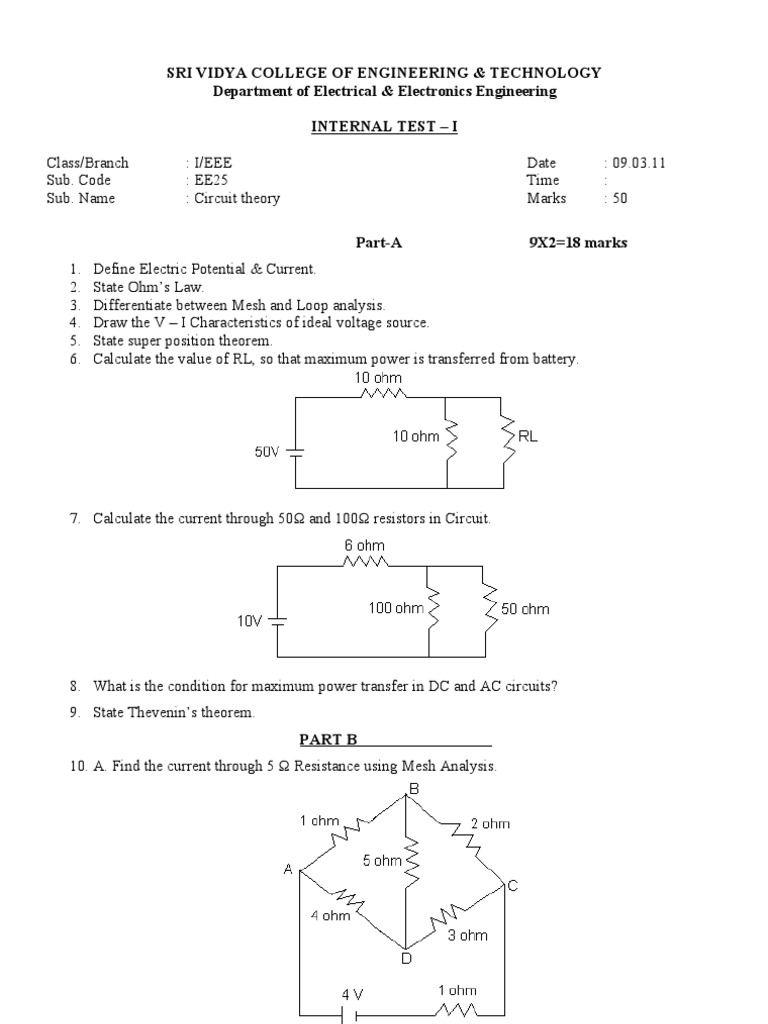

SRI VIDYA COLLEGE OF ENGINEERING & TECHNOLOGY Department of Electrical & Electronics Engineering INTERNAL TEST I Class/Branch Sub.

. Code Sub. Name : I/EEE : EE25 : Circuit theory Part-A 1. 2. 3. 4. 5. 6. Date Time Marks : 09.03.11 : : 50

9X2=18 marks

Define Electric Potential & Current. State Ohms Law. Differentiate between Mesh and Loop analysis. Draw the V I Characteristics of ideal voltage source. State super position theorem. Calculate the value of RL, so that maximum power is transferred from battery.

7. Calculate the current through 50 and 100 resistors in Circuit.

8. What is the condition for maximum power transfer in DC and AC circuits? 9. State Thevenins theorem. PART B 10. A. Find the current through 5 Resistance using Mesh Analysis.

10. B.1. Determine the if in the circuit

(6)

10.B.2. Find the current the 10 Resistor using nodel analysis.

11.A. Draw the nortons equivalent circuit at terminal PQ for the network shown.

11. B.1.Derive the expression for delta to star conversion. 11. B.2.Fine the current the 4 using Thevenins theorem.

*** ALL THE BEST ***
