Engine Room Top Platform Explored
Finn Orfano Published Oct 29, 2009
Marine Diesel Engines
Caterpillar Marine Engines/ZF Gears Cummins Marine Engines/ZF Gears
www.deltaperformancemarine.com
Learn about the top platform of the machinery space of a ship
Introduction Crankshaft Measuring www.prismateknik.se Crankshaft Deflection measuring Secure your diesel engine's life Marine Diesel Engines www.deltaperformancemarine.com Caterpillar Marine Engines/ZF Gears Cummins Marine Engines/ZF Gears Oil & Gas Professional www.oilgas-executive-development.com The Only Executive Development Program for Oil & Gas Engineers Marine Generator Yellowpages.co.in Manufacturer, Suppliers of Gensets & Generators. Get Free Quotes.

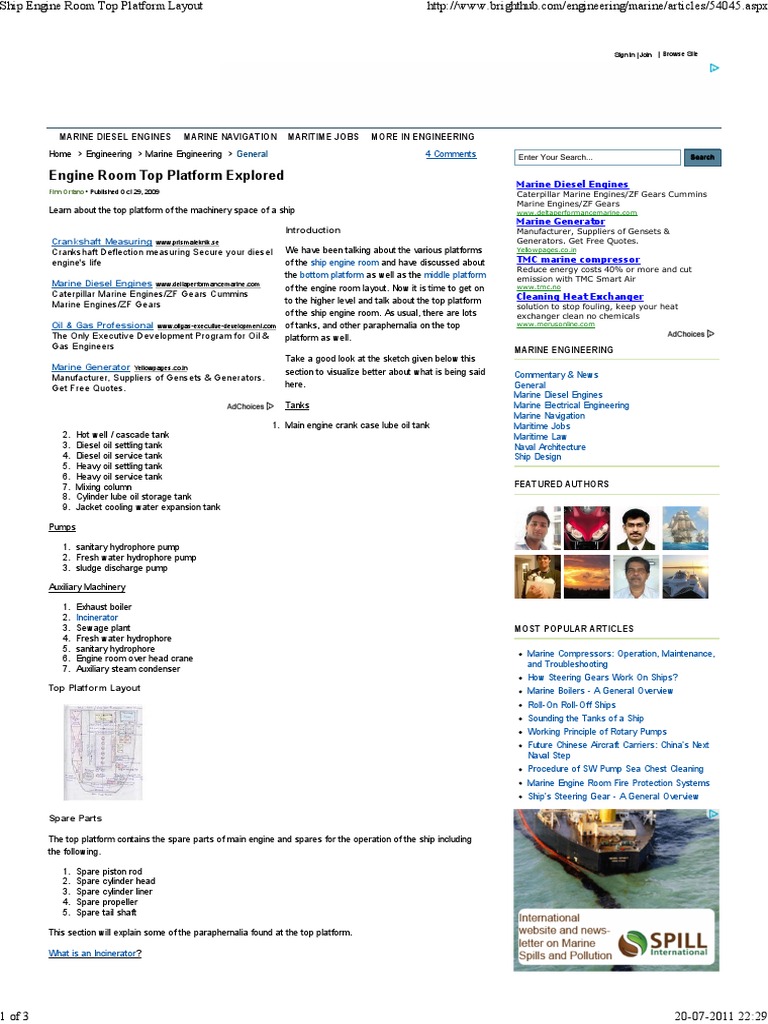

We have been talking about the various platforms of the ship engine room and have discussed about the bottom platform as well as the middle platform of the engine room layout. Now it is time to get on to the higher level and talk about the top platform of the ship engine room. As usual, there are lots of tanks, and other paraphernalia on the top platform as well. Take a good look at the sketch given below this section to visualize better about what is being said here. Tanks 1. Main engine crank case lube oil tank 2. 3. 4. 5. 6. 7. 8. 9. Pumps 1. sanitary hydrophore pump 2. Fresh water hydrophore pump 3. sludge discharge pump Auxiliary Machinery 1. 2. 3. 4. 5. 6. 7. Exhaust boiler Incinerator Sewage plant Fresh water hydrophore sanitary hydrophore Engine room over head crane Auxiliary steam condenser Hot well / cascade tank Diesel oil settling tank Diesel oil service tank Heavy oil settling tank Heavy oil service tank Mixing column Cylinder lube oil storage tank Jacket cooling water expansion tank
Marine Generator
Manufacturer, Suppliers of Gensets & Generators. Get Free Quotes.
Yellowpages.co.in
TMC marine compressor
Reduce energy costs 40% or more and cut emission with TMC Smart Air
www.tmc.no
Cleaning Heat Exchanger
solution to stop fouling, keep your heat exchanger clean no chemicals
www.merusonline.com
MARINE ENGINEERING Commentary & News General Marine Diesel Engines Marine Electrical Engineering Marine Navigation Maritime Jobs Maritime Law Naval Architecture Ship Design FEATURED AUTHORS
MOST POPULAR ARTICLES Marine Compressors: Operation, Maintenance, and Troubleshooting How Steering Gears Work On Ships? Marine Boilers - A General Overview Roll-On Roll-Off Ships Sounding the Tanks of a Ship Working Principle of Rotary Pumps Future Chinese Aircraft Carriers: China's Next Naval Step Procedure of SW Pump Sea Chest Cleaning Marine Engine Room Fire Protection Systems Ship's Steering Gear - A General Overview
Top Platform Layout
Spare Parts
The top platform contains the spare parts of main engine and spares for the operation of the ship including the following. 1. 2. 3. 4. 5. Spare piston rod Spare cylinder head Spare cylinder liner Spare propeller Spare tail shaft
This section will explain some of the paraphernalia found at the top platform. What is an Incinerator?
1 of 3
20-07-2011 22:29
Ship Engine Room Top Platform Layout
http://www.brighthub.com/engineering/marine/articles/54045.aspx
Burning of waste oil, sludge, cotton waste is carried out using the incinerator .The waste oil which is obtained Contact Us from the scavenge drain tank, sludge from the purifier and oil water separator cannot be disposed overboard Advertise with Us so the incinerator is used to burn this oil. Plastic is not burnt in it because it would cause air pollution. Become a Writer What is Hot Well? Hote Well recollects the steam after the work is done and it is condensed. Boiler water tank is known as the hot well because boiler feed pump takes suction from the hot well and gives it to the boiler through feed check valve. It can be called by three different names, they are: 1. Hot well - because the water collected is hot 2. Cascade tank - because it collects the water from the condenser 3. Observation tank - because it is used for observe for any oil or dirt entering the system If any traces of oil are found in the system, it indicates that there is a crack in the steam heating line in side the fuel oil tanks. A sight glass is placed to observe the traces of oil or dirt present in the system. If oil is present in the system then it forms a coating in tubes of the boiler, which may lead to lesser heat transfer to the water in the boiler. What is a Hydrophore System? It is used to maintain the pressure of the water supplied to the different parts of the ship at various heights to keep the constant presser of water in all lines and at all floors of the ship. There are two hydrophore systems used on board: 1. Fresh water hydrophore system 2. Sanitary hydrophore system What is the Jacket Cooling Water Expansion Tank? Expansion tanks are provided for venting of gas, air or vapour formed in the jacket cooling water line, which has to be released. Expansion tank makes up the losses that occur due to evaporation in the jacket cooling space in the engine. The make up water is provided in the expansion tank. It also provides the vent to trap any vacuum or vapour due to evaporation or leakage /cracks in the closed cycle lines. Low level alarm is fitted in the expansion tank to give alarm when the level of the water reaches the low line due to leakage in the pipe or cylinder liner break down. Expansion tank also consists of a sight glass to observe the water level in the tank. RSS
Site Map Terms of Use Privacy Policy Copyright Policy
WRITE FOR BRIGHT HUB
Bright Hub is looking for talented writers to contribute to one of the fastest growing communities online. If you have something bright to say, say it here! Learn more here.
2011 Bright Hub Inc. All rights reserved.
Enter Your Search...
SIGN UP FOR OUR NEWSLETTER
Marine Engineering Channel News | View All News
Enter Your Email...
WorkShop
WORK SHOP is present in the top platform it contains : 1. 2. 3. 4. 5. 6. Lathe machine Drilling machine Grinding machine Milling machine Working bench Bench vice
These machines are normally used for fitting and maintenance purposes and not for production obviously.
List of Stores
Engine room consumable store Engine spare store Electric store Ordinary tools store NEXT ARTICLE Comments | Flag
