Command Manual GVRP
Quidway S8500 Series Routing Switches Table of Contents

Huawei Proprietary and Confidential
Copyright (c) Huawei Technologies Co., Ltd
i

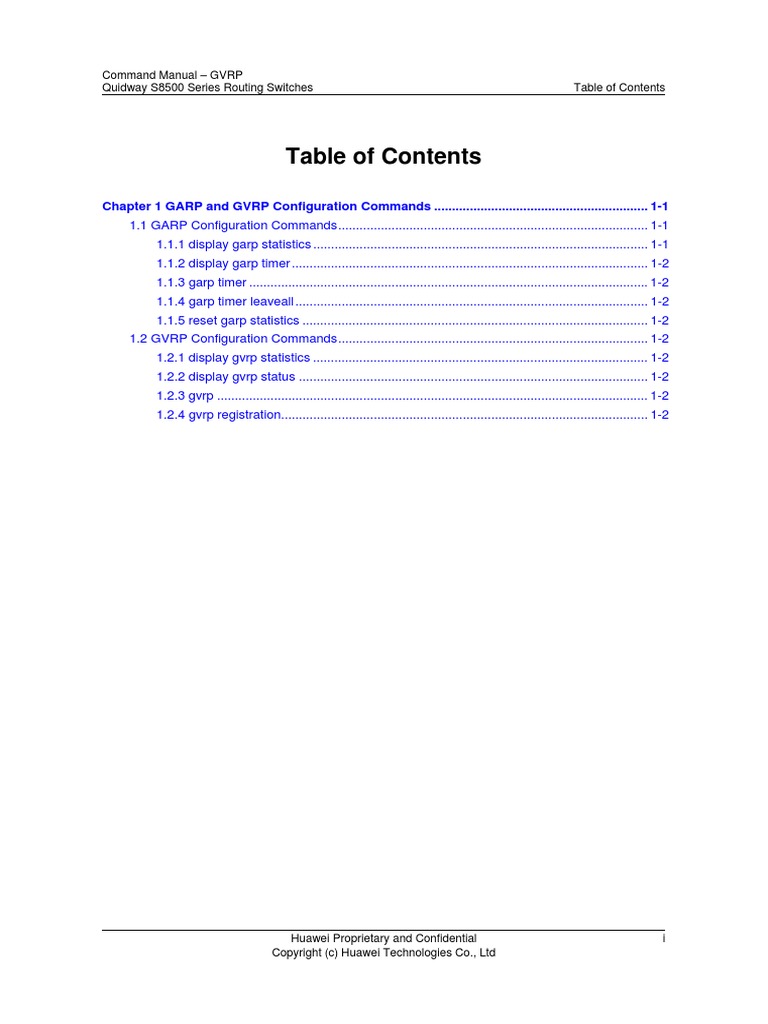

Table of Contents
Chapter 1 GARP and GVRP Configuration Commands ............................................................ 1-1
1.1 GARP Configuration Commands....................................................................................... 1-1
1.1.1 display garp statistics.............................................................................................. 1-1
1.1.2 display garp timer .................................................................................................... 1-2
1.1.3 garp timer ................................................................................................................ 1-2
1.1.4 garp timer leaveall ................................................................................................... 1-2
1.1.5 reset garp statistics ................................................................................................. 1-2
1.2 GVRP Configuration Commands....................................................................................... 1-2
1.2.1 display gvrp statistics .............................................................................................. 1-2
1.2.2 display gvrp status .................................................................................................. 1-2
1.2.3 gvrp ......................................................................................................................... 1-2
1.2.4 gvrp registration....................................................................................................... 1-2

Command Manual GVRP
Quidway S8500 Series Routing Switches
Chapter 1 GARP and GVRP Configuration
Commands

1-1

Commands
1.1 GARP Configuration Commands
1.1.1 display garp statistics
Syntax
display garp statistics [ interface interface-list ]
View
Any view
Parameters
interface-list: List of Ethernet ports to be displayed, expressed as interface-list =
{ interface-type interface-number [ to interface-type interface-number] }&<1-10>.
interface-type is interface type, and interface-number is interface number. The interface
number after the keyword to must be larger than or equal to that before to. &<1-10>
represents that the preceding parameter can be repeated up to 10 times.
Description
Use the display garp statistics command to view the GARP statistics information,
including the number of packets received/sent and discarded by GVRP/GMRP.
Examples
# Display the GARP statistics information on Ethernet port Ethernet 2/1/1.
<Quidway> display garp statistics interface ethernet2/1/1
GARP statistics on port Ethernet2/1/1
Number Of GMRP Frames Received : 0
Number Of GVRP Frames Received : 0
Number Of GMRP Frames Transmitted : 0
Number Of GVRP Frames Transmitted : 0
Number Of Frames Discarded : 0
The information above indicates that the number of received/sent packets and the
number of packets discarded by GVRP/GMRP on Ethernet 2/1/1 are all 0.
Commands
Command Manual GVRP

1-2 Huawei Proprietary and Confidential

1.1.2 display garp timer
Syntax
display garp timer [ interface interface-list ]
View
Any view
Parameters
interface-list: List of Ethernet ports of which the GARP timer information is to be
displayed, expressed as interface-list = { interface-type interface-number [ to
interface-type interface-number ] }&<1-10>. interface-type is interface type, and
interface-number is interface number. The interface number after the keyword to must
be larger than or equal to that before to. &<1-10> means that the preceding parameter
can be repeated up to 10 times.
Description
Use the display garp timer command to view the value of GARP timer, including Hold
timer, Join timer, Leave timer and LeaveAll timer.
Related commands: garp timer, garp timer leaveall.
Examples
# Display GARP timer on Ethernet 2/1/1.
<Quidway> display garp timer interface ethernet2/1/1
GARP timers on port Ethernet2/1/1
GARP JoinTime : 20 centiseconds
GARP Leave Time : 60 centiseconds
GARP LeaveAll Time : 1000 centiseconds
GARP Hold Time : 10 centiseconds
1.1.3 garp timer
Syntax
garp timer { hold | join | leave } timer-value
undo garp timer { hold | join | leave }
View
Ethernet port view
Command Manual GVRP
Commands

1-3

Parameters
hold: GARP Hold timer. After receiving certain registration information, the GARP
application entity will not send Join Message at once. Instead, it starts the Hold timer.
All the registration information received within duration of the Hold timer will be
transmitted in the same frame after the Hold timer times out, thereby saving the
bandwidth resource.
join: GARP Join timer. GARP application entity will send out Join message after the
Join timer goes timeout to make other GARP application entity register its own
information.
leave: GARP Leave timer . When a GARP application entity wants to deregister certain
attribute information, it sends Leave message. The GARP application entity receiving
the message starts Leave timer. If the entity receives no Join message before the timer
goes timeout, it will deregister the attribute information.
timer-value: Value of GARP hold timer, join timer and leave timer in centiseconds. The
step is five centiseconds. By default, Hold timer is 10 centiseconds, Join timer is 20
centiseconds, Leave timer is 60 centiseconds.
The range conforms to the following rule:
The value of Join timer should be no less than the doubled value of Hold timer.
The value of Leave timer should be greater than the doubled value of Join timer
and smaller than the Leaveall timer value.
The minimal value of Join timer is 10 centiseconds.
Description
Use the garp timer command to set the value of GARP timer (including Hold timer, Join
timer and Leave timer) of the port.
Use the undo garp timer command to restore the default value of GARP timer.
The value range of a timer varies with the values of other timers. So if the value of a
timer you want to set is not within the available value range, you can change the value
range by changing the values of other related timers.
The lower limit of Hold timer is 10 centiseconds. You can change its upper limit by
changing the value of Join timer.
You can change the lower limit and upper limit of Join timer by changing the value
of Hold timer and Leave timer respectively.
You can change the lower limit and upper limit of Leave timer by changing the
value of Join timer and LeaveAll timer respectively.
The upper limit of LeaveAll timer is 32765 centiseconds. You can change its lower
limit by changing the value of Leave timer.
Related commands: display garp timer.
Commands
Command Manual GVRP


Examples
# Set Join timer of GARP to 300 ms.
<Quidway> system-view
System View: return to User View with Ctrl+Z.
[Quidway] interface ethernet 2/1/1
[Quidway-Ethernet2/1/1] garp timer join 300
1.1.4 garp timer leaveall
Syntax
garp timer leaveall timer-value
undo garp timer leaveall
View
System view
Parameters
timer-value: Value of GARP LeaveAll timer in centiseconds, ranging from 65 to 32765.
The step is five centiseconds. The value of LeaveAll timer should be greater than the
value of Leave timer.
Description
Use the garp timer leaveall command to configure GARP LeaveAll timer.
Use the undo garp timer leaveall command to restore the default value.
By default, the value of LeaveAll timer is 1000 centiseconds, that is, 10s.
After every GARP application entity is started, the LeaveAll timer will be started
simultaneously. The GARP application entity will send LeaveAll message after the timer
times out to make other application entities re-register all attribute information on the
entities themselves. Then, the LeaveAll timer is started and the new cycle begins.
Related commands: display garp timer.
Examples
# Set GARP LeaveAll timer to 1s.
[Quidway] garp timer leaveall 100
Command Manual GVRP
Commands

1-5

1.1.5 reset garp statistics
Syntax
reset garp statistics [ interface interface-list ]
View
User view
Parameters
interface-list: Specifies a list of Ethernet ports on which the GARP statistics information
will be cleared, expressed as interface-list = { interface-type interface-number [ to
interface-type interface-num] }&<1-10>. interface-type is interface type, and
interface-number is interface number. The interface-number after the keyword to must
Description
Use the reset garp statistics command to reset the GARP statistics information (such
as the packets received/sent and discarded by GVRP/GMRP). If the command has no
parameter, it will clear the GARP statistics information of all the ports.
Related commands: display garp statistics.
Examples
# Clear GARP statistics information.
<Quidway> reset garp statistics
1.2 GVRP Configuration Commands
1.2.1 display gvrp statistics
Syntax
display gvrp statistics [ interface interface-list ]
View
Any view
Parameters
Interface-list: List of Ethernet ports on which the GVRP statistics information is to be
displayed, expressed as interface-list = { interface-type interface-number } [ to
interface-type interface-number] }&<1-10>. interface-type is interface type, and
interface-number is interface number. The interface-number after the keyword to must
Commands
Command Manual GVRP


Description
Use the display gvrp statistics command to view the GVRP statistics information of
all the Trunk ports, including GVRP status information, failed GVRP registration entries
and the last GVRP data unit origin.
Examples
# Display the GVRP statistics information on Ethernet 2/1/1.
<Quidway> display gvrp statistics interface ethernet2/1/1
GVRP statistics on port Ethernet2/1/1
GVRP Status : Enabled
GVRP Failed Registrations : 0
GVRP Last Pdu Origin : 0000-0000-0000
GVRP Registration Type : Normal
Table 1-1 Description on the fields of the display gvrp statistics command
Field Description
GVRP Status GVRP status, that is, enabled or disabled
GVRP Failed Registrations Failed GVRP registration entries
GVRP Last Pdu Origin
The source of the last GVRP data unit. If GVRP
data unit is not received, the system displays
0000-0000-0000; if received from a device, the
GVRP data unit received last time is regarded as
coming from this MAC address of this device.
GVRP Registration Type
GVRP registration type, that is, fixed, forbidden or
normal

1.2.2 display gvrp status
Syntax
display gvrp status
View
Any view
Parameters
None
Command Manual GVRP
Commands

1-7

Description
Use the display gvrp status command to view the global GVRP status information.
Examples
# Display the global status information about GVRP.
<Quidway> display gvrp status
GVRP is enabled
The above information means that the global GVRP is enabled.
1.2.3 gvrp
Syntax
gvrp
undo gvrp
View
System view, Ethernet port view
Parameters
None
Description
Use the gvrp command to enable GVRP.
Use the undo gvrp command to disable GVRP.
By default, GVRP is disabled.
This command can be used to enable/disable global GVRP in system view or
enable/disable port GVRP in Ethernet port view.
Before enabling port GVRP, you must enable global GVRP first. In addition, port GVRP
only can be enabled or disabled on Trunk ports.
Related commands: display gvrp status.
Examples
# Enable global GVRP.
[Quidway] gvrp
Commands
Command Manual GVRP


1.2.4 gvrp registration
Syntax
gvrp registration { fixed | forbidden | normal }
undo gvrp registration
View
Ethernet port view
Parameters
fixed: Enables to create or register VLAN on the port manually and disables to register
or deregister VLAN dynamically.
forbidden: Deregisters all VLANs except VLAN 1 and disables to create or register any
other VLAN on the port.
normal: Enables to create, register and deregister VLAN on the port manually or
dynamically.
Description
Use the gvrp registration command to configure GVRP registration type.
Use the undo gvrp registration command to restore the default type.
By default, the registration type is normal.
This command can be only used on Trunk port.
Related commands: display gvrp statistics.
Examples
# Set the GVRP registration type of Ethernet 2/1/1 as fixed.
[Quidway] interface ethernet 2/1/1
[Quidway-Ethernet2/1/1] gvrp registration fixed

Chapter 1 GARP and GVRP Configuration Commands ............................................................ 1-1

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Chapter 1 GARP and GVRP Configuration Commands ............................................................ 1-1

Uploaded by

Copyright:

Available Formats

Command Manual GVRP

Quidway S8500 Series Routing Switches Table of Contents

You might also like
