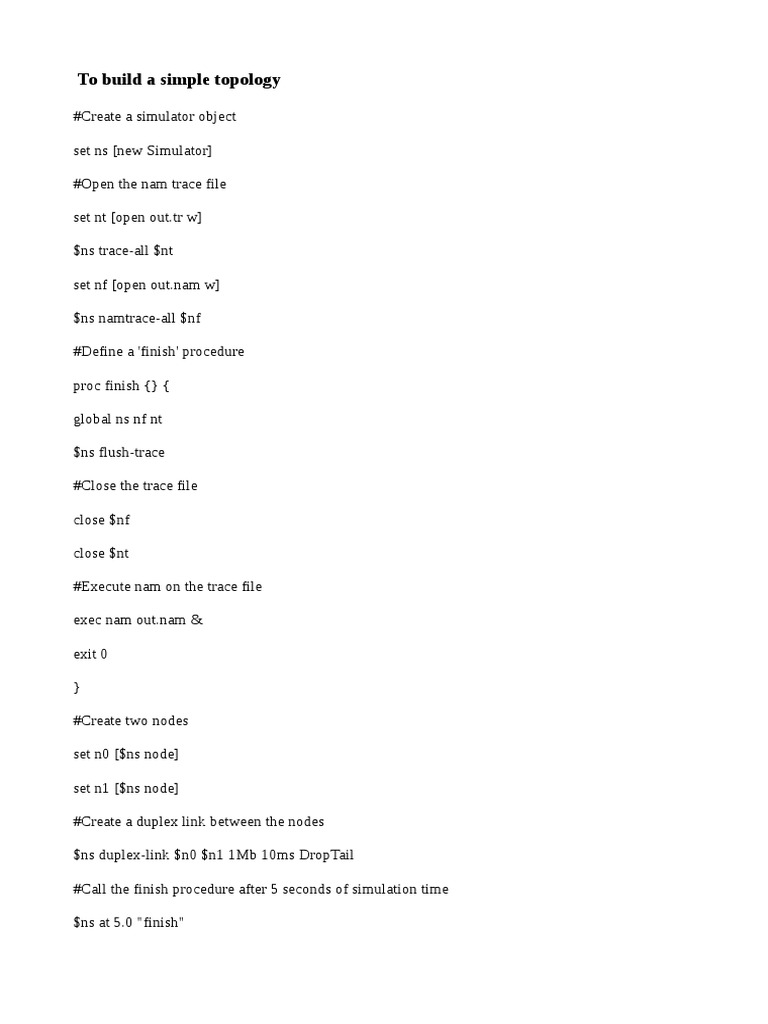

To build a simple topology
#Create a simulator object

set ns [new Simulator]
#Open the nam trace file
set nt [open out.tr w]
$ns trace-all $nt
set nf [open out.nam w]
$ns namtrace-all $nf
#Define a 'finish' procedure
proc finish {} {
global ns nf nt
$ns flush-trace
#Close the trace file
close $nf
close $nt
#Execute nam on the trace file
exec nam out.nam &
exit 0
}
#Create two nodes
set n0 [$ns node]
set n1 [$ns node]
#Create a duplex link between the nodes
$ns duplex-link $n0 $n1 1Mb 10ms DropTail
#Call the finish procedure after 5 seconds of simulation time
$ns at 5.0 "finish"
#Run the simulation

$ns run
2. To create simple CBR traffic over UDP

set nt [open out.tr w]
$ns trace-all $nt

proc finish {} {
global ns nf
$ns flush-trace
#Close the trace file
close $nf
#Execute nam on the trace file
exec nam out.nam &
exit 0
}
#Create two nodes
set n0 [$ns node]
set n1 [$ns node]
#Create a duplex link between the nodes
set udp0 [new Agent/UDP]

$ns attach-agent $n0 $udp0
# Create a CBR traffic source and attach it to udp0
set cbr0 [new Application/Traffic/CBR]
$cbr0 set packetSize_ 500
$cbr0 set interval_ 0.005
$cbr0 attach-agent $udp0
#Create a Null agent (a traffic sink) and attach it to node n1
set null0 [new Agent/Null]
$ns attach-agent $n1 $null0
#Connect the traffic source with the traffic sink
$ns connect $udp0 $null0
#Schedule events for the CBR agent
$ns at 0.5 "$cbr0 start"
$ns at 4.5 "$cbr0 stop"
$ns at 5.0 "finish"
#Run the simulation
$ns run
3. CBR over UDP

#Open trace file
set tracefile [open out.tr w]
$ns trace-all $tracefile

proc finish {} {
global ns nf tracefile
$ns flush-trace
#Close the NAM trace file
close $nf
close $tracefile
#Execute NAM on the trace file
exec nam out.nam &
exit 0
}
set n0 [$ns node]

set n1 [$ns node]
$ns simplex-link $n0 $n1 1Mb 10ms DropTail
$ns attach-agent $n0 $udp0
set cbr [new Application/Traffic/CBR]
$cbr attach-agent $udp0
$ns attach-agent $n1 $null0
$ns at 1.0 "$cbr start"
$ns at 3.0 "finish"
$ns run
4. FTP over TCP

proc finish {} {
$ns flush-trace
close $nf
close $tracefile
exec nam out.nam &
exit 0
}
set n0 [$ns node]
set n1 [$ns node]
set tcp0 [new Agent/TCP]
$ns attach-agent $n0 $tcp0
set ftp0 [new Application/FTP]
$ftp0 attach-agent $tcp0
set tcpsink0 [new Agent/TCPSink]
$ns attach-agent $n1 $tcpsink0

$ns connect $tcp0 $tcpsink0
$ns at 1.0 "$ftp0 start"
$ns at 3.0 "finish"
$ns run
5. Topology Description
1. Network consists of 4 nodes (n0, n1, n2, n3).
2. The duplex links between n0 and n2, and n1 and n2 have 2 Mbps of bandwidth and 10 ms of
delay.
3. The duplex link between n2 and n3 has 1.7 Mbps of bandwidth and 20 ms of delay.
4. Each node uses a DropTail queue, of which the maximum size is 10.
5. A tcp agent is attached to n0, and a connection is established to a tcp sink agent attached
to n3.
6. As default, the maximum size of a packet that a tcp agent can generate is 1KByte.
7. A tcp sink agent generates and sends ACK packets to the sender (tcp agent) and frees the
received packets.
8. A udp agent that is attached to n1 is connected to a null agent attached to n3.
9. A null agent just frees the packets received.
10.
A ftp and a cbr traffic generator are attached to tcp and udp agents
respectively,
11.
The cbr is configured to generate 1 KByte packets at the rate of 1 Mbps.
12.
The cbr is set to start at 0.1 sec and stop at 4.5 sec, and ftp is set to start at
1.0 sec and stop at 4.0 sec.
#Define different colors for data flows (for NAM)
$ns color 1 Blue
$ns color 2 Red
#Open the NAM trace file


proc finish {} {
$ns flush-trace
close $nf
close $tracefile
exec nam out.nam &
exit 0
}
#Create four nodes

set n0 [$ns node]
set n1 [$ns node]
set n2 [$ns node]
set n3 [$ns node]
#Create links between the nodes

$ns duplex-link $n2 $n3 1.7Mb 20ms DropTail
#Set Queue Size of link (n2-n3) to 10

$ns queue-limit $n2 $n3 10
#Give node position (for NAM)

$ns duplex-link-op $n0 $n2 orient right-down
$ns duplex-link-op $n1 $n2 orient right-up
$ns duplex-link-op $n2 $n3 orient right
#Monitor the queue for link (n2-n3). (for NAM)

$ns duplex-link-op $n2 $n3 queuePos 0.5
#Setup a TCP connection
set tcp [new Agent/TCP]
$tcp set class_ 2
$ns attach-agent $n0 $tcp
set sink [new Agent/TCPSink]
$ns attach-agent $n3 $sink
$ns connect $tcp $sink
$tcp set fid_ 1
#Setup a FTP over TCP connection
set ftp [new Application/FTP]
$ftp attach-agent $tcp
$ftp set type_ FTP
#Setup a UDP connection
set udp [new Agent/UDP]
$ns attach-agent $n1 $udp
set null [new Agent/Null]
$ns attach-agent $n3 $null
$ns connect $udp $null
$udp set fid_ 2

#Setup a CBR over UDP connection
set cbr [new Application/Traffic/CBR]
$cbr attach-agent $udp
$cbr set type_ CBR
$cbr set packet_size_ 1000
$cbr set rate_ 1mb
$cbr set random_ false
#Schedule events for the CBR and FTP agents
$ns at 0.1 "$cbr start"
$ns at 1.0 "$ftp start"
$ns at 4.0 "$ftp stop"
$ns at 4.5 "$cbr stop"
#Detach tcp and sink agents (not really necessary)
$ns at 4.5 "$ns detach-agent $n0 $tcp ; $ns detach-agent $n3 $sink"
$ns at 5.0 "finish"
#Print CBR packet size and interval
puts "CBR packet size = [$cbr set packet_size_]"
puts "CBR interval = [$cbr set interval_]"
#Run the simulation
$ns run
# stop and wait protocol in normal situation
# features : labeling, annotation, nam-graph, and window size #monitoring
set n0 [$ns node]

set n1 [$ns node]
$ns at 0.0 "$n0 label Sender"
$ns at 0.0 "$n1 label Receiver"
set nf [open A1-stop-n-wait.nam w]
set f [open A1-stop-n-wait.tr w]
$ns trace-all $f
Agent/TCP set nam_tracevar_ true
$tcp set window_ 1
$tcp set maxcwnd_ 1
$ns add-agent-trace $tcp tcp
$ns monitor-agent-trace $tcp
$tcp tracevar cwnd_
$ns at 3.5 "finish"
$ns at 0.0 "$ns trace-annotate \"Stop and Wait with normal operation\""
$ns at 0.05 "$ns trace-annotate \"FTP starts at 0.1\""
$ns at 0.11 "$ns trace-annotate \"Send Packet_0\""
$ns at 0.35 "$ns trace-annotate \"Receive Ack_0\""
$ns at 1.23 "$ns trace-annotate \"Receive Ack_2 \""
$ns at 2.55 "$ns trace-annotate \"Receive Ack_5
\""

$ns at 3.1 "$ns trace-annotate \"FTP stops\""
proc finish {} {
global ns nf
$ns flush-trace
close $nf
puts "running nam..."
exec nam A1-stop-n-wait.nam &
exit 0
}
$ns run
# sliding window mechanism with some features
# such as labeling, annotation, nam-graph, and window size monitoring
set n0 [$ns node]
set n1 [$ns node]
$ns at 0.0 "$n0 label Sender"
$ns at 0.0 "$n1 label Receiver"
set f [open out.tr w]

$ns trace-all $f
Agent/TCP set nam_tracevar_ true
$tcp set windowInit_ 4
$tcp set maxcwnd_ 4
$ns add-agent-trace $tcp tcp
$ns monitor-agent-trace $tcp
$tcp tracevar cwnd_
$ns at 3.5 "finish"
$ns at 0.0 "$ns trace-annotate \"Sliding Window with window size 4 (normal operation)\""
$ns at 0.05 "$ns trace-annotate \"FTP starts at 0.1\""
$ns at 0.56 "$ns trace-annotate \"Send Packet_0,1,2,3\""
$ns at 0.79 "$ns trace-annotate \"Receive Ack_0,1,2,3\""
$ns at 1.67 "$ns trace-annotate \"Receive Ack_8,9,10,11 \""
$ns at 3.1 "$ns trace-annotate \"FTP stops\""
proc finish {} {
global ns
$ns flush-trace
# puts "filtering..."
puts "running nam..."
exec nam out.nam &
exit 0
}
$ns run
Simulation of Distance Vector Routing Algorithm

set nr [open thro.tr w]
$ns trace-all $nr
set nf [open thro.nam w]
proc finish { } {
global ns nr nf
$ns flush-trace
close $nf
close $nr
exec nam thro.nam &
exit 0
}
for { set i 0 } { $i < 12} { incr i 1 } {
set n($i) [$ns node]}
for {set i 0} {$i < 8} {incr i} {
$ns duplex-link $n($i) $n([expr $i+1]) 1Mb 10ms DropTail }
$ns duplex-link $n(0) $n(8) 1Mb 10ms DropTail
$ns attach-agent $n(0) $udp0

$ns attach-agent $n(5) $null0
$ns rtproto DV
$ns rtmodel-at 10.0 down $n(11) $n(5)
$ns rtmodel-at 30.0 up $n(11) $n(5)
$udp0 set fid_ 1
$udp1 set fid_ 2
$ns color 1 Red

$ns color 2 Green
$ns at 45 "finish"
$ns run
Simulation of Link State Routing Algorithm

set nr [open thro.tr w]
$ns trace-all $nr
set nf [open thro.nam w]
proc finish { } {
global ns nr nf
$ns flush-trace
close $nf
close $nr
exec nam thro.nam &
exit 0
}
for { set i 0 } { $i < 12} { incr i 1 } {
set n($i) [$ns node]}
for {set i 0} {$i < 8} {incr i} {
$ns duplex-link $n($i) $n([expr $i+1]) 1Mb 10ms DropTail }

$ns rtproto LS
$udp0 set fid_ 1
$udp1 set fid_ 2
$ns color 1 Red
$ns color 2 Green
$ns at 45 "finish"
$ns run
TRACE FILE ANALYSIS
AWK is a high level programming language which is used to process text files,named after its three
orginal author's name:
A : Alfred Aho
W : Peter Weinberger
K : Brian Kernighan
AWK Scripts are very good in processing the data from the trace files which we get from
NS2. If you want to process the trace file manually.
Similar to C but more simple
Read the records line by line
$0 : the whole string in the corresponding line
$1 : the first data in the corresponding line

$2 : the second data in the corresponding line
AWK PROGRAM STRUCTURE

Awk program structure contains mainly three parts;
1. Begin
2. Content
3. End
BEGIN {<initialization>}
<pattern1> {<actionSet1>}
<pattern2> {<actionSet2>}
...
END {<final finalActionSet>}
BEGIN : Begin deals with what to be executed prior to text file processing,normally which is used
to initialize variable values or constants.
CONTENT : Script which process the text file. In this part, AWK moves lines by lines (i.e., records
by records) and executes the <actionSet> if the current line match with the pattern. The actions
repeats until AWK reaches the end of the file.
END : This part explains what to be executed after the text file processing ie. what to print on the
terminal or to show output in terminal.
An AWK example : samp.awk
BEGIN {
sum =0;
}
{
if ($1=="+")
{
sum++;
}
}
END {
printf("The number of enqueue is : %d\n",sum);
}
To run awk script, we have to use terminal window.
awk -f <awk file name> <trace file name>
ex : awk -f samp.awk out.tr
The -f instructs the awk utility to get the awk program from the source file i.e from .awk
file.

Ns2 Programs

Uploaded by

Document Information

Original Description:

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Ns2 Programs

Uploaded by

Copyright:

Available Formats

To build a simple topology

#Create a simulator object

#Run the simulation

2. To create simple CBR traffic over UDP

#Define a 'finish' procedure

set udp0 [new Agent/UDP]

3. CBR over UDP

set nf [open out.nam w]

set n0 [$ns node]

4. FTP over TCP

$ns attach-agent $n1 $tcpsink0

#Open the NAM trace file

$ns trace-all $tracefile

#Create four nodes

#Create links between the nodes

#Set Queue Size of link (n2-n3) to 10

#Give node position (for NAM)

#Monitor the queue for link (n2-n3). (for NAM)

$udp set fid_ 2

set n0 [$ns node]

$ns at 2.75 "$ns trace-annotate \"Send Packet_6\""

set f [open out.tr w]

Simulation of Distance Vector Routing Algorithm

$ns attach-agent $n(0) $udp0

$ns color 1 Red

Simulation of Link State Routing Algorithm

$ns duplex-link $n(0) $n(8) 1Mb 10ms DropTail

TRACE FILE ANALYSIS

$1 : the first data in the corresponding line

AWK PROGRAM STRUCTURE

You might also like
