Bullheading Calculation Example

by D RI LLI NG FO R MUL AS .C O M on JULY 12, 2015

by Deal Top
X

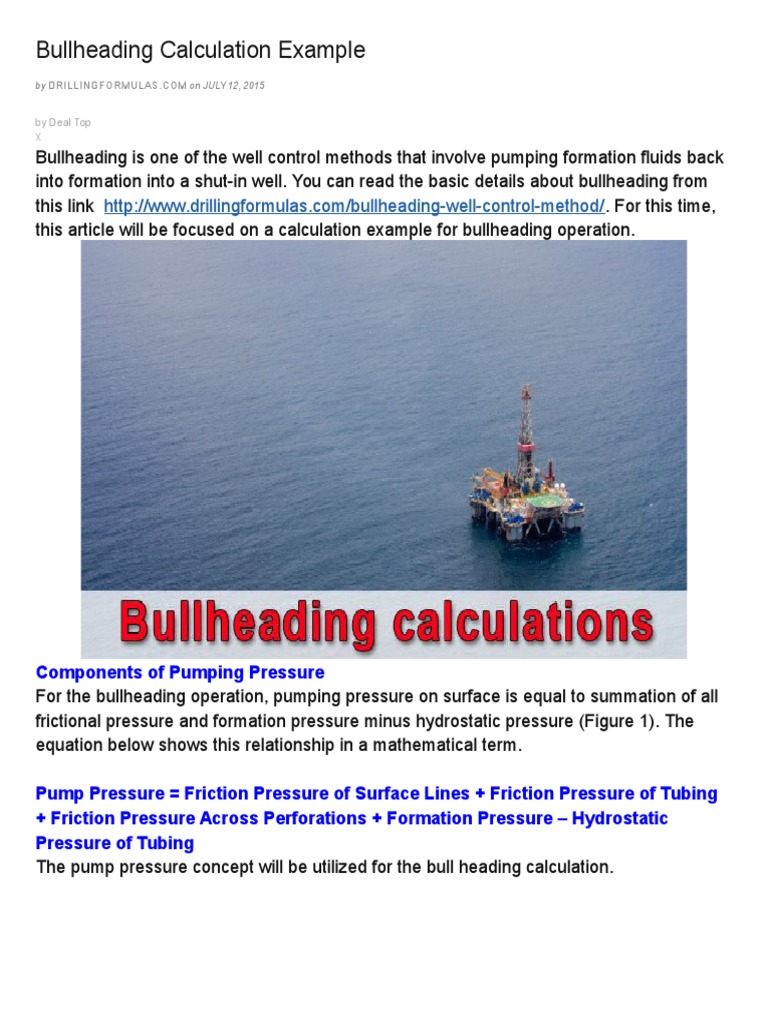

Bullheading is one of the well control methods that involve pumping formation fluids back
into formation into a shut-in well. You can read the basic details about bullheading from
this link http://www.drillingformulas.com/bullheading-well-control-method/. For this time,
this article will be focused on a calculation example for bullheading operation.

Components of Pumping Pressure

For the bullheading operation, pumping pressure on surface is equal to summation of all
frictional pressure and formation pressure minus hydrostatic pressure (Figure 1). The
equation below shows this relationship in a mathematical term.
Pump Pressure = Friction Pressure of Surface Lines + Friction Pressure of Tubing
+ Friction Pressure Across Perforations + Formation Pressure Hydrostatic
Pressure of Tubing
The pump pressure concept will be utilized for the bull heading calculation.

Figure 1 Pump Pressure Components

The well information is give below;
Production casing was set at 12,000MD/12,000TVD.
Bottom of perforation is at 11,500MD/11,500TVD.
Bottom of perforation is at 11,000MD/11,000TVD.
End of production tubing is at 11,500MD/11,500TVD.
Production packer is at 10,300MD/10,300TVD.

Formation fracture gradient is 0.645 psi/ft

Formation pressure gradient is 0.445 psi/ft
Shut in tubing pressure = 2,800 psi
Production casing: 7 OD, 29 ppf, L-80, capacity factor = 0.0371 bbl/ft
Production tubing: 3.5 OD, 9.2ppf, L-80, capacity factor = 0.0087 bbl/ft
Pump output (bbl/stk) = 0.1 bbl/stk
Figure 2 describes the wellbore diagram based on the given information.

Figure 2 Diagram of the well

Calculations
For the bull heading calculation, reference points for calculation formation pressure,
fracture pressure, kill weight mud are based on top of perforation because it gives the
most conservative fracture pressure value.
Formation Pressure (psi) = Pressure Gradient (psi/ft) x Top of Perforation TVD (ft)
Formation Pressure (psi) = 0.445 x 11,000 = 4,895 psi
Fracture Pressure (psi) = Fracture Gradient (psi/ft) x Top of Perforation TVD (ft)
Fracture Pressure (psi) = 0.645 x 11,000 = 7,095 psi
Initial Hydrostatic Pressure (psi) = Formation Pressure (psi) Shut In Tubing Head
Pressure (psi)
Initial Hydrostatic Pressure (psi) = 4,895 2,800 = 2,095 psi
Initial Average Fluid Density (ppg) = Initial Hydrostatic Pressure (psi) (0.052 x Top
of Perforation TVD (ft))
Initial Average Fluid Density (ppg) = 2,095 (0.052 x 11,000) = 3.66 ppg
Kill Weight Mud (ppg) = Initial Average Fluid Density + (Shut In Tubing Pressure
(psi) 0.052 Top of Perforation TVD (ft))
Kill Weight Mud (ppg) = 3.66 + (2800 0.052 11,000) = 8.6 ppg
Maximum Initial Surface Pressure (psi) = Formation Fracture Pressure (psi) Initial
Hydrostatic Pressure (psi)
Maximum Initial Surface Pressure (psi) = 7,095 2,095 = 5,000 psi
The below calculation relates to pressure while bullheading.
Maximum End of Tubing Pressure (psi) = Fracture Pressure (psi) (Kill Weight Mud
(ppg) x 0.052 x End of Tubing TVD (ft)) Initial Average Fluid Density (ppg) x 0.052
x (Top of Perforation TVD (ft) End of Tubing TVD (ft))
Maximum End of Tubing Pressure (psi) = 7,095 (8.6 x 0.052 x 10,500) (3.66 x 0.052 x
(11,000 10,500)) = 2,304 psi
Maximum pressure when Kill Mud Weight reaches perforation
@ Top of Perforation (11,000 ft TVD)

Maximum Final Pressure (psi) = Formation Fracture Pressure @ top of perforation

(psi) (Kill Weight Mud (ppg) x 0.052 x Top of Perforation TVD (ft))
Maximum Final Pressure (psi) = 0.645 x 11,000 (8.6 x 0.052 x 11,000)
Maximum Final Pressure (psi) = 2,176 psi

@ Bottom of Perforation (11,500 ft TVD)

Maximum Final Pressure (psi) = Formation Fracture Pressure @ bottom of
perforation (psi) (Kill Weight Mud (ppg) x 0.052 x Bottom of Perforation TVD (ft))
Maximum Final Pressure (psi) = 0.645 x 11,500 (8.6 x 0.052 x 11,500)
Maximum Final Pressure (psi) = 2,275 psi
The most conservative figure for the maximum final pressure is 2,176 psi.
As you can see, the figure reference to the top of perforation gives the most conservative
figure. This is the reason why top of perforation is selected for the calculation.
Volume Pumped in Tubing (bbl) = Tubing Capacity Factor (bbl/ft) x Length of
Tubing (ft)
Volume Pumped in Tubing (bbl) = 0.0087 x 10,500 = 91.4 bbl
Stroke Pumped in Tubing (stk) = Volume Pumped in Tubing (bbl) Pump Output
(bbl/strk)
Volume Pumped in Tubing (stk) = 91.4 0.1 = 914 strokes
Volume Pumped From End of Tubing to Top of Perforation (bbl) = Casing Capacity
Factor (bbl/ft) x (Top of Perforation TVD (ft) End of Tubing TVD (ft))
Volume Pumped in Tubing (bbl) = 0.0317 x (11,000 10,500) = 18.6 bbl
Stroke Pumped From End of Tubing to Top of Perforation (stk) = Volume Pumped in
Casing (bbl) Pump Output (bbl/strk)
Volume Pumped in Tubing (stk) = 18.6 0.1 = 186 strokes
Volume Pumped From Top of Perforation to End of Perforation (bbl) = Casing
Capacity Factor (bbl/ft) x (End of Perforation TVD (ft) Top of Perforation TVD (ft))
Volume Pumped in Tubing (bbl) = 0.0317 x (11,500 11,000) = 18.6 bbl

Stroke Pumped From Top of Perforation to End of Perforation (bbl)) = Volume

Pumped in Casing (bbl) Pump Output (bbl/strk)
Volume Pumped in Tubing (stk) = 18.6 0.1 = 186 strokes
Total Volume Pumped Summary

In order to push all formation fluid back to formation, it is required that the pumping
volume must be at least volume from surface to end of perforation.
Pressure Schedule While Bull Heading
This is the same concept as pressure schedule in wait and weight well control method.
Pressure Decreasing in Tubing (psi/required stks) = (Maximum Initial Surface
Pressure (psi) Maximum End of Tubing Pressure (psi)) X Required strokes (stks)
Tubing volume (stk)
For this calculation, 100-strokes is selected.
Pressure Decreasing in Tubing (psi/required stks) = (5,000 2,304) x 100 914 = 295
psi / 100 stks
Pressure Decreasing in Casing (psi/required stks) = (Maximum Initial End of Tubing
Pressure (psi) Maximum Final Pressure (psi)) X Required strokes (stks) Volume
from End of Tubing to Top of Perforation (stk)
Pressure Decreasing in Casing (psi/required stks) = (2,304 2,176) X 100 186 =
96psi / 100 stks
Draw the bullhead chart based on this data
The red line is the maximum pressure. If pressure exceeds the red line, a formation will
be broken down (fracture zone). The blue line represents a shut in condition. Pressure
below the blue line means that the well is in an underbalanced condition (flow zone). The
area between the red line and blue line is the safe zone for bullheading operation (Figure
3).

Figure 3 Bullheading Chart

For safe operation, pumping pressure must be within the bullheading zone (Figure 4).

Figure 4 Safe Bullheading

The formations may be fractured if pumping pressure exceeds the fracture line (Figure 5).

Figure 5 -Bullheading Operation Exceeding Fracture Pressure

Note: this chart is constructed without accounting for friction pressure. It is the most
conservative pressure to prevent fracturing formation.
