Reflection and Refraction EX-9987
Page 1 of 11
Lab Report: Reflection and Refraction
Name: Sample Data and Answers

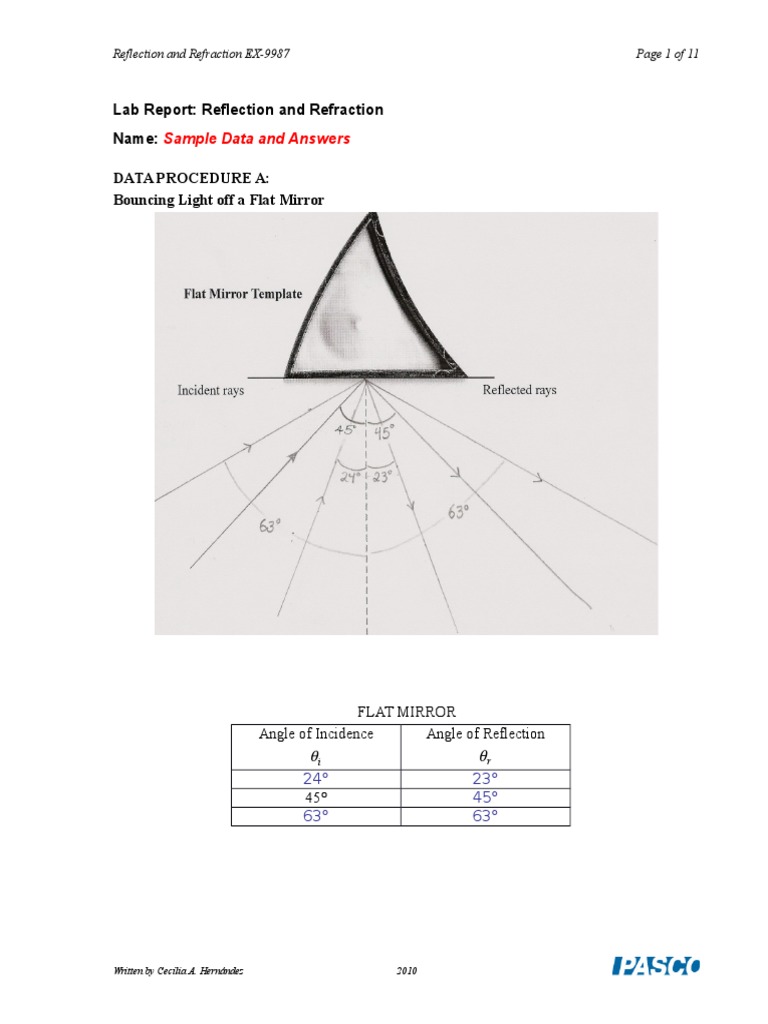

DATA PROCEDURE A:
Bouncing Light off a Flat Mirror
FLAT MIRROR
Angle of Incidence
Angle of Reflection
r
i
24
23
45
45
63
63
Written by Cecilia A. Hernndez
2010
Reflection and Refraction EX-9987
Page 2 of 11
DATA PROCEDURE B:
Bouncing Light off a Concave Mirror
CONCAVE MIRROR
Angle of Incidence
Angle of Reflection
r
i
18
18.5
45
45
64
66
Written by Cecilia A. Hernndez
2010
Reflection and Refraction EX-9987
Page 3 of 11
DATA PROCEDURE C:
Bouncing Light off a Convex Mirror
CONVEX MIRROR
Angle of Incidence
Angle of Reflection
r
i
33
32
44
45
62
60
Written by Cecilia A. Hernndez
2010
Reflection and Refraction EX-9987
Page 4 of 11
DATA PROCEDURE D:
The Bending of Light by Refraction
REFRACTION:
Calculated Index of Refraction,
INTERFACE 1 From air into acrylic
nacrylic
1.33
INTERFACE 2 From acrylic into air
Incident angle
Refracted angle
Incident angle
Refracted angle
(in air)
(in acrylic)
(in acrylic)
(in air)
21
14
16
21
45
32
32
41
63
40
41
63
Written by Cecilia A. Hernndez
2010
Reflection and Refraction EX-9987
Page 5 of 11
PROCEDURE D:
sin acrylic
REFRACTION Plot of sin air versus
from DataStudio, with the Linear Fit.
Written by Cecilia A. Hernndez
2010
Reflection and Refraction EX-9987
Page 6 of 11
DATA PROCEDURE E: Observing Dispersion
Written by Cecilia A. Hernndez
2010
Reflection and Refraction EX-9987
Page 7 of 11
DISPERSION
At the Dispersion Interface
(Light traveling from acrylic into air.)
Index of Refraction of Acrylic
Incident angle
Refracted angle
acrylic
(in air)
20
Written by Cecilia A. Hernndez
RED light
BLUE light
red
blue
26.3
27.9
2010
For RED light
For BLUE light
1.30
1.37
Reflection and Refraction EX-9987
Page 8 of 11
QUESTIONS PROCEDURES A, B, C: Bouncing Light off Mirrors
1. According to the Law of Reflection, the incident angle and the reflection angle must be the
same. Discuss: How well does your experiment show this? Does it matter whether the
reflective surface is flat or curved? Why?
The results were very good, all angles where either the same or
off by just one or half a degree. It does not matter if the surface is
curved. The law of reflection seems to be valid for all surfaces.
This is because no matter the surface, the light strikes at a single
point and reflection happens for all surfaces out of a point.
2. What are sources of experimental uncertainty for this part of the experiment?
The beam of light has a certain thickness and it is hard to decide
which side of the beam to trace. It is also hard to always shine the
light exactly at the same point on the mirrors.
QUESTIONS PROCEDURE D: The Bending of Light by Refraction
8
Note: The speed of light in a vacuum is 3.0 10 m/s .
1. Calculate the speed at which light travels inside acrylic.
For a calculated index of refraction of 1.33,
v= c/n = (3.0 x 108 m/s)/1.33 = 2.26 x 108 m/s
2. Look at Interface 1: When traveling from air into acrylic, did the refracted ray bent toward or
away from the normal line? It bent toward the normal inside the acrylic.
Written by Cecilia A. Hernndez
2010
Reflection and Refraction EX-9987
Page 9 of 11
3. Look at Interface 2: When traveling from acrylic into air, did the refracted ray bent toward or
away from the normal line? It bent away from the normal when it
entered the air.
Written by Cecilia A. Hernndez
2010
Reflection and Refraction EX-9987
Page 10 of 11
QUESTIONS PROCEDURE E: Observing Dispersion
Note: Red light is the low frequency, long wavelength end of the visible spectrum. Blue light, in
comparison, has higher frequency and shorter wavelength.
1. Calculate the speed at which red light travels through acrylic.
For a calculated index of refraction of 1.30,
vred= c/n = (3.0 x 108 m/s)/1.30 = 2.31 x 108 m/s
2. Calculate the speed at which blue light travels through acrylic.
For a calculated index of refraction of 1.37,
vred= c/n = (3.0 x 108 m/s)/1.37 = 2.19 x 108 m/s
3. Which bent more toward the normal, red light or blue light? The red light bent
more toward the normal.
4. For which color light is the index of refraction higher, for red light or for blue light? The
blue light had the higher index of refraction.
5. Compare the indexes of refraction of red and blue light to the index of refraction of acrylic
calculated in Procedure D, where dispersion was not considered.
For red, 1.30.
For blue, 1.37.
Written by Cecilia A. Hernndez
2010
Reflection and Refraction EX-9987
Page 11 of 11
For white light the value determined was 1.33, which is
somewhere in the middle between the values for red and for blue.
6. Conclusions:
The higher the frequency of the light, the slower the speed through the medium.
The higher the frequency of the light, the higher the index of refraction of the
medium.
The faster the beam of light through a medium, the lower the index of refraction.
The faster the beam of light through a medium, the more it deflects toward the
normal upon refraction.
Written by Cecilia A. Hernndez
2010
