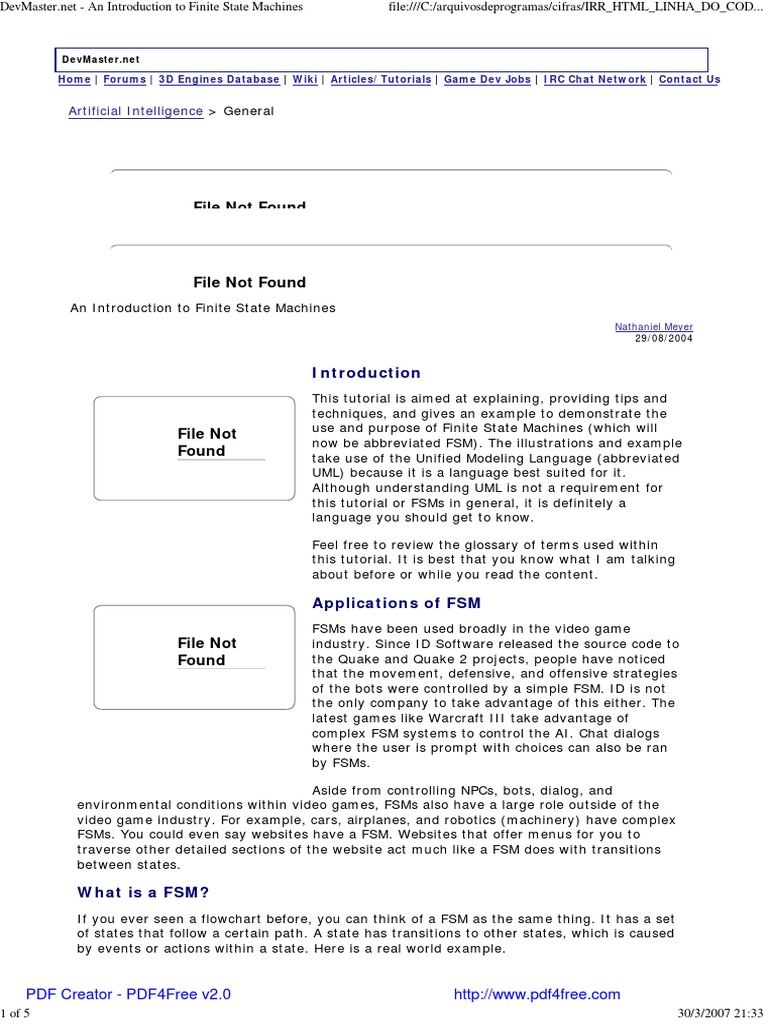

An Introduction to Finite State Machines
Nathaniel Meyer
29/08/2004

Introduction

File Not
Found

This tutorial is aimed at explaining, providing tips and

techniques, and gives an example to demonstrate the
use and purpose of Finite State Machines (which will
now be abbreviated FSM). The illustrations and example
take use of the Unified Modeling Language (abbreviated
UML) because it is a language best suited for it.
Although understanding UML is not a requirement for
this tutorial or FSMs in general, it is definitely a
language you should get to know.
Feel free to review the glossary of terms used within
this tutorial. It is best that you know what I am talking
about before or while you read the content.

Applications of FSM
File Not
Found

FSMs have been used broadly in the video game

industry. Since ID Software released the source code to
the Quake and Quake 2 projects, people have noticed
that the movement, defensive, and offensive strategies
of the bots were controlled by a simple FSM. ID is not
the only company to take advantage of this either. The
latest games like Warcraft III take advantage of
complex FSM systems to control the AI. Chat dialogs
where the user is prompt with choices can also be ran
by FSMs.

Aside from controlling NPCs, bots, dialog, and

environmental conditions within video games, FSMs also have a large role outside of the
video game industry. For example, cars, airplanes, and robotics (machinery) have complex
FSMs. You could even say websites have a FSM. Websites that offer menus for you to
traverse other detailed sections of the website act much like a FSM does with transitions
between states.

What is a FSM?
If you ever seen a flowchart before, you can think of a FSM as the same thing. It has a set
of states that follow a certain path. A state has transitions to other states, which is caused
by events or actions within a state. Here is a real world example.

PDF Creator - PDF4Free v2.0

1 of 5

http://www.pdf4free.com
30/3/2007 21:33

DevMaster.net - An Introduction to Finite State Machines

file:///C:/arquivosdeprogramas/cifras/IRR_HTML_LINHA_DO_COD...

You are in the kitchen (state) and you felt a sudden urge to drink water. You then decide
to walk over to the cupboard and grab a glass. This is an event (walk to cupboard) and you
are now in a new state with new options available to you. You then open the cupboard
(action) and grab a glass (action). With the glass, you walk over to the sink (event) and
turn on the tap (action). Water into poured into the glass (event) and you then drink it
(action).
So in a nutshell, an event leads you to a state in which you perform an action or several
actions (though you do not always have to perform an action). So when you walk to the
cupboard, that leads you to the state "At Cupboard" where the typical action is "Open
Cupboard". To better demonstrate a FSM, a robot example will be used throughout this
tutorial.

Example - Robotics
With all things in life, careful planning is a must, especially with a FSM. The first step to
developing a FSM is to list all the known entities in your problem. Let us start with the
robot.
Figure 1.1: Bender, our robot
Here is Bender, as you may recognize him from Futurama. Bender would like to turn on and
off, walk, run, raise and lower its arms, turn its head, and talk. There are many other
features left to be desired, like ducking, jumping, repairing itself, reacting to environments,
give it emotions, etc As you can see, the list goes on and this is quite normal in a FSM.
Keep in mind however, as the term finite implies you will need to limit the scope of the
problem to a finite set of entities. For the purpose of this tutorial, a subset of functions is
chosen. Given these entities, we should construct a table listing all the possible events and
states associated with them.
Event

State

turnOn

Activated

turnOff

Deactivated (Idle)

stop

Stopped

walk

Walking

run

Running

raiseLeftArm

LeftArmRaised

lowerLeftArm

LeftArmLowered

lowerLeftArm

LeftArmLowered

raiseRightArm

RightArmRaised

lowerRightArm

RightArmLowered

turnHead

HeadTurned(direction)

speak

Talking(text)

Table: 1.1. Small list of known events with Bender

When developing FSMs, you should expect to see an even greater list of events and states
to support. As you will see later, as logic errors are common in programming, event errors
are common in FSMs.
Just before we move on, I would like to make a few notes about the selected states above.
States do not have multiple roles. Every time Bender is turned on, the same flow of
direction will always occur. If at any time in your projects there is a breech in that flow, it
would need to be fixed. This is one of the problems with FSMs because sooner or later
someone is going to pick up the pattern. Ways around this would be to add more events to

PDF Creator - PDF4Free v2.0

2 of 5

http://www.pdf4free.com
30/3/2007 21:33

DevMaster.net - An Introduction to Finite State Machines

file:///C:/arquivosdeprogramas/cifras/IRR_HTML_LINHA_DO_COD...

a given situation or randomize the actions performed.

Secondly, states are unique. No two states should have the same reaction to a specified
event. For example, having Bender "speak" and "shout" are synonymous in terms of
speech; therefore we eliminate one while keeping the other and supplement arguments to
dictate how a certain text is pronounced (be it calm, yelling, stutter, etc).
Thirdly, state transitions do not normally branch. By branch I mean through the use of
conditional statements. For example, Bender has a set of movement options. Such
movements can be decided via IF/THEN statements, however it is best to avoid that since
the purpose behind states is to replace the need for IF/THEN statements with events.
Although states are flexible and do allow such conditional operations, it is always best to
avoid them. It reduces complexity and lessens the chance for logic errors.
Now that we have a list of events and states, it is best to draw them out. When you visually
see your model, it is easier to pick out where things may go wrong or where things could
use improvements.
Figure 1.2: Sample state diagram of Bender
This model representation is actually wrong. You should note that in a state, you perform a
certain action and when you leave that state, the action is no longer performed. In this
model, we can only have one state at a time with no transition between them. It is possible
for Bender to both walk and then run, so there should be a link between those two states.
Since there are only a few movement states, the amount of transitions won't be all that
bad. If you were to support a much larger base of states, then you will notice a massive set
of transitions between them, undoubtedly creating confusion. Unfortunately there is no way
around this. Diagrammatically speaking, you could specify a cleaner set of transitions, but
ultimately when you program the states you will still have a complex amount of transitions
to support. Here is another way to represent multiple states a bit cleaner.
Figure 1.3. Simplified State Model
Here we assign a new state Activity that holds all the activities Bender can do with
transitions to itself. This also allows for multiple events to run in parallel so you could walk
and talk at the same time. Inevitably, the programming will still be as complex. Take note
that on events like talk, you would set up timers to display the text for X amount of
seconds. When the timer expires, you would stop talking.
Now that we have a state diagram, we need to examine it further and construct a state
table. A state table is nothing more than a table listing all the states, the actions to get to
them, and the reaction performed by them. For example, when Bender turns on, it puts
itself in the turned on state. From here, it is allowed to conduct various movements and
shut itself down. When in the activity state, it cannot directly shut itself down. So the state
table illustrates to us what and when can Bender perform certain actions.
# Event

Actions

Comment

turnOn

bootUp

Bender is turning on

bootUp

Activity

Allow various activities

walk

goWalk

Bender will begin to walk

run

goRun

Bender will begin to run

talk

say(text)

Bender will say "text"

turnHead

turningHead Bender rotates head

raiseArm

raisingArm

PDF Creator - PDF4Free v2.0

3 of 5

Caused By

Will Effect
2-10

3-8

Bender raises arm (left or

right)

http://www.pdf4free.com
30/3/2007 21:33

DevMaster.net - An Introduction to Finite State Machines

file:///C:/arquivosdeprogramas/cifras/IRR_HTML_LINHA_DO_COD...

lowerArm

laweringArm

Bender lowers arm (left or

right)

stop

powerDown

Bender stops current

action

3-8

shutDown

Bender will shut off

1-9

10 turnOff

Table: 1.2. State Table for Random Scenarios

As you see, defining a complete FSM is an extremely long process and we have not even
done any coding yet! The state table is left incomplete as the number of events and actions
are quite large, but there should be enough presented to illustrate the idea.
Putting it all together, the state diagram helps illustrate what the functionality is like and
the state table defines the types of inputs to those functions and the expected outputs. So,
with a complete state diagram and state table, you have the blueprints to develop your
FSM.

Example - Code
Knowing how to set yourself up for a FSM is one thing, going about programming it is
another. There are many ways to program a FSM, so the method I present here is one that
I just prefer. I tried to comment the code as best as possible so hopefully my coding style
won't be a strain on your eyes =)
How The Code Works:
There are two major classes.
1) State:

The state class is responsible for setting transitions, specifying actions, and
pointing to the right function that represents the action. In this code, a state
supports the 3 preliminary specifications: OnEntry, Do, and OnExit, and
supports an unlimited amount of OnEvent specifications. These specifications
are used to define your actions. This should help you practice with designing
much larger FSMs.

2) FSM:

The FSM class is a collection of states. Its sole purpose is to function as a

controller between states and execute the necessary state actions based on
the events passed to it.

The code does not make use of any conventional programming style. There are no switch
statements and there are no IF/THEN expressions. Everything in the FSM is controlled by
sending the correct events down the pipeline. After that, the FSM will choose the correct
course based on how you configured your states.
Also, I have not placed any fancy reactions in the code (such as guard conditions). I simply
want to demonstrate how state transitions occur and provide a clean and elegant interface
to handling FSMs. Feel free to add new features and reactions to them.
Click here to download the code (.zip)
Code was developed in Visual Studio .NET 2003

Conclusion
Finite State Machines are widely used in video games to supplement AI given its easy
structure and maintenance. When given the problem that requires finite number of
solutions, FSMs are definitely an easy method to approach. Just remember the format to
help you design and develop FSMs.
1) Review the problem. Write down all the entities involved
2) Design a state diagram from the work you did in 1)
3) Review the state diagram. Make sure it meets all the requirements and does not fail
under simple transitions.
4) Develop a state table to clarify the state diagram and correlate to the code.
5) Design the code.

PDF Creator - PDF4Free v2.0

4 of 5

http://www.pdf4free.com
30/3/2007 21:33

DevMaster.net - An Introduction to Finite State Machines

file:///C:/arquivosdeprogramas/cifras/IRR_HTML_LINHA_DO_COD...

Glossary
Here is a list of terminology used throughout the tutorial. If any of these seem unfamiliar to
you, it would be helpful to know what they mean before continuing on with the tutorial.
They are as follows:
1) FSM
2) State
3) Event
4) Action
5)
Transition

A collection of states and transitions that outline a path of actions that may
occur.
A state is a position in time. For example, when you are at the bus stop, you
are currently in a waiting state.
An event is something that happens in time. For example, the bus has
arrived.
A task performed given a certain event that occurred. For example, you enter
the bus.
A link between 2 states. May be unidirectional or bidirectional.

Download source code for this article

Discuss this article in the forums
Print article
2003-2004 DevMaster.net. All Rights Reserved.
Terms of Use & Privacy Policy

PDF Creator - PDF4Free v2.0

5 of 5

Want to write for us? Click here

http://www.pdf4free.com
30/3/2007 21:33
