Workshop 9 Dune Buggy Frame Structure - Vertically Supported With Springs

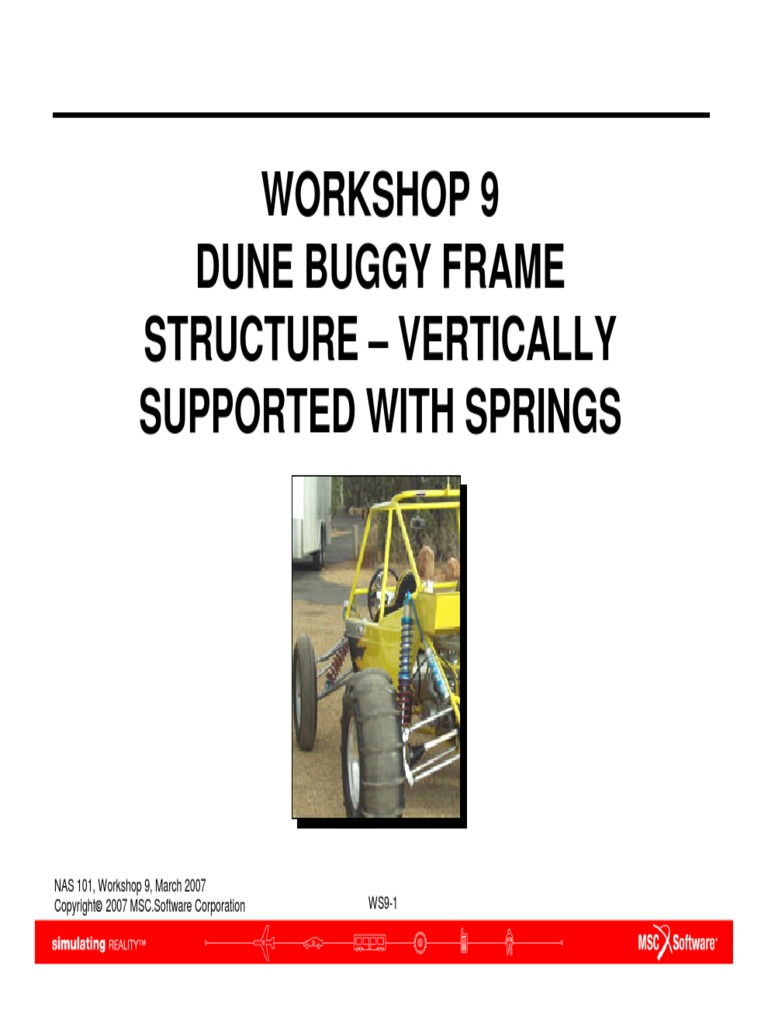

WORKSHOP 9
DUNE BUGGY FRAME

STRUCTURE VERTICALLY
SUPPORTED WITH SPRINGS
NAS 101, Workshop 9, March 2007

Copyright 2007 MSC.Software Corporation
WS9-1
Workshop Objectives:
Run a linear static analysis with springs supporting a structure.
Software Version:
MD Nastran 2007r2
MD Patran 2006r2

WS9-2
Key Concepts and Steps:

1. Input File: Modify an existing MD Nastran input file to add
additional grid points and spring elements.
2. Grids: Create additional grid points coincident with the grids of the
model to be constrained.
3. Elements: Create CBUSH elements to support the frame
structure
4. Properties: Create PBUSH properties for the springs.
5. Analysis: Solution Type = Nastran Linear Static, Solution
Sequence = 101
6. Examine Output Text File: Examine the Nastran output F06 file
7. Analysis: Access analysis results and model data by attaching the
XDB file to a Patran database
8. Results: Plot displacement results

WS9-3
For this workshop, let us represent the vertical supports on
the frame as springs

We will start with a copy of the model from Workshop 3
(3 loading conditions) which is titled wkshp9.bdf
Remove the constraint on GRIDs 1,7,21,26
Add additional GRID points (GRID 901-904) coincident to
GRIDs 1,7,21, and 26.
Constrain these new GRIDs to have 0.0 displacements
Connect GRIDs 1,7,21, 26 to GRID 901-904 with ydirection springs with a stiffness of 100 lb/in.

WS9-4
Below is the entry for the GRID coincident with GRID 1:

GRID
901
120.
17.
0.
Repeat this for GRIDs coincident with GRIDs 7, 21, and 26

Below is the CBUSH element at GRID 1:
CBUSH,100,100,1,901,,,,0
Repeat this for CBUSH elements at GRIDs 7, 21, and 26

The PBUSH entry specifies the spring properties
PBUSH,100,K,0.,100.
An additional SPC1 entry must be specified to constrain
the newly created grid points.

SPC1,10,123456,901,902,903,904

WS9-5
PARTIAL INPUT FILE FOR WORKSHOP 9

$
$ wkshp9.bdf
$
SOL 101
CEND
TITLE = Dune Buggy Frame Analysis
ECHO = NONE
DISP = ALL
SPCFORCE = ALL
FORCE = ALL
STRESS = ALL
SPC = 10
TEMP(INIT) = 20
SUBCASE 1
SUBTITLE=FRAME_LBCs
LOAD = 1
SUBCASE 20
SUBTITLE = THERMAL LOAD
TEMP(LOAD) = 26
SUBCASE 30
SUBTITLE = GRAVITY LOAD
LOAD = 30
BEGIN BULK
PARAM
POST
0
$
$ Create CBUSH Elements
$ Create PBUSH Property
$ Create GRIDs 901 to 904
$ Geometry (Grid Entries)
GRID
1
120.
GRID
2
0.
GRID
3
120.
GRID
4
108.
17.
0.
0.
0.
0.
0.
0.
0.
WS9-6
F06 OUTPUT FILE FOR WORKSHOP 9

WS9-7
DEFORMED PLOT FOR WORKSHOP 9
Point Loads

WS9-8
DEFORMED PLOT FOR WORKSHOP 9 (Cont.)
Thermal Load

WS9-9
DEFORMED PLOT FOR WORKSHOP 9 (Cont.)
Gravity Load

WS9-10
WORKSHOP 9 POST PROCESSING

a
d
Create a new database
a. File: New
b. Enter workshop9 as
the File name
c. Click OK.
d. Select Default
tolerances.
e. Select MD Nastran and

Structural for the
Analysis Code and
Type.
f. Click OK.

WS9-11
Attach results file

a. Analysis: Access Results /
Attach XDB / Both
b. Click Select Results File.
c. Select wkshp9.xdb.
d. Click OK.
e. Click Apply.

e
WS9-12
a
Plot the results
a. Results: Create /
Deformation
b. Select the SC1:
FRAME LBCs
Result Case.
c. Select
Displacements,
Translational as
the Deformation
Result.
d. Click Apply.

WS9-13
a
Plot the results
Deformation
b. Select the SC20:
THERMAL LOAD
Result Case.
c. Select
Displacements,
Translational as
the Deformation
Result.
d. Click Apply.

d
WS9-14
a
Plot the results
Deformation
b. Select the SC30:
GRAVITY LOAD
Result Case.
c. Select
Displacements,
Translational as
the Deformation
Result.
d. Click Apply.

d
WS9-15
SOLUTION FILE FOR WORKSHOP 9

$
$ soln9.bdf
$
SOL 101
CEND
TITLE = Dune Buggy Frame Analysis
ECHO = NONE
DISP = ALL
SPCFORCE = ALL
FORCE = ALL
STRESS = ALL
SPC = 10
TEMP(INIT) = 20
SUBCASE 1
SUBTITLE=FRAME_LBCs
LOAD = 1
SUBCASE 20
SUBTITLE = THERMAL LOAD
TEMP(LOAD) = 26
SUBCASE 30
SUBTITLE = GRAVITY LOAD
LOAD = 30
BEGIN BULK
PARAM
POST
0
$
$ New CBUSH elements and property
CBUSH,100,100,1,901,,,,0
CBUSH,101,100,7,902,,,,0
CBUSH,102,100,21,903,,,,0
CBUSH,103,100,26,904,,,,0
PBUSH,100,K,0.,100.
$
$ New GRIDs
GRID
901
120.
17.
GRID
902
0.
14.
GRID
903
120.
17.
GRID
904
0.
14.
$
0.
0.
-32.
-32.
WS9-16
SOLUTION FILE FOR WORKSHOP 9 (Cont.)

$
$ Nodal Forces of Engine Load
FORCE
100.
0.
-1.
0.
FORCE
17
100.
0.
-1.
0.
FORCE
28
100.
0.
-1.
0.
FORCE
29
100.
0.
-1.
0.
$ Gravity Loading
GRAV
30
386.089
0.
-1.
0.
$Initial Temperature
TEMPD
20
70.
$Load Temperature
TEMPD
26
100.
$ Displacement Constraints of Load Set : vertical

$SPC1
10
21
26
$ Displacement Constraints of Load Set : x_disp

SPC1
10
16
$ Displacement Constraints of Load Set : z_disp

SPC1
10
$
SPC1,10,123456,901,902,903,904
$
ENDDATA

WS9-17

WS9-18
