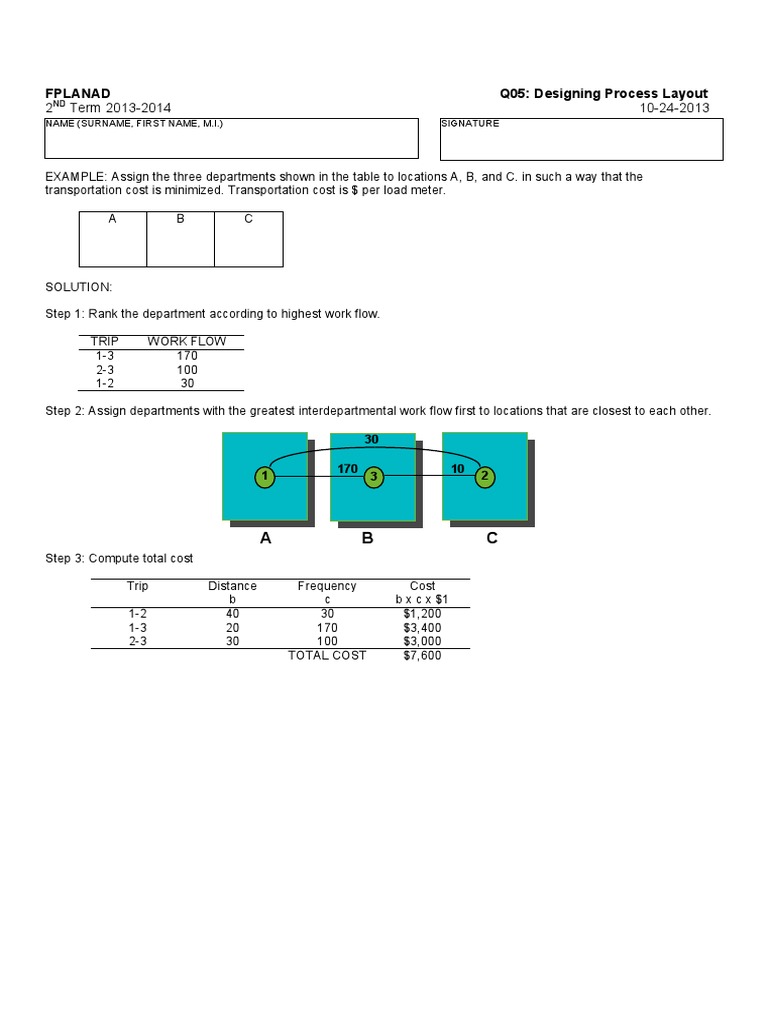

FPLANAD

2ND Term 2013-2014

Q05: Designing Process Layout


10-24-2013
SIGNATURE

NAME (SURNAME, FIRST NAME, M.I.)

EXAMPLE: Assign the three departments shown in the table to locations A, B, and C. in such a way that the
transportation cost is minimized. Transportation cost is $ per load meter.
A

SOLUTION:
Step 1: Rank the department according to highest work flow.
TRIP
1-3
2-3
1-2

WORK FLOW
170
100
30

Step 2: Assign departments with the greatest interdepartmental work flow first to locations that are closest to each other.
30
1

170

10
0

Step 3: Compute total cost


Trip
1-2
1-3
2-3

Distance
b
40
20
30

Frequency
c
30
170
100
TOTAL COST

Cost
b x c x $1
$1,200
$3,400
$3,000
$7,600
