CE 341 Soil Mechanics

D. Esmaili

NJIT
Fall 2016

Homework #1
Distributed:
Due:

Monday, September 12, 2016


Monday, September 19, 2016 (BEGINNING of class)

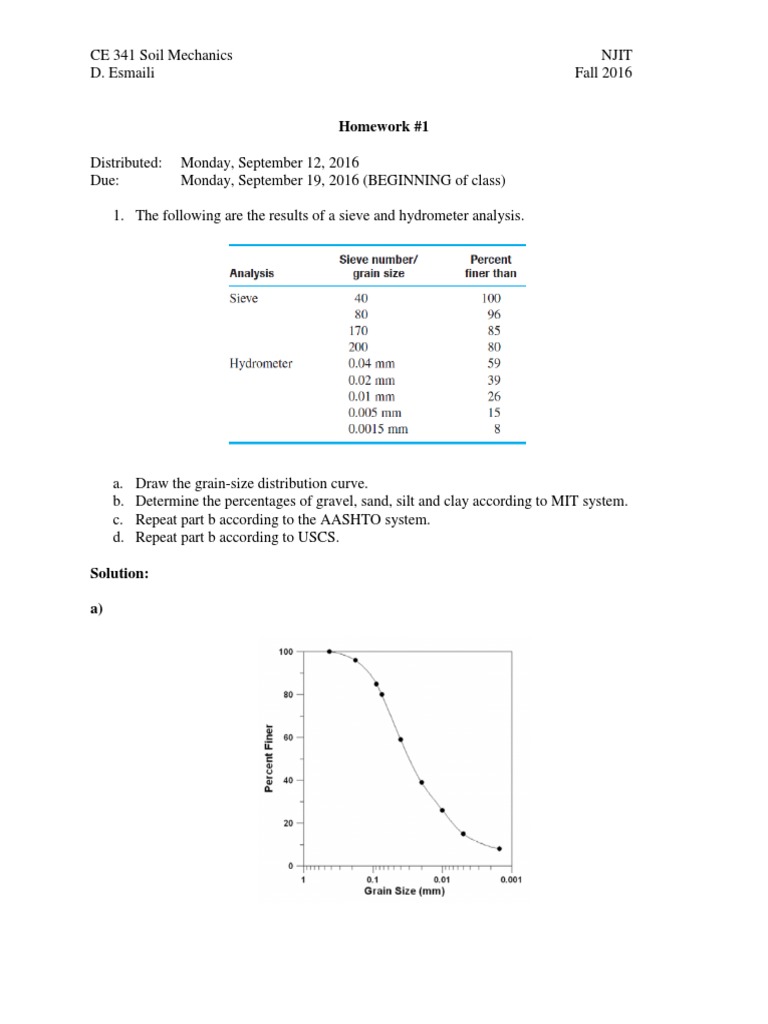

1. The following are the results of a sieve and hydrometer analysis.

a.
b.
c.
d.

Draw the grain-size distribution curve.


Determine the percentages of gravel, sand, silt and clay according to MIT system.
Repeat part b according to the AASHTO system.
Repeat part b according to USCS.

Solution:
a)

CE 341 Soil Mechanics


D. Esmaili

NJIT
Fall 2016

b)
Percent passing 2 mm = 100
Percent passing 0.06 mm = 73
Percent passing 0.002 mm = 9

GRAVEL: 100 100 = 0%


SAND: 100 73 = 27%
SILT: 73 9 = 64%
CLAY: 9 0 = 9%

c)
Percent passing 2 mm = 100
GRAVEL: 100 100 = 0%
Percent passing 0.075 mm = 80 SAND: 100 80 = 20%
Percent passing 0.002 mm = 9
SILT: 80 9 = 71%
CLAY: 9 0 = 9%
d)
Percent passing 4.75 mm = 100 GRAVEL: 100 100 = 0%
Percent passing 0.075 mm = 80 SAND: 100 80 = 20%
CLAY + SILT: 80 0 = 80%

2. A hydrometer test has the following result: = 2.75, temperature of water = 23C, and
L = 12.8 cm at 100 min after the start of sedimentation. What is the diameter D of the
smallest-size particles that have settled beyond the zone of the measurement at that time
(that is t = 100 min)?
Solution:
Gs = 2.75; temperature = 23C; time = 100 min; L = 12.8 cm
()
() =
(min)
Using Table 2.6 in textbook, for Gs = 2.75 and temperature = 23C, K= 0.01279

12.8
= 0.01279
= 0.0046
100

CE 341 Soil Mechanics


D. Esmaili

NJIT
Fall 2016

3. Results from liquid and plastic limit tests conducted on a soil are given below.
Liquid limit tests:

Plastic limit tests: PL= 19.1%


a. Draw the flow curve and obtain the liquid limit.
b. What is the plasticity index of the soil.
c. Determine the liquidity index of the soil if = 21%.
Solution:
a)

From the plot, at N=25, is 23.6%. therefore, LL=23.6.


b) PI = LL PL = 23.6 19.1 = 4.5
c) =

2119.1
23.619.1

= 0.422
