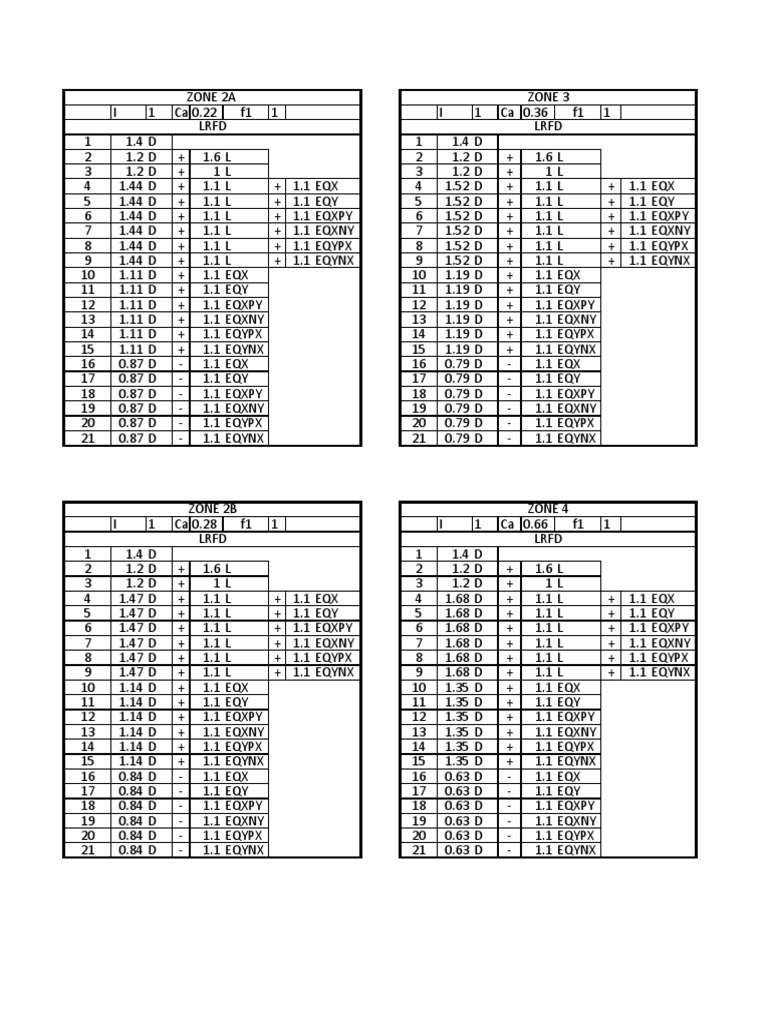

ZONE2A ZONE3

I 1 Ca 0.22 f1 1 I 1 Ca 0.36 f1 1
LRFD LRFD
1 1.4 D 1 1.4 D
2 1.2 D + 1.6 L 2 1.2 D + 1.6 L
3 1.2 D + 1 L 3 1.2 D + 1 L
4 1.44 D + 1.1 L + 1.1 EQX 4 1.52 D + 1.1 L + 1.1 EQX
5 1.44 D + 1.1 L + 1.1 EQY 5 1.52 D + 1.1 L + 1.1 EQY
6 1.44 D + 1.1 L + 1.1 EQXPY 6 1.52 D + 1.1 L + 1.1 EQXPY
7 1.44 D + 1.1 L + 1.1 EQXNY 7 1.52 D + 1.1 L + 1.1 EQXNY
8 1.44 D + 1.1 L + 1.1 EQYPX 8 1.52 D + 1.1 L + 1.1 EQYPX
9 1.44 D + 1.1 L + 1.1 EQYNX 9 1.52 D + 1.1 L + 1.1 EQYNX
10 1.11 D + 1.1 EQX 10 1.19 D + 1.1 EQX
11 1.11 D + 1.1 EQY 11 1.19 D + 1.1 EQY
12 1.11 D + 1.1 EQXPY 12 1.19 D + 1.1 EQXPY
13 1.11 D + 1.1 EQXNY 13 1.19 D + 1.1 EQXNY
14 1.11 D + 1.1 EQYPX 14 1.19 D + 1.1 EQYPX
15 1.11 D + 1.1 EQYNX 15 1.19 D + 1.1 EQYNX
16 0.87 D 1.1 EQX 16 0.79 D 1.1 EQX
17 0.87 D 1.1 EQY 17 0.79 D 1.1 EQY
18 0.87 D 1.1 EQXPY 18 0.79 D 1.1 EQXPY
19 0.87 D 1.1 EQXNY 19 0.79 D 1.1 EQXNY
20 0.87 D 1.1 EQYPX 20 0.79 D 1.1 EQYPX
21 0.87 D 1.1 EQYNX 21 0.79 D 1.1 EQYNX

ZONE2B ZONE4
I 1 Ca 0.28 f1 1 I 1 Ca 0.66 f1 1
LRFD LRFD
1 1.4 D 1 1.4 D
2 1.2 D + 1.6 L 2 1.2 D + 1.6 L
3 1.2 D + 1 L 3 1.2 D + 1 L
4 1.47 D + 1.1 L + 1.1 EQX 4 1.68 D + 1.1 L + 1.1 EQX
5 1.47 D + 1.1 L + 1.1 EQY 5 1.68 D + 1.1 L + 1.1 EQY
6 1.47 D + 1.1 L + 1.1 EQXPY 6 1.68 D + 1.1 L + 1.1 EQXPY
7 1.47 D + 1.1 L + 1.1 EQXNY 7 1.68 D + 1.1 L + 1.1 EQXNY
8 1.47 D + 1.1 L + 1.1 EQYPX 8 1.68 D + 1.1 L + 1.1 EQYPX
9 1.47 D + 1.1 L + 1.1 EQYNX 9 1.68 D + 1.1 L + 1.1 EQYNX
10 1.14 D + 1.1 EQX 10 1.35 D + 1.1 EQX
11 1.14 D + 1.1 EQY 11 1.35 D + 1.1 EQY
12 1.14 D + 1.1 EQXPY 12 1.35 D + 1.1 EQXPY
13 1.14 D + 1.1 EQXNY 13 1.35 D + 1.1 EQXNY
14 1.14 D + 1.1 EQYPX 14 1.35 D + 1.1 EQYPX
15 1.14 D + 1.1 EQYNX 15 1.35 D + 1.1 EQYNX
16 0.84 D 1.1 EQX 16 0.63 D 1.1 EQX
17 0.84 D 1.1 EQY 17 0.63 D 1.1 EQY
18 0.84 D 1.1 EQXPY 18 0.63 D 1.1 EQXPY
19 0.84 D 1.1 EQXNY 19 0.63 D 1.1 EQXNY
20 0.84 D 1.1 EQYPX 20 0.63 D 1.1 EQYPX
21 0.84 D 1.1 EQYNX 21 0.63 D 1.1 EQYNX
