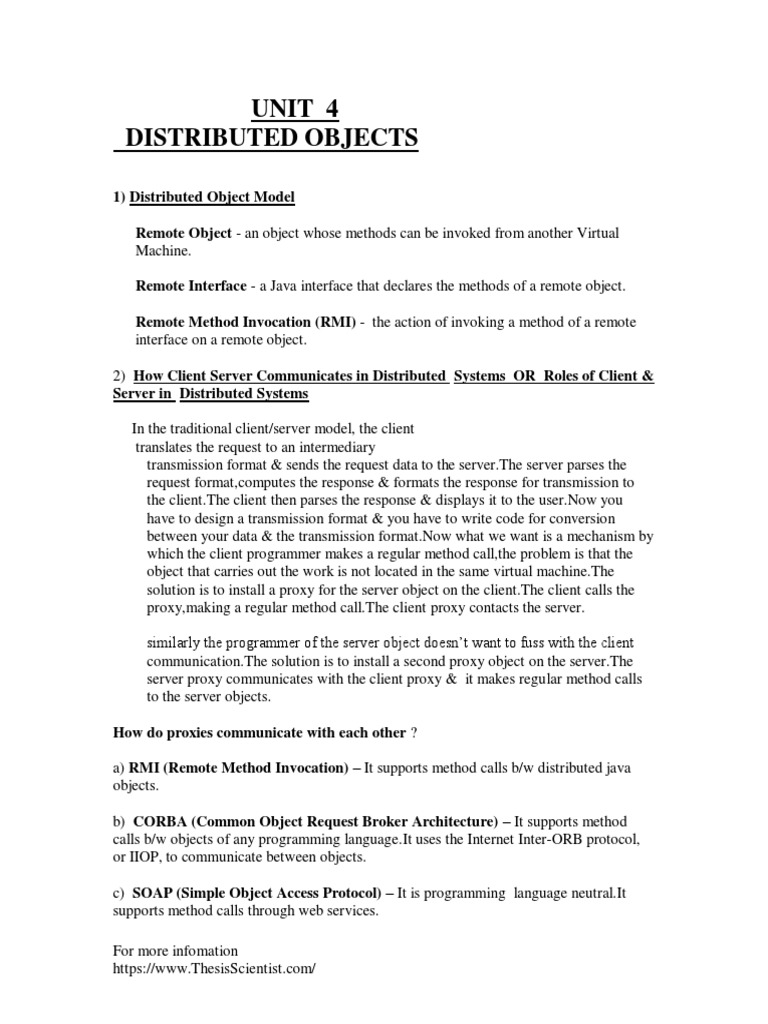

UNIT 4

DISTRIBUTED OBJECTS

1) Distributed Object Model

Remote Object - an object whose methods can be invoked from another Virtual
Machine.

Remote Interface - a Java interface that declares the methods of a remote object.

Remote Method Invocation (RMI) - the action of invoking a method of a remote

interface on a remote object.

2) How Client Server Communicates in Distributed Systems OR Roles of Client &

Server in Distributed Systems

In the traditional client/server model, the client

translates the request to an intermediary
transmission format & sends the request data to the server.The server parses the
request format,computes the response & formats the response for transmission to
the client.The client then parses the response & displays it to the user.Now you
have to design a transmission format & you have to write code for conversion
between your data & the transmission format.Now what we want is a mechanism by
which the client programmer makes a regular method call,the problem is that the
object that carries out the work is not located in the same virtual machine.The
solution is to install a proxy for the server object on the client.The client calls the
proxy,making a regular method call.The client proxy contacts the server.

similarly the programmer of the server object doesnt want to fuss with the client
communication.The solution is to install a second proxy object on the server.The
server proxy communicates with the client proxy & it makes regular method calls
to the server objects.

How do proxies communicate with each other ?

a) RMI (Remote Method Invocation) It supports method calls b/w distributed java
objects.

b) CORBA (Common Object Request Broker Architecture) It supports method

calls b/w objects of any programming language.It uses the Internet Inter-ORB protocol,
or IIOP, to communicate between objects.

c) SOAP (Simple Object Access Protocol) It is programming language neutral.It

supports method calls through web services.

For more infomation

https://www.ThesisScientist.com/
3) Remote Method Invocation (RMI)

If you have an access to an object on a different machine,

you can call methods of the remote object.of course, the method parameters must
somehow be shipped to the other machine,the server must be informed to execute the
method & the return value must be shipped back.

In RMI, the object whose methods makes the remote call is called the client object.
The remote object is called the server object.The computer running the java code
that calls the remote method is the client for that call.
The computer hosting the object that processes the call is the server for that call.

Registration (binding)
A server can register its remote objects with a naming
service the rmiregistry.Once registered, each remote
object has a unique URL.

Obtaining a remote object reference.

A client can use the naming service to lookup a URL to obtain a remote object
reference.
The application can pass and return remote object references as part of its
operation.

Stubs & Parameter Marshalling :

when client code invokes a remote method on a remote object, it actually calls an
ordinary method on a proxy object called a stub.The stub resides on the client
machine.The stub packages the parameters used in the remote method into a block of
bytes. This packaging uses a device independent encoding for each parameter.
The process of encoding the parameters is called parameter marshalling.The Purpose
of parameter marshalling is to convert the parameters into a format suitable for
transport from one m/c to another.

Stub functions include:

a) Initiating a call to the remote object.
b) A description of the method to be called.
c) The marshalled parameters.
d) Unmarshals the return value or exception from the
server.

e) Return value to the caller.

Skeleton

A proxy object on server side is called Skeleton.

For more infomation

https://www.ThesisScientist.com/
Skeleton function includes:

a) It unmarshals the parameters.

b) It locates the object to be called.
c) It calls the desired method.
d) It captures & marshals the return value or
exception of the call.
e) Returns marshalled data back to the stub.
( draw diagram of this on page no.282)

This process is complex, but it is completely automatic & to a large extent transparent to
the programmer.

Dynamic Class Loading

When u pass a remote object to another program, either as

a parameter or return value of a remote method, then
that program must have the class file for that object.

For ex: consider a method with return type Product.The client program needs the class
file product.class to compile,but now suppose server constructs & return Book object &
Book is a subtype of Product.Client have no idea where to find the class file
Book.class. Therefore a class loader that will load required classes from the server is
required.RMI uses a special RMIClassLoader that loads at runtime the classes required
for remote invocations.whenever a program loads new code from another network
location,there is a security issue.For that reason,you need to use a security manager in
RMI client applications.This is a safety mechanism that protects the program from
viruses in stub code.For specialized applications,programmers can substitute their own
class loaders & security managers.

For more infomation

https://www.ThesisScientist.com/
 RMI Architecture

Client Virtual Machine Server Virtual Machine

Client Remote
Object

Skeleton
Stub Server

Registry Virtual Machine

RmiRegistry

For more infomation

https://www.ThesisScientist.com/
 RMI Flow

1. Server Creates
Client Virtual Remote Object
Machine Server Virtual Machine
2. Server Registers Remote Object
Client Remote
Object

1
Skeleton
Stub Server

RmiRegistry

Registry Virtual Machine

For more infomation

https://www.ThesisScientist.com/
 RMI Flow

Client Virtual Machine Server Virtual Machine

Client Remote
3. Client requests object from Registry
Object
4. Registry returns remote reference
(and stub gets created)
Skeleton
Stub Server
3 4

RmiRegistry

Registry Virtual Machine

For more infomation

https://www.ThesisScientist.com/
 RMI Flow

Client Virtual Machine Server Virtual Machine

Client Remote
Object
5 7

6
Skeleton
Stub Server

5. Client invokes stub method

6. Stub talks to skeleton
7. Skeleton invokes remote object
methodFred

Registry Virtual Machine

4) Setup for Remote Method Invocation (RMI)

1) Defining a remote interface.

2) Implementing the remote interface.
3) Write the server program to create server objects.
4) Write the client program that uses the remote object.
5) Generating stubs & skeletons.
6) Starting the registry & registering the objects
7) Running the server & client.

1. Define the Remote Interface

Your client program needs to manipulate server objects,but it doesnot actually have
copies of all of them.
The objects themselves reside on the server.The client code must still know what it
can do with those objects.Their capabilities are expressed in an interface that is shared
between the client & server & so resides simulateneously on both machines.

For more infomation

https://www.ThesisScientist.com/
 To define the remote service, we write a remote interface.All interfaces for remote
objects must extend Remote interface defined in java.rmi package.
All methods in those interfaces may throw a RemoteException.Such exceptions are
thrown during a remote method call if there is a network problem

import java.rmi.*;
public interface Hello extends Remote
{
public String sayHello() throws RemoteException;
}

2. Implementing the Remote Interface

On the server side,you must implement the class that

actually carries out the methods advertised in the remote interface.Declare the remote
interface being implemented.
You can tell that the class is a server for remote methods because it extends
UnicastRemoteObject,which is a concrete java class that makes objects remotely
accessible. A UnicastRemoteObject object resides on a server.This is the class that we
extend for all the server classes.Define a constructor for the remote object.
Give an implementation for each method on the remote interface.By convention, the
name of a class implementing an interface refers to the name of the interface and is
ended by Impl.

import java.rmi.*;
import java.rmi.server.*;
public class HelloImpl extends UnicastRemoteObject
implements Hello
{
public HelloImpl() throws RemoteException
{
super();
}
public String sayHello() throws RemoteException
{
return "Hello! How r u? ";
}
}

3. Server Program

import java.rmi.*;
import java.rmi.server.*;

For more infomation

https://www.ThesisScientist.com/
public class HelloServer
{
public static void main(String args[])
{
try
{
Hello h=new HelloImpl();
Naming.rebind("server",h);
System.out.println("object is registered");
System.out.println("now server is waiting");
}
catch(Exception e)
{
System.out.println("error:"+e);
}
}

Locating Server Objects

To access a remote object that exists on the server,the client needs a local stub
object.Then how can a client request such a stub? The most common method is to call
a remote method of another server object & get a stub object as a return value.
A server programs registers objects with the bootstrap registry service & the client
retrieves stubs to those objects.You register a server object by giving the bootstrap
registry service a reference to the object & a name.
RMI URLs start with rmi:// & are followed by a server, an optional port number,
another slash, & the name of the remote object. Eg:
rmi://localhost:99:port/central_warehouse

For security reasons,an application can bind,unbind or rebind registry object refrences
only if it runs on the same host as the registry.
Registry used for client bootstraping to get the initial reference.

java.rmi.Naming
a) registry access
b) URL format : prot://host:port/name
c) default protocol : rmi
d) default host : localhost
e) default port : 1099
f) all static methods:
void bind(String name, Remote obj);
void rebind(String name, Remote obj);
void unbind(String name); // unbinds the name
Remote lookup(String url); // returns a stub

For more infomation

https://www.ThesisScientist.com/
5) Parameter Passing in Remote Methods

There are two ways of passing parameters in remote methods:

1) Passing Non remote Methods -

When a remote object is passed from the server to the client, the client receives a
stub. Using the stub, it can manipulate the server object by invoking remote methods.
The object, however stays on the server. It is also possible to pass & return any
objects with a remote method call, not just those that implements the Remote
interface. The client gets a copy of the string. Then, after the call, the client has its
own string object to work with.
This means that there is no need for any further connection to any object on the server
to deal with that string.
Whenever an object that is not a remote object needs to be transported from one Java
virtual machine to another, the Java virtual machine makes a copy & sends the copy
across the network connection. This technique is very different from parameter
passing in a local method. When u pass objects into a local method or return them as
method results, only object references are passed. However, object references are
memory addresses of objects in the local java virtual machine. This information is
meaningless to a different java virtual machine. The RMI mechanism can also make
copies of more complex objects, provided they are serializable.RMI uses the
serialization mechanism to send objects across a network. This means that only the
information in any classes that implement the serializable.
Eg: An object of type customer is then sent to the server.
Because customer is not a remote object, a copy of the object is made on the server.
The server program sends back an array list of products. The array list contains those
products that match the customer profile & it always contains that one item namely, a
copy of the book core java. Again ArrayList is not a remote class, so the array list is
copied from the server back to its client.

2) Passing Remote Objects

In remote passing objects, the client receives a stub object, then saves it in an object
variable with the same type as the remote interface. The client can now access the
actual object on the server through the variable. The client can copy this variable in
its own local machine all those copies are simply references to the same stub. Only
remote interfaces can be accessed through the stub. A remote interface is any
interface extending Remote. All local methods are inaccessible through the stub. A
local method is any method that is not defined in a remote interface. Local methods
can run only on the virtual machine containing the actual object.
Stubs are generated only from classes that implement a remote interface & only the
methods specified in the interfaces are provided in the stub classes. If a subclass
doesnt implement a remote interface but a superclass does, & an object of the
subclass is passed to a remote method, only the superclass methods are accessible. A
remote class can implement multiple interfaces. For Eg:

For more infomation

https://www.ThesisScientist.com/
 interface StockUnit extends Remote
{
public String getStockCode() throws RemoteException;
}

Class BookImpl extends ProductImpl implements StockUnit

{
public BookImpl(String title, String theISBN, int age1, int age2, String hobby) throws
RemoteException
{
super(title + Book , age1, age2, hobby) ;
ISBN =theISBN;
}

public String getStockCode() throws RemoteException

{
Return ISBN;
}

private String ISBN ;

}

Now when a book object is passed to a remote method, the recipient obtains a stub that
has access to the remote methods in both the Product & the StockUnit class.

Cloning Remote Objects

Stubs do not have a clone method, so you cannot clone a remote object by invoking
clone on the stub. The reason is:
If clone were to make a remote call to tell the server to clone the implementation object,
then the clone method would need to throw a RemoteException.

6) Server Object Activation

We used a server program to instantiate & register objects so that the clients could
make remote calls on them. However in some cases, it may be wasteful to instantiate
lots of server objects & have them wait for connections, whether or not client objects
use them. The activation mechanism lets you delay the object construction so that a
server object is only constructed when atleast one client invokes a remote method on
it.

To take advantage of activation, the client code is completely unchanged. The client
simply requests a remote reference & make calls through it.

For more infomation

https://www.ThesisScientist.com/
 However the server program is replaced by an activation program that constructs
activation descriptors of the objects that are to be constructed at a later time, 7 binds
receivers for remote method calls with the naming service. When a call is made for
the first time, the information in the activation descriptor is used to construct the
object.
A server object that is used in this way should extend the Activable class &
implement one or more remote interfaces. For ex:

Class ProductImpl extends Activable implements Product

{

}
You must provide a constructor that takes two parameters:

a) An activation ID
b) A single object containing all construction information wrapped in a
MarshallObject.

When you place a serialized (or marshalled) copy of the construction information inside
the activation descriptor. Your server object constructor should use the get method of the
MarshalledObject class to deserialize the construction information.

To construct the activation descriptors, you need the following:

a) The activation group ID for the virtual machine
which the object should be constructed.

b) The name of the class

c) The URL string from which to load the class files.
d) The marshalled construction information.

Pass the descriptor to the static Activable.register method.

It returns an object of some class that implements the
remote interfaces of the implementation class.You can
bind that object with the naming service:

Product p = (Product) Activable.register(desc);

namingContext.bind(toaster, p) ;

The activation program exits after registerin & binding the activation receivers. The
server objects are constructed only when the first remote method call occurs.

7) CORBA
CORBA lets u make calls between objects written in any language. CORBA is an
industry standard for distributed object computing, developed by Object Management
Group (OMG).

For more infomation

https://www.ThesisScientist.com/
 CORBA depends on having an ORB(Object Request Broker) available on both client
& server. ORB act as a kind of universal translator for interobject CORBA
communication.
It Provides a set of common services eg: create, copy, move or destroy objects, to a
naming service that allows you to search for objects if you know their name.

How CORBA differ from RMI:

RMI is Java-only.
RMI is not an industry standard (it is a product of Sun).
RMI does not provide such a rich set of services.
RMI is simpler to use and integrates smoothly with Java.

Steps for Implementing CORBA objects

1) Write the Interface that specifies how the object works,

using IDL, the interface definition language for defining
CORBA interfaces. IDL is a special language to specify
interfaces in a language neutral form.

2) Using the IDL complier for the target language(s),

generate the needed stub & helper classes.

3) Add the implementation code for the server objects,

using the language of your choice. Compile the
implementation code.

4) Write a server program that creates & registers the

server objects.The most convenient method for
registration is to use the CORBA naming service, a service that is similar to
rmiregistry.

5) Write a client program that locates the server objects

invokes services on them.

6) Start server program on server & client program on

client.

A CORBA Example

1) first you initialize the ORB.The ORB is a code library that knows how to talk
to other ORBs & how to marshal & unmarshal parameters.

ORB orb = ORB.init(args , null) ;

2) Next , you locate the naming service that helps you
locate other objects.However in CORBA, the

For more infomation

https://www.ThesisScientist.com/
 naming service is just another CORBA object.To
call the naming service, you first need to locate
it.The call
String [] services = orb.list_initial_services();
lists the name of the standard services to which the
ORB can connect.

3) To obtain an object reference to the service, you use

the resolve_initial_references method.It returns a
generic CORBA object, an instance of the class org.
corba.Object.

org.omg.CORBA.Object
object=orb.resolve_initial_references(NameService);

4) Convert this reference to a NamingContext reference so that you can invoke

the methods of the NamingContext interface.

NamingContext namingcontext=NamingContextHelper.narrow(object);

5) Now you have the naming context, you can use it to

locate the object that the server placed into it.The naming context associates names
with server objects.

6) A name component consists of an ID & a kind.The

ID is a name for the component & Kind is some indication of the type of the
component.

IDL (Interface Definition Language)

IDL specifies interfaces b/w CORBA objects.

CORBA is language independent, bcoz interfaces described in IDL can be mapped to
any programming language.
A client written in c++ can communicate with server written in java.

IDL syntax is :
interface Product {
string getDescription();
};

Differences b/w IDL & java :

a) The interface definition ends with a semicolon.

b) string is written in lower case.
c) In CORBA, the string contain only 8 bit characters,

For more infomation

https://www.ThesisScientist.com/
 whereas in java programming language, string
contains 16 bit Unicode characters.

IDL compiler generates a number of other source files the stub class for
communicating with the ORB & three helper classes.

IDL compiler generates a class with suffix Holder for every interface. for ex: when a
Product interface is compiled, it automatically generates a ProductHolder class.
In IDL you can use sequence construct to define an arrays of variable size.u must
define a type before u can declare sequence parameters. Ex:
interface Warehouse {
ProductSeq find(Customer c);
};

IDL can contain constants also. Ex:

interface Warehouse {
const int SOLD_OUT =404;
};

In IDL, u can group definitions of interfaces,types,exceptions & constants into modules.

Ex:
module corejava {
interface Product {

};
interface Warehouse {

};
};

8 Remote Method Calls with SOAP (Simple Object

Access Protocol)

SOAP is an XML protocol, like CORBAs IIOP ,that provides a protocol for
invoking remote methods.
In recent years, web services have emerged as a popular technology for remote
method calls.

A web service has two components:

a) A server can be accessed with SOAP transport
protocol.
b) A description of the service in the Web
Description Language (WSDL) format.

For more infomation

https://www.ThesisScientist.com/
 A primary attraction of web services is that they are language neutral.

WSDL:
WSDL is analogous to IDL.It describes the interface of the web service, the methods
that can be called & their parameter & return types.
The WSDL descriptor describes the services in a language independent manner.For
Ex: the WSDL for the Amazon web services (located at
http://soap.amazon.com/schemas3/AmazonWebServices.wsdl) describes an
AuthorSearchRequest operation.

To make web services easy to understand, we look at an example :

The Amazon web service allows a programmer to interact with the Amazon system for a
wide variety of purposes.For ex: you can get listings of all books with a given author or
title, or you can fill shopping carts & place orders.Amazon makes this service available
for use by companies that want to sell items to their customers, using the Amazon
systems as a fulfillment backend.

(draw diagram on page no 337)

For more infomation

https://www.ThesisScientist.com/
