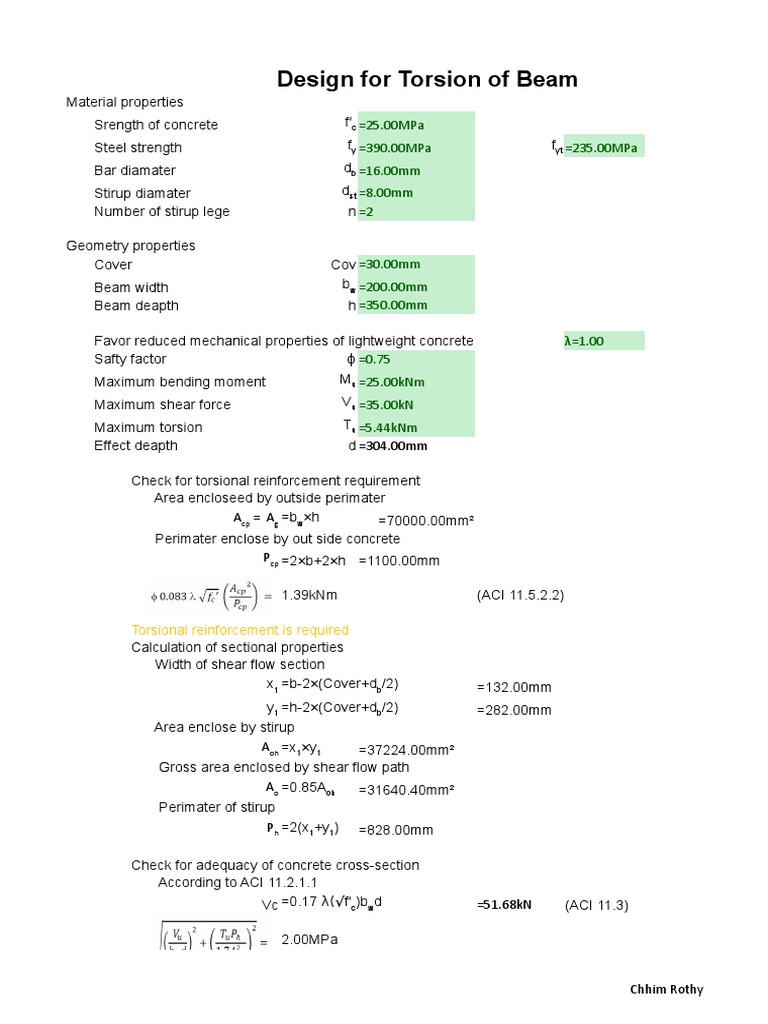

Design for Torsion of Beam

Material properties
Srength of concrete f'c =25.00MPa
Steel strength fy =390.00MPa fyt =235.00MPa
Bar diamater db =16.00mm
Stirup diamater dst =8.00mm
Number of stirup lege n =2

Geometry properties
Cover Cov =30.00mm
Beam width bw =200.00mm
Beam deapth h =350.00mm

Favor reduced mechanical properties of lightweight concrete λ=1.00


Safty factor ϕ =0.75
Maximum bending moment Mu =25.00kNm
Maximum shear force Vu =35.00kN
Maximum torsion Tu =5.44kNm
Effect deapth d =304.00mm

Check for torsional reinforcement requirement


Area encloseed by outside perimater
Acp = Ag =bw×h =70000.00mm²
Perimater enclose by out side concrete
Pcp =2×b+2×h =1100.00mm

1.39kNm (ACI 11.5.2.2)

Torsional reinforcement is required


Calculation of sectional properties
Width of shear flow section
x1 =b-2×(Cover+db/2) =132.00mm
y1 =h-2×(Cover+db/2) =282.00mm
Area enclose by stirup
Aoh =x1×y1 =37224.00mm²
Gross area enclosed by shear flow path
Ao =0.85Aoh =31640.40mm²
Perimater of stirup
Ph =2(x1+y1) =828.00mm

Check for adequacy of concrete cross-section


According to ACI 11.2.1.1
Vc =0.17 λ(√f'c)bwd =51.68kN (ACI 11.3)

2.00MPa

Chhim Rothy
3.11MPa

Acording to (ACI 11.18)

(ACI 11.5.3.1)

2N/mm²<3.11N/mm²Section is Sufficient to support Tu

Transverse torsional reinforcement

7.25kNm

(ACI 11.21) (ϕ=45o)

⟹ Tnu*10^6/2/Ao/fyt/1= 0.49mm²/mm For one leg of stirrup

Shear reinforcement

25.84kN <Vu=35kN

-5.01kN

-0.04mm²/mm

Calculate require spacing for shear


Area of stirup section

nd 2 st
Av   100.53 mm²
4
Av f yt d
Sreq   ###
Vs
Chose minimume reinforcement for Vu<ØVc and maximum spacing
Reinforcement is minimum and maximum spacing

= 378.00 mm

= 342.39 mm

Smax1  min(d / 4,300mm)  76.00 mm

S max2  min(d / 2,600mm)  152.00 mm

Design of Stirrups for shear and torsion

Chhim Rothy
0.93mm²/mm For 2 legs of stirrups

Using Stirrup Ø=8mm; ⟹Ast=50.27mm²

Spacing
nAst
s  107.73mm
2 At Av

s s
IF Reinforcement is minimum and maximum spacing,MIN(378,342.39)mm
IF(AND(2×Vc<Vs,Vs<4×Vc),MIN(Sreqire,Smax1),IF(AND(2×Vc>Vs,Vs<4×Vc),
MIN(Smax2,Sreqire),Section is need to Increase)))
1. S 342.39 mm (For shear)
2. Smax 3  300.00 mm (ACI 11.5.6.1)
3. Smax 4  Ph/8 = 103.50 mm

Provide spacing of stirup is equal to min(S,Smax,Smax3,Smax4)


Sprovide= 103.50 mm
Design of Longitudinal Reinforcement

243.35mm² (ACI 11.5.3.7)

0.149mm²/mm

= 133.57mm² (ACI 11.5.5.3)

Provide Area of Al=max(Al,Al(min)) =243.35mm²
