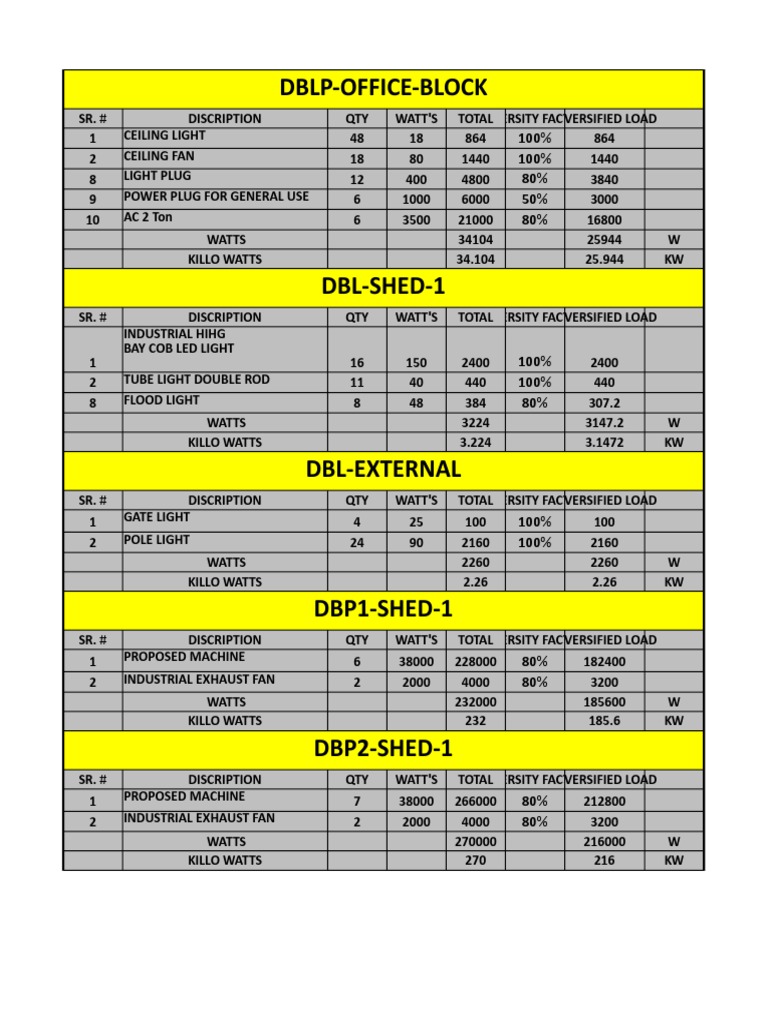

DBLP-OFFICE-BLOCK

SR. # DISCRIPTION QTY WATT'S TOTAL


DIVERSITY FACTOR
DIVERSIFIED LOAD
1 CEILING LIGHT 48 18 864 100% 864
2 CEILING FAN 18 80 1440 100% 1440
8 LIGHT PLUG 12 400 4800 80% 3840
9 POWER PLUG FOR GENERAL USE 6 1000 6000 50% 3000
10 AC 2 Ton 6 3500 21000 80% 16800
WATTS 34104 25944 W
KILLO WATTS 34.104 25.944 KW

DBL-SHED-1
SR. # DISCRIPTION QTY WATT'S TOTAL
DIVERSITY FACTOR
DIVERSIFIED LOAD
INDUSTRIAL HIHG
BAY COB LED LIGHT
1 16 150 2400 100% 2400
2 TUBE LIGHT DOUBLE ROD 11 40 440 100% 440
8 FLOOD LIGHT 8 48 384 80% 307.2
WATTS 3224 3147.2 W
KILLO WATTS 3.224 3.1472 KW

DBL-EXTERNAL
SR. # DISCRIPTION QTY WATT'S TOTAL
DIVERSITY FACTOR
DIVERSIFIED LOAD
1 GATE LIGHT 4 25 100 100% 100
2 POLE LIGHT 24 90 2160 100% 2160
WATTS 2260 2260 W
KILLO WATTS 2.26 2.26 KW

DBP1-SHED-1
SR. # DISCRIPTION QTY WATT'S TOTAL
DIVERSITY FACTOR
DIVERSIFIED LOAD
1 PROPOSED MACHINE 6 38000 228000 80% 182400
2 INDUSTRIAL EXHAUST FAN 2 2000 4000 80% 3200
WATTS 232000 185600 W
KILLO WATTS 232 185.6 KW

DBP2-SHED-1
SR. # DISCRIPTION QTY WATT'S TOTAL
DIVERSITY FACTOR
DIVERSIFIED LOAD
1 PROPOSED MACHINE 7 38000 266000 80% 212800
2 INDUSTRIAL EXHAUST FAN 2 2000 4000 80% 3200
WATTS 270000 216000 W
KILLO WATTS 270 216 KW
CHENSIN FAISLABAD

ELECTRICAL LOAD AND


SELECTION OF TRANSFORMERS

Load/Floor Diversity
Description (Wattage) Load (Kw)

DBLP-OFFICE-BLOCK 25944.00 25.944


DBL-SHED-1 3147.20 3.1472
DBL-EXTERNAL 2260.00 2.26
DBP1-SHED-1 185600.00 185.6
DBP2-SHED-1 216000.00 216

Demand Load 433


Derating factor for Transformers Capacity at 400C 492
Ambient Temperature
Net Demand Load In0.88
KVA at P.F 0.8 615

Required KVA of Generator @ 80% Loading 769
