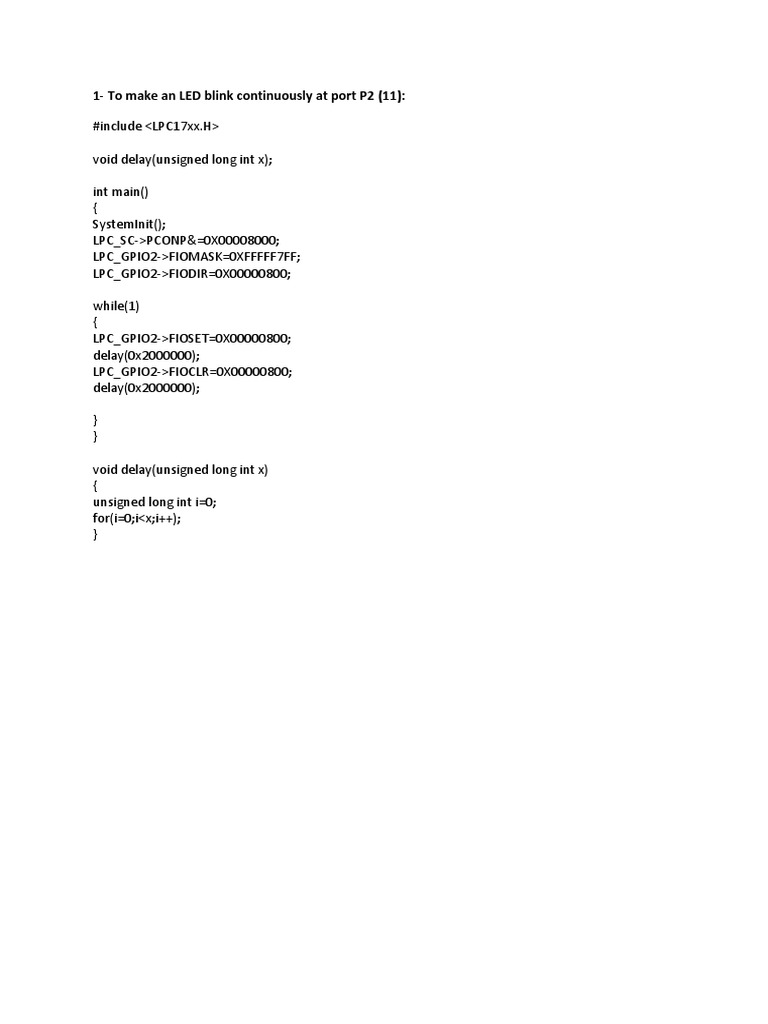

    1- To make an LED blink continuously at port P2 (11):

    #include <LPC17xx.H>

    void delay(unsigned long int x);

    int main()
    {
    SystemInit();
    LPC_SC->PCONP&=0X00008000;
    LPC_GPIO2->FIOMASK=0XFFFFF7FF;
    LPC_GPIO2->FIODIR=0X00000800;

    while(1)
    {
    LPC_GPIO2->FIOSET=0X00000800;
    delay(0x2000000);
    LPC_GPIO2->FIOCLR=0X00000800;
    delay(0x2000000);

    }
    }

    void delay(unsigned long int x)


    {
    unsigned long int i=0;
    for(i=0;i<x;i++);
    }
    2- To blink 3 LEDs continuously connected at port P2 (11, 12 & 13), use ports with byte access:

    #include <LPC17xx.H>

    void delay(unsigned long int x);

    int main()
    {
    SystemInit();
    LPC_SC->PCONP&=0X00008000;
    LPC_GPIO2->FIOMASK1=0XC7;
    LPC_GPIO2->FIODIR1=0X38;

    while(1)
    {
    LPC_GPIO2->FIOSETH=0X38;
    delay(0x2000000);
    LPC_GPIO2->FIOCLRH=0X38;
    delay(0x2000000);

    }
    }

    void delay(unsigned long int x)


    {
    unsigned long int i=0;
    for(i=0;i<x;i++);
    }
    3- To blink 8 LEDs continuously connected at port P0 (21 to 28), use all the registers of GPIO as half
    word size:

    #include <LPC17xx.H>

    void delay(unsigned long int x);

    int main()
    {
    SystemInit();
    LPC_SC->PCONP&=0X00008000;
    LPC_GPIO0->FIOMASKH=0XE01F;
    LPC_GPIO0->FIODIRH=0X1FE0;

    while(1)
    {
    LPC_GPIO0->FIOSETH=0X1FE0;
    delay(0x500000);
    LPC_GPIO0->FIOCLRH=0X1FE0;
    delay(0x500000);

    }
    }

    void delay(unsigned long int x)


    {
    unsigned long int i=0;
    for(i=0;i<x;i++);
    }
    4- Using 8 ports, design a Ring Counter using 6-bit counter:

    #include <LPC17xx.H>

    void delay(unsigned long int x);

    int main()
    {
    SystemInit();
    LPC_SC->PCONP&=0X00008000;
    LPC_GPIO2->FIOMASKH=0XF81F;
    LPC_GPIO2->FIODIRH=0X07E0;

    while(1)
    {
    LPC_GPIO2->FIOSETH=0X0400;
    delay(0x500000);
    LPC_GPIO2->FIOCLRH=0X0200;
    delay(0x500000);
    LPC_GPIO2->FIOCLRH=0X0100;
    delay(0x500000);
    LPC_GPIO2->FIOCLRH=0X0080;
    delay(0x500000);
    LPC_GPIO2->FIOCLRH=0X0040;
    delay(0x500000);
    LPC_GPIO2->FIOCLRH=0X0020;
    delay(0x500000);

    }
    }

    void delay(unsigned long int x)


    {
    unsigned long int i=0;
    for(i=0;i<x;i++);
    }
