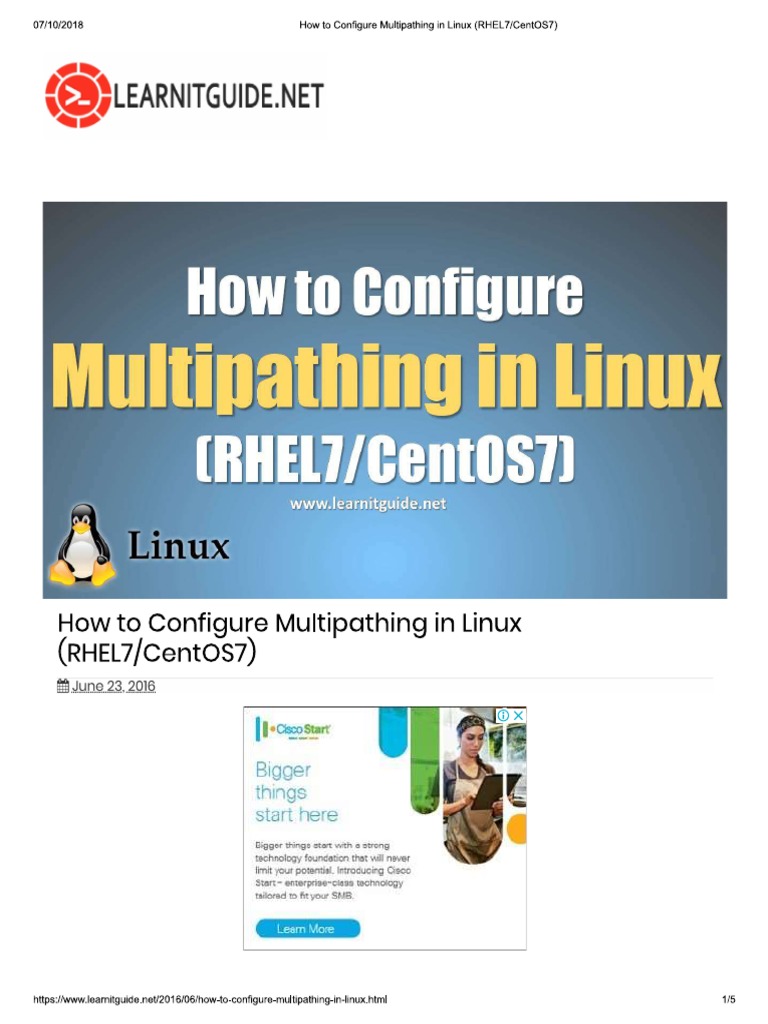

How to Configure Multipathing in Linux
(RHEL7/Centos7)
#8.June.23, 2016
hitpsuhwwoarntguide.nei201/06%how-to-confgure-multipathingnnuxhtml 48o7roro18 How to Configure Multipathng in Linux (RHELTICent087)
This article describes you the step by step procedure to configure the Multipathing in Linux
(RHEL7/CentOS7) using Device Mapper Multipathing (DM-Multipath) and helps you to
understand the multipath configuration.
Device Mapper Multipathing (DM-Multipath) is a native multipathing in Linux, Device Mapper
Multipathing (DM- Multipath) can be used for Redundancy and to Improve the Performance. It
aggregates or combines the multiple I/O paths between Servers and Storage, so it creates a
single device at the OS Level
For example, Lets say a server with two HBA card attached to a storage controller with single
ports on each HBA cards. One Iun assigned to the single server via two wwn number of both
cards. So OS detects two devices: /dev/sdb and /dev/sde. Once we installed the Device Mapper
Multipathing, DM-Multipath creates a single device with a unique WWID that reroutes 1/0 to
those four underlying devices according to the multipath configuration. So when there is ¢
failure with any of this /O paths, Data can be accessible using the available |/O Path.
1. Install the Device Mapper Multipath package.
Verify the device-mapper-multipath package has been installed or not.
| {root @linuxt -]# rpm -q device-mappermultipath
If itis not installed, Install the Device Mapper Multipath package using yum to avoid
dependencies issue. if yum is not configured, please refer the link Yum Configuration on Linux
| {root @linuxt -]# yum -y install device-mapper-multipath
2. Basic Configuration of Linux Device Mapper Multipathing
Configuration file is /etc/multipath.conf file, take a backup of it. Edit the configuration file to
ensure you have the following entries uncommented out.
hitpsuhwwdoarntguide.nai2018/06%how-to-confgure-multipathingnnuxhtml 218,o7roro18 How to Configure Multipathng in Linux (RHELTICent087)
defaults {
user_friendly_names yes
}
blacklist {
devnode “sda”
}
The blacklist includes the devices which are not to be configured in Multipathing. For example,
Lets say our OS installed disk is /dev/sda. So the first entry in the blacklist will exclude them.
Same for IDE drives (hd).
3. Start and Enable the multipath daemons.
Start the multipath service if not started bydefault.
| {root@linuxi ~]# systemet! start multipathd
Enable the multipath service to start on boot.
| [root@linuxt -}# systemetl enable multipathd
4, Check the multipathing status.
The multipath -ll command prints out multipathed paths that show which devices are
multipathed. If the command does not print anything out, ensure that all SAN connections are
set up properly and the system is multipathed.
[root@linuxt -]# multipath -I1
mpathb (360014051f89d2bb3300470fa7d4baal0) dm-2 LIO-ORG lund
" hwhandler=0' wp=rw
service-time O' pri
I 10:0:0 sdb 8:16 active active running
“+ policy='service-time 0’ prio=0 status=enabled
~ 20.010 sd 8:32 active active running
The above output shows 1 LUN (mpathb) with 2 paths (sdb and sde). Linux Multipathing basic
configuration is done. Refer this link to check further for troubleshooting any issue related with
multipathing and also understand its terminologies,
