India
DATE 1/01/2006
Knowledge Is Power SM
Apparatus Maintenance and Power
Management For Energy Delivery

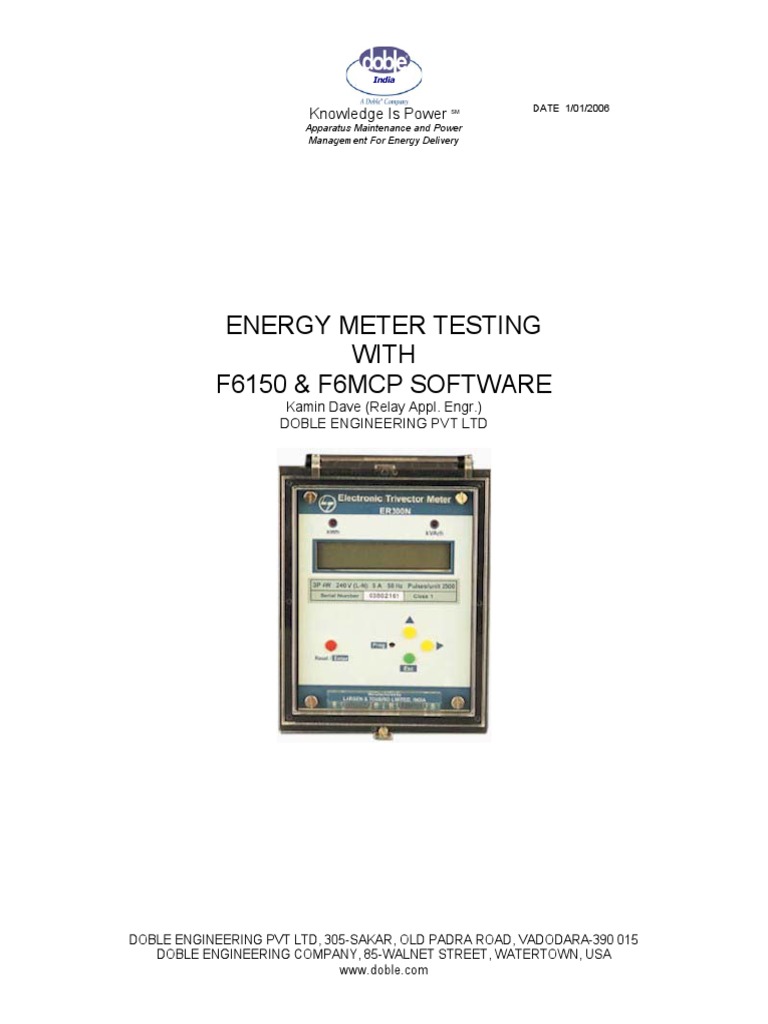

ENERGY METER TESTING
WITH
F6150 & F6MCP SOFTWARE
Kamin Dave (Relay Appl. Engr.)
DOBLE ENGINEERING PVT LTD
DOBLE ENGINEERING PVT LTD, 305-SAKAR, OLD PADRA ROAD, VADODARA-390 015
DOBLE ENGINEERING COMPANY, 85-WALNET STREET, WATERTOWN, USA
www.doble.com
India
DATE 1/01/2006
Knowledge Is Power SM
Apparatus Maintenance and Power
Management For Energy Delivery
Meter Details:
----Æ Programmed via front panel or RS485 port
----Æ Uni/Bi-directional configuration
----Æ Parameters calculated are displayed on LCD
----Æ Programmable for external CT/PT ratios
----Æ Immune to electromagnetic interference
----Æ Conform to IEC standards
----Æ Tamper detection features
Technical Specificatiopns:
----Æ Type: ER300N
----Æ Accuracy: CL.05s – IEC60687
----Æ Current (In): 1A or 5A
----Æ Start Current: 0.1*In (for CL.0.5s)
----Æ Power Factor: 4-quadrant operation
----Æ Frequency: 50 Hz +/- 10%
----Æ Load Characteristic: 5VA in potential circuit & 0.5VA in current circuit
----Æ Pulses/unit: 2500
----Æ Input Voltage: 3 X 240Vac
DOBLE ENGINEERING PVT LTD, 305-SAKAR, OLD PADRA ROAD, VADODARA-390 015
DOBLE ENGINEERING COMPANY, 85-WALNET STREET, WATERTOWN, USA
www.doble.com
India
DATE 1/01/2006
Knowledge Is Power SM
Apparatus Maintenance and Power
Management For Energy Delivery
TEST CIRCUIT
DM-1H/v
Sensor
I1 VA
I2 VB
I3 VC
DOBLE ENGINEERING PVT LTD, 305-SAKAR, OLD PADRA ROAD, VADODARA-390 015
DOBLE ENGINEERING COMPANY, 85-WALNET STREET, WATERTOWN, USA
www.doble.com
India
DATE 1/01/2006
Knowledge Is Power SM
Apparatus Maintenance and Power
Management For Energy Delivery
Sensor output connected to logic input. Pl. ensure the polarity with settings
of logic input.
BNC-connector
DM-1H/v
DOBLE ENGINEERING PVT LTD, 305-SAKAR, OLD PADRA ROAD, VADODARA-390 015
DOBLE ENGINEERING COMPANY, 85-WALNET STREET, WATERTOWN, USA
www.doble.com
India
DATE 1/01/2006
Knowledge Is Power SM
Apparatus Maintenance and Power
Management For Energy Delivery
Connection details:
3-V & 3-I Connections to CT & PT terminals of meter
Sensor position in front of RED LED PULSE
Sensor output to Logic input of F6150
System details:
PT RATIO = 1.0
CT RATIO = 20/1A
DOBLE ENGINEERING PVT LTD, 305-SAKAR, OLD PADRA ROAD, VADODARA-390 015
DOBLE ENGINEERING COMPANY, 85-WALNET STREET, WATERTOWN, USA
www.doble.com
India
DATE 1/01/2006
Knowledge Is Power SM
Apparatus Maintenance and Power
Management For Energy Delivery
Double click on “F6Control Panel” software. Software version:- 3-0155
DOBLE ENGINEERING PVT LTD, 305-SAKAR, OLD PADRA ROAD, VADODARA-390 015
DOBLE ENGINEERING COMPANY, 85-WALNET STREET, WATERTOWN, USA
www.doble.com
India
DATE 1/01/2006
Knowledge Is Power SM
Apparatus Maintenance and Power
Management For Energy Delivery
DOBLE ENGINEERING PVT LTD, 305-SAKAR, OLD PADRA ROAD, VADODARA-390 015
DOBLE ENGINEERING COMPANY, 85-WALNET STREET, WATERTOWN, USA
www.doble.com
India
DATE 1/01/2006
Knowledge Is Power SM
Apparatus Maintenance and Power
Management For Energy Delivery
STEP:-2
Click on “Settings” in “Device” menu
DOBLE ENGINEERING PVT LTD, 305-SAKAR, OLD PADRA ROAD, VADODARA-390 015
DOBLE ENGINEERING COMPANY, 85-WALNET STREET, WATERTOWN, USA
www.doble.com
India
DATE 1/01/2006
Knowledge Is Power SM
Apparatus Maintenance and Power
Management For Energy Delivery
STEP:-3
Click on “Watthour” & “Varhour” in Add function
DOBLE ENGINEERING PVT LTD, 305-SAKAR, OLD PADRA ROAD, VADODARA-390 015
DOBLE ENGINEERING COMPANY, 85-WALNET STREET, WATERTOWN, USA
www.doble.com
India
DATE 1/01/2006
Knowledge Is Power SM
Apparatus Maintenance and Power
Management For Energy Delivery
STEP:-4
Enter the settings for “Watthour” test in “Watthour” module
Enter Rated Vn (Vph)
Select 3-ph or 1-ph
Automatic calculation for time based on pulse
Enter the “pulse/WH”
Enter the Number of Pulse for test (say, 250)
Note: Always keep VTR/CTR = 1
DOBLE ENGINEERING PVT LTD, 305-SAKAR, OLD PADRA ROAD, VADODARA-390 015
DOBLE ENGINEERING COMPANY, 85-WALNET STREET, WATERTOWN, USA
www.doble.com
India
DATE 1/01/2006
Knowledge Is Power SM
Apparatus Maintenance and Power
Management For Energy Delivery
Calculation for Maximum Test time:
Meter constant = 2500 Pulse/WH = 1/2500 = 0.0004 WH/Pulse
Number of Pulse for Test = 250
Power Factor = 1 (Unity)
Watts Load on Meter = 1.7325*E*I*COS(pHi) = 1.7325*415*1*1 = 718.80 watss
T = {(0.0004)*(3600)*(250)} / (0.71880) = 500.83 s = 8 minutes & 22seconds
Calculation for calibration Qty/Element:
3 - elements
VL-L = 415V
In = 1.0A
Power factor = 1.0
P in watts = 1.7325*415*1*1 = 718.8 Watts
Calibration Qty/Element = 718.8 / 3 = 240 Watts
Calculation for Scale Factor:
Meter constant = 2500 Pulses/KWH
CTR = 1 & VTR = 1
Scale Factor = {(2500)*(CTR)*(VTR)} / 1000 = (2500*1*1) / 1000 = 2.5 Pulse/WH
DOBLE ENGINEERING PVT LTD, 305-SAKAR, OLD PADRA ROAD, VADODARA-390 015
DOBLE ENGINEERING COMPANY, 85-WALNET STREET, WATERTOWN, USA
www.doble.com
India
DATE 1/01/2006
Knowledge Is Power SM
Apparatus Maintenance and Power
Management For Energy Delivery
STEP:-5
Enter the settings for “Varhour” test in “Varhour” module
DOBLE ENGINEERING PVT LTD, 305-SAKAR, OLD PADRA ROAD, VADODARA-390 015
DOBLE ENGINEERING COMPANY, 85-WALNET STREET, WATERTOWN, USA
www.doble.com
India
DATE 1/01/2006
Knowledge Is Power SM
Apparatus Maintenance and Power
Management For Energy Delivery
STEP:-6
Select “Auto/Manual” mode for test
Vector shows the “watts”, “Var” & “VA”
If selection is on “Auto” mode then it is adjusting parameters from device settings
DOBLE ENGINEERING PVT LTD, 305-SAKAR, OLD PADRA ROAD, VADODARA-390 015
DOBLE ENGINEERING COMPANY, 85-WALNET STREET, WATERTOWN, USA
www.doble.com
India
DATE 1/01/2006
Knowledge Is Power SM
Apparatus Maintenance and Power
Management For Energy Delivery
If selection is on “manual” mode then voltage & current values/angles are required to be
enter in control panel
DOBLE ENGINEERING PVT LTD, 305-SAKAR, OLD PADRA ROAD, VADODARA-390 015
DOBLE ENGINEERING COMPANY, 85-WALNET STREET, WATERTOWN, USA
www.doble.com
India
DATE 1/01/2006
Knowledge Is Power SM
Apparatus Maintenance and Power
Management For Energy Delivery
STEP:-7
Watthour Testing:
Select “Watthour” module for test.
“Watthour”
DOBLE ENGINEERING PVT LTD, 305-SAKAR, OLD PADRA ROAD, VADODARA-390 015
DOBLE ENGINEERING COMPANY, 85-WALNET STREET, WATERTOWN, USA
www.doble.com
India
DATE 1/01/2006
Knowledge Is Power SM
Apparatus Maintenance and Power
Management For Energy Delivery
STEP:-8
Press “Logic Settings” button
Select “Input1” as “contact”
Select trigger condition “Open-ÆClose”
DOBLE ENGINEERING PVT LTD, 305-SAKAR, OLD PADRA ROAD, VADODARA-390 015
DOBLE ENGINEERING COMPANY, 85-WALNET STREET, WATERTOWN, USA
www.doble.com
India
DATE 1/01/2006
Knowledge Is Power SM
Apparatus Maintenance and Power
Management For Energy Delivery
STEP:-9
WH Testing at Unity PF:
Press “Enable” buttons
Press “System Output” button after pressing of “Enable” button
Software display shows Input & Output “WH” with graph
DOBLE ENGINEERING PVT LTD, 305-SAKAR, OLD PADRA ROAD, VADODARA-390 015
DOBLE ENGINEERING COMPANY, 85-WALNET STREET, WATERTOWN, USA
www.doble.com
India
DATE 1/01/2006
Knowledge Is Power SM
Apparatus Maintenance and Power
Management For Energy Delivery
After max Test time, Test will automatically stops & display shows Output Pulses with
meter constant
Output Pulses = 250
Output “WH” = 100 WH
System “Output” off automatically after max test time.
DOBLE ENGINEERING PVT LTD, 305-SAKAR, OLD PADRA ROAD, VADODARA-390 015
DOBLE ENGINEERING COMPANY, 85-WALNET STREET, WATERTOWN, USA
www.doble.com
India
DATE 1/01/2006
Knowledge Is Power SM
Apparatus Maintenance and Power
Management For Energy Delivery
F6150 reading compared with Meter reading:
Initial Reading on Meter = 2560.9 KWH -------A
Last Reading on Meter = 2562.9 KWH---------B
Difference = (A – B) = (2562.9 – 2560.9) = 2 KWH----------C
Initial Reading on F6150 = 0.0 KWH -------D
Last Reading on F6150 = 0.1 KWH---------E
Difference = (A – B) = (0.1 – 0) = 0.1 KWH----------F
Reading is on Primary side = 0.1*CTR*PTR = 0.1*20*1 = 2 KWH------D
%ERROR = {(C – D) / D}*100 = {(2 – 2) / 2}*100 = 0%--------------------E
DOBLE ENGINEERING PVT LTD, 305-SAKAR, OLD PADRA ROAD, VADODARA-390 015
DOBLE ENGINEERING COMPANY, 85-WALNET STREET, WATERTOWN, USA
www.doble.com
India
DATE 1/01/2006
Knowledge Is Power SM
Apparatus Maintenance and Power
Management For Energy Delivery
Test report shows source configurations, setting details & Test results.
DOBLE ENGINEERING PVT LTD, 305-SAKAR, OLD PADRA ROAD, VADODARA-390 015
DOBLE ENGINEERING COMPANY, 85-WALNET STREET, WATERTOWN, USA
www.doble.com
India
DATE 1/01/2006
Knowledge Is Power SM
Apparatus Maintenance and Power
Management For Energy Delivery
Test results:
Input Energy
Output Energy
Expected “Pulse/hour”
Actual “Pulse/hour”
%Error
DOBLE ENGINEERING PVT LTD, 305-SAKAR, OLD PADRA ROAD, VADODARA-390 015
DOBLE ENGINEERING COMPANY, 85-WALNET STREET, WATERTOWN, USA
www.doble.com
India
DATE 1/01/2006
Knowledge Is Power SM
Apparatus Maintenance and Power
Management For Energy Delivery
DOBLE ENGINEERING PVT LTD, 305-SAKAR, OLD PADRA ROAD, VADODARA-390 015
DOBLE ENGINEERING COMPANY, 85-WALNET STREET, WATERTOWN, USA
www.doble.com
India
DATE 1/01/2006
Knowledge Is Power SM
Apparatus Maintenance and Power
Management For Energy Delivery
DOBLE ENGINEERING PVT LTD, 305-SAKAR, OLD PADRA ROAD, VADODARA-390 015
DOBLE ENGINEERING COMPANY, 85-WALNET STREET, WATERTOWN, USA
www.doble.com
India
DATE 1/01/2006
Knowledge Is Power SM
Apparatus Maintenance and Power
Management For Energy Delivery
DOBLE ENGINEERING PVT LTD, 305-SAKAR, OLD PADRA ROAD, VADODARA-390 015
DOBLE ENGINEERING COMPANY, 85-WALNET STREET, WATERTOWN, USA
www.doble.com
India
DATE 1/01/2006
Knowledge Is Power SM
Apparatus Maintenance and Power
Management For Energy Delivery
System output automatically stops after 250 PULSES.
DOBLE ENGINEERING PVT LTD, 305-SAKAR, OLD PADRA ROAD, VADODARA-390 015
DOBLE ENGINEERING COMPANY, 85-WALNET STREET, WATERTOWN, USA
www.doble.com
India
DATE 1/01/2006
Knowledge Is Power SM
Apparatus Maintenance and Power
Management For Energy Delivery
Test Results:
DOBLE ENGINEERING PVT LTD, 305-SAKAR, OLD PADRA ROAD, VADODARA-390 015
DOBLE ENGINEERING COMPANY, 85-WALNET STREET, WATERTOWN, USA
www.doble.com
India
DATE 1/01/2006
Knowledge Is Power SM
Apparatus Maintenance and Power
Management For Energy Delivery
Now, select “Varhour”
DOBLE ENGINEERING PVT LTD, 305-SAKAR, OLD PADRA ROAD, VADODARA-390 015
DOBLE ENGINEERING COMPANY, 85-WALNET STREET, WATERTOWN, USA
www.doble.com
India
DATE 1/01/2006
Knowledge Is Power SM
Apparatus Maintenance and Power
Management For Energy Delivery
DOBLE ENGINEERING PVT LTD, 305-SAKAR, OLD PADRA ROAD, VADODARA-390 015
DOBLE ENGINEERING COMPANY, 85-WALNET STREET, WATERTOWN, USA
www.doble.com
India
DATE 1/01/2006
Knowledge Is Power SM
Apparatus Maintenance and Power
Management For Energy Delivery
DOBLE ENGINEERING PVT LTD, 305-SAKAR, OLD PADRA ROAD, VADODARA-390 015
DOBLE ENGINEERING COMPANY, 85-WALNET STREET, WATERTOWN, USA
www.doble.com
India
DATE 1/01/2006
Knowledge Is Power SM
Apparatus Maintenance and Power
Management For Energy Delivery
Test Results:
DOBLE ENGINEERING PVT LTD, 305-SAKAR, OLD PADRA ROAD, VADODARA-390 015
DOBLE ENGINEERING COMPANY, 85-WALNET STREET, WATERTOWN, USA
www.doble.com
India
DATE 1/01/2006
Knowledge Is Power SM
Apparatus Maintenance and Power
Management For Energy Delivery
Testing at 0.866 (LAG) Power Factor:
DOBLE ENGINEERING PVT LTD, 305-SAKAR, OLD PADRA ROAD, VADODARA-390 015
DOBLE ENGINEERING COMPANY, 85-WALNET STREET, WATERTOWN, USA
www.doble.com
India
DATE 1/01/2006
Knowledge Is Power SM
Apparatus Maintenance and Power
Management For Energy Delivery
DOBLE ENGINEERING PVT LTD, 305-SAKAR, OLD PADRA ROAD, VADODARA-390 015
DOBLE ENGINEERING COMPANY, 85-WALNET STREET, WATERTOWN, USA
www.doble.com
India
DATE 1/01/2006
Knowledge Is Power SM
Apparatus Maintenance and Power
Management For Energy Delivery
Initial Reading on Meter = 2560.9 KWH -------A
Last Reading on Meter = 2562.9 KWH---------B
Difference = (A – B) = (2562.9 – 2560.9) = 2 KWH----------C
Initial Reading on F6150 = 0.0 KWH -------D
Last Reading on F6150 = 0.1 KWH---------E
Difference = (A – B) = (0.1 – 0) = 0.1 KWH----------F
Reading is on Primary side = 0.1*CTR*PTR = 0.1*20*1 = 2 KWH------D
%ERROR = {(C – D) / D}*100 = {(2 – 2) / 2}*100 = 0%--------------------E
DOBLE ENGINEERING PVT LTD, 305-SAKAR, OLD PADRA ROAD, VADODARA-390 015
DOBLE ENGINEERING COMPANY, 85-WALNET STREET, WATERTOWN, USA
www.doble.com
India
DATE 1/01/2006
Knowledge Is Power SM
Apparatus Maintenance and Power
Management For Energy Delivery
DOBLE ENGINEERING PVT LTD, 305-SAKAR, OLD PADRA ROAD, VADODARA-390 015
DOBLE ENGINEERING COMPANY, 85-WALNET STREET, WATERTOWN, USA
www.doble.com
India
DATE 1/01/2006
Knowledge Is Power SM
Apparatus Maintenance and Power
Management For Energy Delivery
DOBLE ENGINEERING PVT LTD, 305-SAKAR, OLD PADRA ROAD, VADODARA-390 015
DOBLE ENGINEERING COMPANY, 85-WALNET STREET, WATERTOWN, USA
www.doble.com
India
DATE 1/01/2006
Knowledge Is Power SM
Apparatus Maintenance and Power
Management For Energy Delivery
DOBLE ENGINEERING PVT LTD, 305-SAKAR, OLD PADRA ROAD, VADODARA-390 015
DOBLE ENGINEERING COMPANY, 85-WALNET STREET, WATERTOWN, USA
www.doble.com
