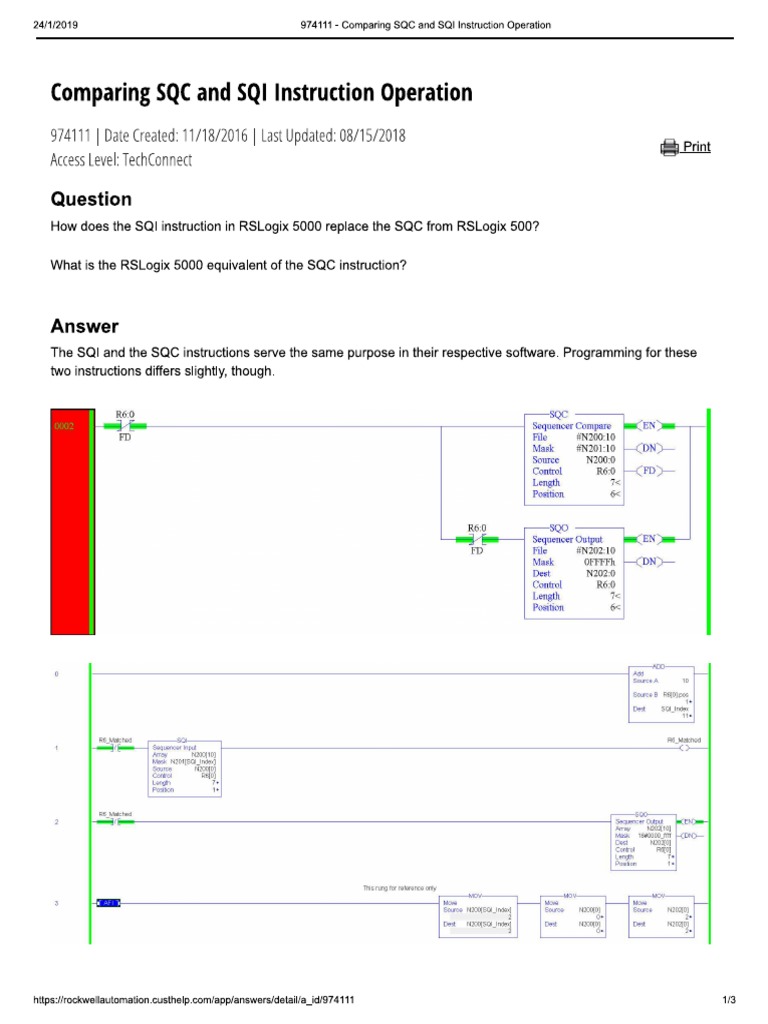

panrore 974111 - Comparing SAC and SA! Instruction Operation Comparing SQC and SQI Instruction Operation 974111 | Date Created: 11/18/2016 | Last Updated: 08/15/2018 Access Level: TechConnect Berrie Question How does the SQI instruction in RSLogix 5000 replace the SQC from RSLogix 500? What is the RSLogix 5000 equivalent of the SQC instruction? Answer The SQI and the SQC instructions serve the same purpose in their respective software. Programming for these two instructions differs slightly, though Roo psec ——_ Sequotcer Compare faxCEN 0 Fis §N200-10 Mask — @N20I‘10 | CDN Some” N2000 Cont" RGD | CFD Lena 2 Poston & Roo htpssrockwolautomaton custhelp.comapplanswersidelaiia_I/O74111 19 panrore 974111 - Comparing SAC and SA! Instruction Operation The major differences are: + The SQIis an input instruction and requires an output after it on the rung, The SQC is an output instruction that sets the .FD bit of the control word when the masked comparison is true. + The .FD bit of the SQI control tag is not used. + The output rung condition of the SQ is false until the masked compare is true. This functionality replaces the FD bit of the SQC. + The mask of the SQC, when specified with a # modifier (for example, #N7:10), would advance through the file with the .POS value, similar to the File reference. Indirect addressing must be done to have the mask follow the .POS for the SQI instruction. In order to convert the logic of the SQC in the SLC to the SQI in the Logix controller family, some extra programming is required, + An output, usually the -FD bit replacement tag, must be placed on the rung with the SQ ‘+ Because the .FD bit is no longer functional © Amemory tag must be created to replace it and implemented wherever the .FD bit is referenced OR © All things triggered by the .FD must follow the SQl on the rung + An index tag must be created and implemented for variable mask applications, usually by adding the starting position in the mask array to the POS of the SQ Note: When not used in conjunction with an SQO instruction, the SQI position must be advanced using other logic. The SQI does not automatically advance through the array when a source match is achieved. Attachments DISCLAIMER This knowledge base web site is intended to provide general technical information on a particular subject or subjects and is not an exhaustive treatment of such subjects. Accordingly, the information in this web site is not intended to constitute application, design, software or other professional engineering advice or services. Before making any decision or taking any action, which might affect your equipment, you should consult a qualified professional advisor. ROCKWELL AUTOMATION DOES NOT WARRANT THE COMPLETENESS, TIMELINESS OR ACCURACY OF ANY OF THE DATA CONTAINED IN THIS WEB SITE AND MAY MAKE CHANGES THERETO AT ANY TIME IN ITS SOLE DISCRETION WITHOUT NOTICE. FURTHER, ALL INFORMATION CONVEYED HEREBY IS PROVIDED TO USERS "AS IS." INNO EVENT SHALL ROCKWELL BE LIABLE FOR ANY DAMAGES OF ANY KIND INCLUDING DIRECT, INDIRECT, INCIDENTAL, CONSEQUENTIAL, LOSS PROFIT OR DAMAGE, EVEN IF ROCKWELL AUTOMATION HAVE BEEN ADVISED ON THE POSSIBILITY OF SUCH DAMAGES. htpssrockwolautomaton custhelp.comapplanswersidelaiia_I/O74111 20 panrore 974111 - Comparing SAC and SA! Instruction Operation ROCKWELL AUTOMATION DISCLAIMS ALL WARRANTIES WHETHER EXPRESSED OR IMPLIED IN RESPECT OF THE INFORMATION (INCLUDING SOFTWARE) PROVIDED HEREBY, INCLUDING THE IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, AND NON- INFRINGEMENT. Note that certain jurisdictions do not countenance the exclusion of implied warranties; thus, this disclaimer may not apply to you. This page is best viewed in Internet Explorer 11, Edge, Firefox 41, Chrome 46, Safari 9 or newer. htpssrockwolautomaton custhelp.comapplanswersidelaiia_I/O74111 a9
