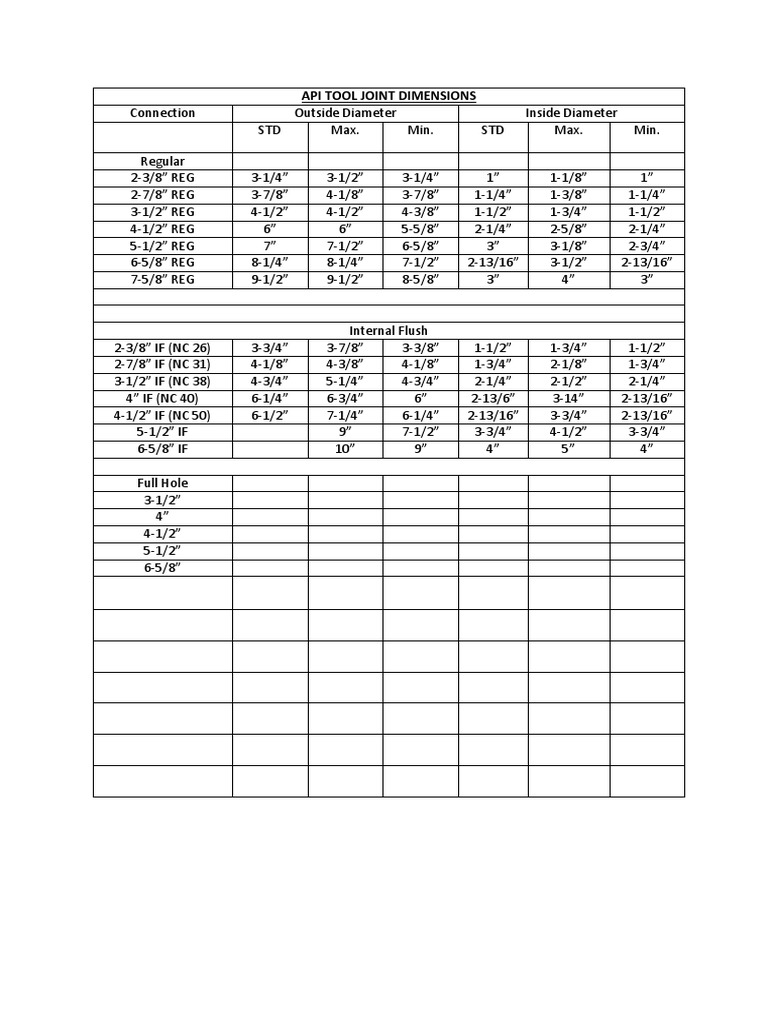

API TOOL JOINT DIMENSIONS

Connection Outside Diameter Inside Diameter

STD Max. Min. STD Max. Min.

Regular
2-3/8” REG 3-1/4” 3-1/2” 3-1/4” 1” 1-1/8” 1”
2-7/8” REG 3-7/8” 4-1/8” 3-7/8” 1-1/4” 1-3/8” 1-1/4”
3-1/2” REG 4-1/2” 4-1/2” 4-3/8” 1-1/2” 1-3/4” 1-1/2”
4-1/2” REG 6” 6” 5-5/8” 2-1/4” 2-5/8” 2-1/4”
5-1/2” REG 7” 7-1/2” 6-5/8” 3” 3-1/8” 2-3/4”
6-5/8” REG 8-1/4” 8-1/4” 7-1/2” 2-13/16” 3-1/2” 2-13/16”
7-5/8” REG 9-1/2” 9-1/2” 8-5/8” 3” 4” 3”

Internal Flush
2-3/8” IF (NC 26) 3-3/4” 3-7/8” 3-3/8” 1-1/2” 1-3/4” 1-1/2”
2-7/8” IF (NC 31) 4-1/8” 4-3/8” 4-1/8” 1-3/4” 2-1/8” 1-3/4”
3-1/2” IF (NC 38) 4-3/4” 5-1/4” 4-3/4” 2-1/4” 2-1/2” 2-1/4”
4” IF (NC 40) 6-1/4” 6-3/4” 6” 2-13/6” 3-14” 2-13/16”
4-1/2” IF (NC 50) 6-1/2” 7-1/4” 6-1/4” 2-13/16” 3-3/4” 2-13/16”
5-1/2” IF 9” 7-1/2” 3-3/4” 4-1/2” 3-3/4”
6-5/8” IF 10” 9” 4” 5” 4”

Full Hole
3-1/2”
4”
4-1/2”
5-1/2”
6-5/8”
