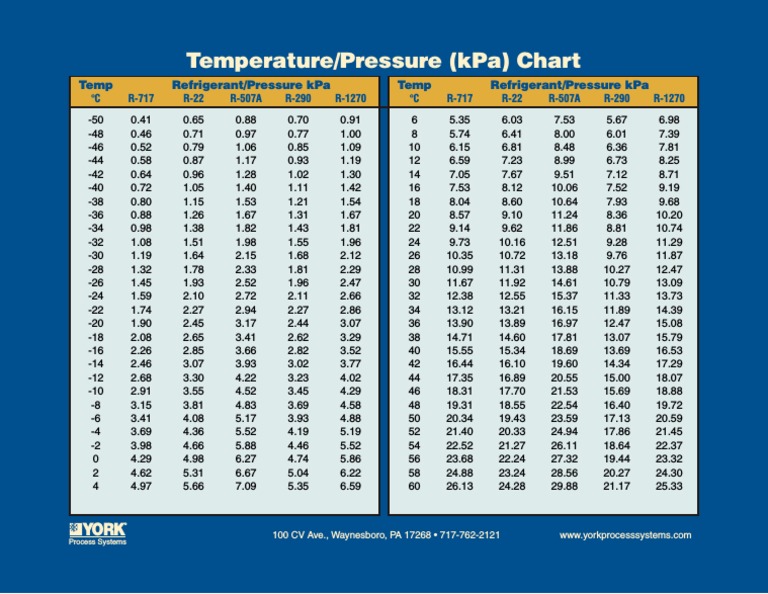

Temperature/Pressure (kPa) Chart

Temp Refrigerant/Pressure kPa Temp Refrigerant/Pressure kPa


°C R-717 R-22 R-507A R-290 R-1270 °C R-717 R-22 R-507A R-290 R-1270

-50 0.41 0.65 0.88 0.70 0.91 6 5.35 6.03 7.53 5.67 6.98
-48 0.46 0.71 0.97 0.77 1.00 8 5.74 6.41 8.00 6.01 7.39
-46 0.52 0.79 1.06 0.85 1.09 10 6.15 6.81 8.48 6.36 7.81
-44 0.58 0.87 1.17 0.93 1.19 12 6.59 7.23 8.99 6.73 8.25
-42 0.64 0.96 1.28 1.02 1.30 14 7.05 7.67 9.51 7.12 8.71
-40 0.72 1.05 1.40 1.11 1.42 16 7.53 8.12 10.06 7.52 9.19
-38 0.80 1.15 1.53 1.21 1.54 18 8.04 8.60 10.64 7.93 9.68
-36 0.88 1.26 1.67 1.31 1.67 20 8.57 9.10 11.24 8.36 10.20
-34 0.98 1.38 1.82 1.43 1.81 22 9.14 9.62 11.86 8.81 10.74
-32 1.08 1.51 1.98 1.55 1.96 24 9.73 10.16 12.51 9.28 11.29
-30 1.19 1.64 2.15 1.68 2.12 26 10.35 10.72 13.18 9.76 11.87
-28 1.32 1.78 2.33 1.81 2.29 28 10.99 11.31 13.88 10.27 12.47
-26 1.45 1.93 2.52 1.96 2.47 30 11.67 11.92 14.61 10.79 13.09
-24 1.59 2.10 2.72 2.11 2.66 32 12.38 12.55 15.37 11.33 13.73
-22 1.74 2.27 2.94 2.27 2.86 34 13.12 13.21 16.15 11.89 14.39
-20 1.90 2.45 3.17 2.44 3.07 36 13.90 13.89 16.97 12.47 15.08
-18 2.08 2.65 3.41 2.62 3.29 38 14.71 14.60 17.81 13.07 15.79
-16 2.26 2.85 3.66 2.82 3.52 40 15.55 15.34 18.69 13.69 16.53
-14 2.46 3.07 3.93 3.02 3.77 42 16.44 16.10 19.60 14.34 17.29
-12 2.68 3.30 4.22 3.23 4.02 44 17.35 16.89 20.55 15.00 18.07
-10 2.91 3.55 4.52 3.45 4.29 46 18.31 17.70 21.53 15.69 18.88
-8 3.15 3.81 4.83 3.69 4.58 48 19.31 18.55 22.54 16.40 19.72
-6 3.41 4.08 5.17 3.93 4.88 50 20.34 19.43 23.59 17.13 20.59
-4 3.69 4.36 5.52 4.19 5.19 52 21.40 20.33 24.94 17.86 21.45
-2 3.98 4.66 5.88 4.46 5.52 54 22.52 21.27 26.11 18.64 22.37
0 4.29 4.98 6.27 4.74 5.86 56 23.68 22.24 27.32 19.44 23.32
2 4.62 5.31 6.67 5.04 6.22 58 24.88 23.24 28.56 20.27 24.30
4 4.97 5.66 7.09 5.35 6.59 60 26.13 24.28 29.88 21.17 25.33

YORK
®

100 CV Ave., Waynesboro, PA 17268 • 717-762-2121 www.yorkprocesssystems.com


Process Systems
