Back to Ferrule Pricing Page

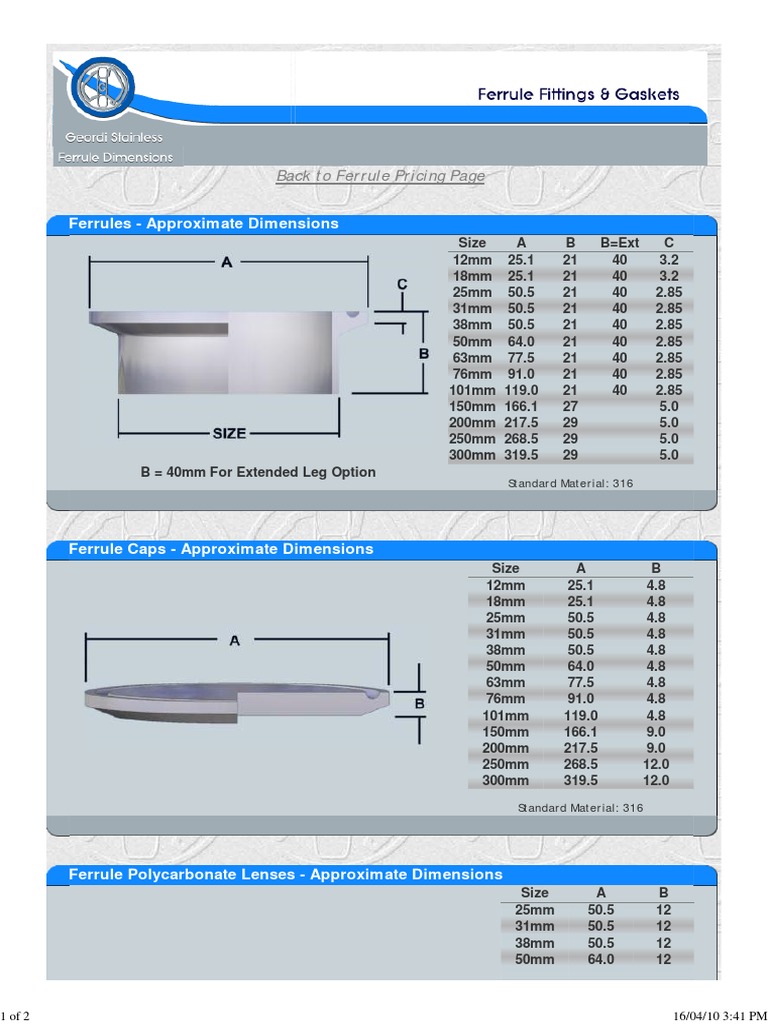

Ferrules - Approximate Dimensions


Size A B B=Ext C
12mm 25.1 21 40 3.2
18mm 25.1 21 40 3.2
25mm 50.5 21 40 2.85
31mm 50.5 21 40 2.85
38mm 50.5 21 40 2.85
50mm 64.0 21 40 2.85
63mm 77.5 21 40 2.85
76mm 91.0 21 40 2.85
101mm 119.0 21 40 2.85
150mm 166.1 27 5.0
200mm 217.5 29 5.0
250mm 268.5 29 5.0
300mm 319.5 29 5.0
B = 40mm For Extended Leg Option
Standard Material: 316

Ferrule Caps - Approximate Dimensions


Size A B
12mm 25.1 4.8
18mm 25.1 4.8
25mm 50.5 4.8
31mm 50.5 4.8
38mm 50.5 4.8
50mm 64.0 4.8
63mm 77.5 4.8
76mm 91.0 4.8
101mm 119.0 4.8
150mm 166.1 9.0
200mm 217.5 9.0
250mm 268.5 12.0
300mm 319.5 12.0

Standard Material: 316

Ferrule Polycarbonate Lenses - Approximate Dimensions


Size A B
25mm 50.5 12
31mm 50.5 12
38mm 50.5 12
50mm 64.0 12

1 of 2 16/04/10 3:41 PM
63mm 77.5 12
76mm 91.0 12
101mm 119.0 12
150mm 166.1 12
200mm 217.5 12
250mm 268.5 12
300mm 319.5 12

Ferrule Standard Gaskets - Approximate Dimensions


Size A B C D
25mm 50.5 43.5 22.2 2
31mm 50.5 43.5 28.6 2
38mm 50.5 43.5 34.9 2
50mm 64.0 56.5 47.6 2
63mm 77.5 70.5 60.3 2
76mm 91.0 83.5 73.0 2
101mm 119.0 10.0 98.4 2
150mm 166.1 157.0 149.2 2
200mm 217.5 207.2 200.0 2
250mm 268.5 29 250.8 2
300mm 319.5 308.8 301.6 2

Stainless Steel | Stainless Steel Ferrule | Triclover | Triclover Fittings | Triclover Ferrule | Triclover Gasket | Triclover Seal | Triclover Sight
Glass | Triclover Lens | Ferrule Gasket | Triclover Union | Triclover Coupling | Ferrule Union | Triclover Cap | Stainless Steel Fittings | Food
Grade | Pharmaceutical Grade | Sanitary | Hygienic | Clamp Fittings | AS 1528

2 of 2 16/04/10 3:41 PM
