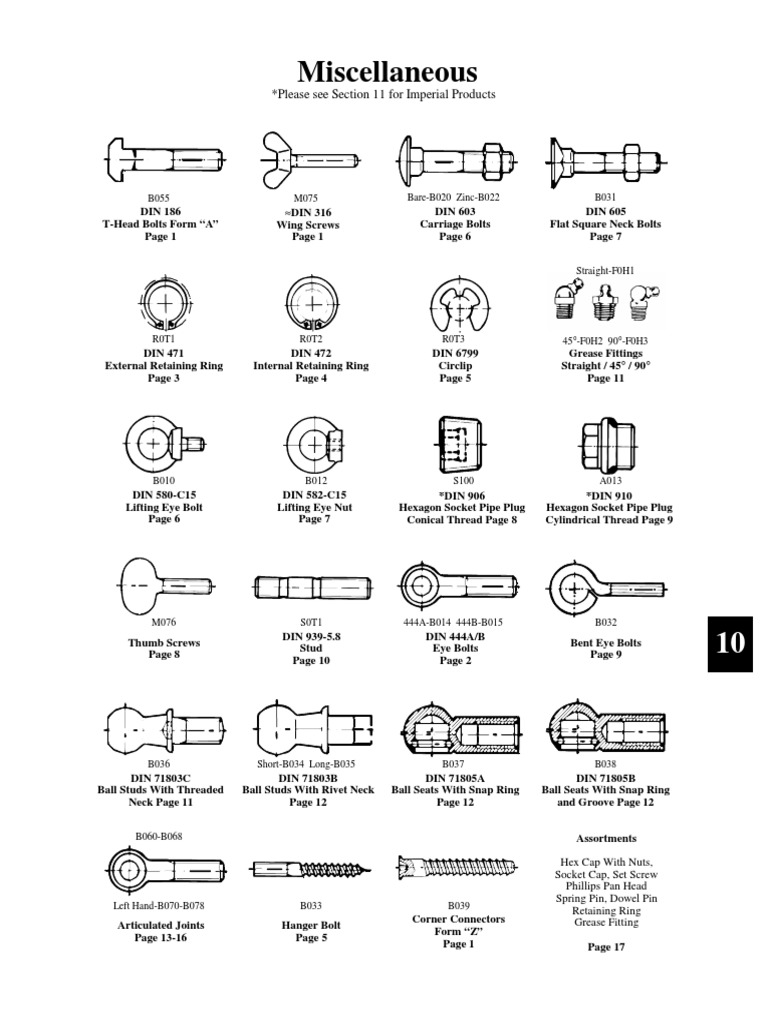

Miscellaneous

*Please see Section 11 for Imperial Products

B055 M075 Bare-B020 Zinc-B022 B031

DIN 186 ≈DIN 316 DIN 603 DIN 605
T-Head Bolts Form “A” Wing Screws Carriage Bolts Flat Square Neck Bolts
Page 1 Page 1 Page 6 Page 7

Straight-F0H1

R0T1 R0T2 R0T3 45°-F0H2 90°-F0H3

DIN 471 DIN 472 DIN 6799 Grease Fittings
External Retaining Ring Internal Retaining Ring Circlip Straight / 45°/ 90°
Page 3 Page 4 Page 5 Page 11

B010 B012 S100 A013

DIN 580-C15 DIN 582-C15 *DIN 906 *DIN 910
Lifting Eye Bolt Lifting Eye Nut Hexagon Socket Pipe Plug Hexagon Socket Pipe Plug
Page 6 Page 7 Conical Thread Page 8 Cylindrical Thread Page 9

M076 S0T1 444A-B014 444B-B015 B032

Thumb Screws
Page 8
DIN 939-5.8
Stud
Page 10
DIN 444A/B
Eye Bolts
Page 2
Bent Eye Bolts
Page 9 10

B036 Short-B034 Long-B035 B037 B038

DIN 71803C DIN 71803B DIN 71805A DIN 71805B
Ball Studs With Threaded Ball Studs With Rivet Neck Ball Seats With Snap Ring Ball Seats With Snap Ring
Neck Page 11 Page 12 Page 12 and Groove Page 12

B060-B068 Assortments

Hex Cap With Nuts,

Socket Cap, Set Screw
Phillips Pan Head
Spring Pin, Dowel Pin
Left Hand-B070-B078 B033 B039
Retaining Ring
Corner Connectors Grease Fitting
Articulated Joints Hanger Bolt
Form “Z”
Page 13-16 Page 5
Page 1 Page 17
 DIN 186
T-Head Bolts
3.6 / 4.6 Grade
Form “A”
With Square Neck
B055  Zinc Plated
d1 b L < 120 a k s Lengths (mm)
M6 18 16 4.5 6 30-50
M8 22 18 5.5 8 30-60
M10 26 21 7 10 30-60
M12 30 26 8 12 40-100
M16 38 30 10.5 16 40-120
M20 46 36 13 20 60-120
M24 54 43 15 24 120
*Please contact us for availability*

Wing Screws ≈DIN 316

Steel

M075  Zinc Plated

d1 d2 max. e max. h max. Lengths (mm)

M3 6 16 8 6-16
M4 8 20 10.5 8-40
M5 11 26 13 8-50
M6 13 33 17 8-60
M8 16 39 20 10-80
M10 20 51 25 16-60
M12 23 65 33 20-60
*Please contact us for availability*

10
Corner Connectors
Form “Z”

With Pozidriv Recess

B039  Zinc Plated
d1 x L b d2 Pozidriv
7x50 40 10 3
*Please contact us for availability*

S → Normally Stocked | * → Call for Availability

Fuller Metric Parts Ltd. -1- 10.1.1

 DIN 444A
Eye Bolts
4.6 Grade

Form “A”
B014  Zinc Plated
d1 b L<125 b 125<L<200 b L>200 d2 H9 d3 max. s max. Proof Load (N) Lengths (mm)
M5 16   5 12 8 3200 30-50
M6 18   6 14 9 4520 30-100
M8 22 28  8 18 11 8240 30-140
M10 26 32  10 20 14 13000 30-140
M12 30 36 49 12 25 17 19000 50-200
M16 38 44 57 16 32 19 35300 60-300
M20 46 52 65 18 40 24 55100 80-300
M24 54 60 73 22 45 28 79400 80-300
M30 66 72 85 28 55 34 126000 80-300
*Please contact us for availability*

DIN 444B
Eye Bolts
4.6 Grade

Form “B”
B015  Zinc Plated
d1 b L<125 b 125<L<200 d2 H9 d3 max. s max. Proof Load (N) Lengths (mm)
M6 18  6 14 7 4520 20-50
M8 22 28 8 18 9 8240 40-80
M10 26 32 10 20 12 13000 40-100
M12 30 36 12 25 14 19000 50-120
M16 38 44 16 32 17 35300 80-200
M20
M24
46
54
52
60
18
22
40
45
22
25
55100
79400
100-150
120-150
10
*Please contact us for availability*

S → Normally Stocked | * → Call for Availability

10.1.1 -2- FMP

 DIN 471
Retaining Ring
Spring Steel

External
R0T1  Bare Steel
d s d1 a max. b≈ R0T1 d s d1 a max. b≈ R0T1
4 0.4 3.7 2.2 0.9 S 62 2 57.8 7.5 6 S
5 0.6 4.7 2.5 1.1 S 63 2 58.8 7.6 6.2 S
6 0.7 5.6 2.7 1.3 S 65 2.5 60.8 7.8 6.3 S
7 0.8 6.5 3.1 1.4 S 68 2.5 63.5 8 6.5 S
8 0.8 7.4 3.2 1.5 S 70 2.5 65.5 8.1 6.6 S
9 1 8.4 3.3 1.7 S 72 2.5 67.5 8.2 6.8 S
10 1 9.3 3.3 1.8 S 75 2.5 70.5 8.4 7 S
11 1 10.2 3.3 1.8 S 78 2.5 73.5 8.6 7.3 S
12 1 11 3.3 1.8 S 80 2.5 74.5 8.6 7.4 S
13 1 11.9 3.4 2 S 82 2.5 76.5 8.7 7.6 S
14 1 12.9 3.5 2.1 S 85 3 79.5 8.7 7.8 S
15 1 13.8 3.6 2.2 S 88 3 82.5 8.8 8 S
16 1 14.7 3.7 2.2 S 90 3 84.5 8.8 8.2 S
17 1 15.7 3.8 2.3 S 95 3 89.5 9.4 8.6 S
18 1.2 16.5 3.9 2.4 S 100 3 94.5 9.6 9 S
19 1.2 17.5 3.9 2.5 S 105 4 98 9.9 9.3 *
20 1.2 18.5 4 2.6 S 110 4 103 10.1 9.6 S
21 1.2 19.5 4.1 2.7 S 115 4 108 10.6 9.8 S
22 1.2 20.5 4.2 2.8 S 120 4 113 11 10.2 S
23 1.2 21.4 4.3 2.9 S 125 4 118 11.4 10.4 *
24 1.2 22.2 4.4 3 S 130 4 123 11.6 10.7 S
25 1.2 23.2 4.4 3 S 135 4 128 11.8 11 S
26 1.2 24.2 4.5 3.1 S 140 4 133 12 11.2 S
27 1.2 25.1 4.6 3.1 S 145 4 138 12.2 11.5 S
28 1.5 25.9 4.7 3.2 S 150 4 142 13 11.8 S
29 1.5 26.9 4.8 3.4 S 155 4 146 13 12 *
30 1.5 27.9 5 3.5 S 160 4 151 13.3 12.2 *
32 1.5 29.6 5.2 3.6 S 165 4 155.5 13.5 12.5 *
10 33
34
1.5
1.5
30.5
31.5
5.3
5.4
3.7
3.8
S
S
170
175
4
4
160.5
165.5
13.5
13.5
12.9
12.9
S
*
35 1.5 32.2 5.6 3.9 S 180 4 170.5 14.2 13.5 S
36 1.75 33.2 5.6 4 S 185 4 175.5 14.2 13.5 *
37 1.75 34.2 5.7 4.1 S 190 4 180.5 14.2 14 S
38 1.75 35.2 5.8 4.2 S 195 4 185.5 14.2 14 S
40 1.75 36.5 6 4.4 S 200 4 190.5 14.2 14 S
42 1.75 38.5 6.5 4.5 S 210 5 198 14.2 14 *
45 1.75 41.5 6.7 4.7 S 220 5 208 14.2 14 *
47 1.75 43.5 6.8 4.9 S 230 5 218 14.2 14 *
48 1.75 44.5 6.9 5 S 240 5 228 14.2 14 *
50 2 45.8 6.9 5.1 S 250 5 238 14.2 14 *
52 2 47.8 7 5.2 S 260 5 245 16.2 16 *
55 2 50.8 7.2 5.4 S 270 5 255 16.2 16 *
56 2 51.8 7.3 5.5 S 280 5 265 16.2 16 *
57 2 52.8 7.3 5.6 S 290 5 275 16.2 16 *
58 2 53.8 7.3 5.65 S 300 5 285 16.2 16 *
60 2 55.8 7.4 5.8 S
Order Number → 471 10mm = R0T1-010-0000 | 471 120mm = R0T1-120-0000
S → Normally Stocked | * → Call for Availability

Fuller Metric Parts Ltd. -3- 10.1.1

 DIN 472
Retaining Ring
Spring Steel

Internal
R0T2  Bare Steel
d s d1 a max. b≈ R0T2 d s d1 a max. b≈ R0T2
8 0.8 8.7 2.4 1.1 * 68 2.5 72.5 7.8 6.1 S
9 0.8 9.8 2.5 1.3 S 70 2.5 74.5 7.8 6.2 S
10 1 10.8 3.2 1.4 S 72 2.5 76.5 7.8 6.4 S
11 1 11.8 3.3 1.5 S 75 2.5 79.5 7.8 6.6 S
12 1 13 3.4 1.7 S 78 2.5 82.5 8.5 6.8 S
13 1 14.1 3.6 1.8 S 80 2.5 85.5 8.5 7 S
14 1 15.1 3.7 1.9 S 82 2.5 87.5 8.5 7 S
15 1 16.2 3.7 2 S 85 3 90.5 8.6 7.2 S
16 1 17.3 3.8 2 S 88 3 93.5 8.6 7.4 S
17 1 18.3 3.9 2.1 S 90 3 95.5 8.6 7.6 S
18 1 19.5 4.1 2.2 S 92 3 97.5 8.7 7.8 S
19 1 20.5 4.1 2.2 S 95 3 100.5 8.8 8.1 S
20 1 21.5 4.2 2.3 S 98 3 103.5 9 8.3 S
21 1 22.5 4.2 2.4 S 100 3 105.5 9.2 8.4 S
22 1 23.5 4.2 2.5 S 105 4 112 9.5 8.7 S
23 1 24.6 4.3 2.5 S 110 4 117 10.4 9 S
24 1.2 25.9 4.4 2.6 S 112 4 119 10.5 9.1 *
25 1.2 26.9 4.5 2.7 S 115 4 122 10.5 9.3 S
26 1.2 27.9 4.7 2.8 S 120 4 127 11 9.7 S
27 1.2 28.9 4.7 2.8 S 125 4 132 11 10 S
28 1.2 30.1 4.8 2.9 S 130 4 137 11 10.2 S
29 1.2 31.1 4.8 2.9 S 135 4 142 11.2 10.5 S
30 1.2 32.1 4.8 3 S 140 4 147 11.2 10.7 S
31 1.2 33.4 5.2 3.2 S 145 4 152 11.4 10.9 S
32 1.2 34.4 5.4 3.2 S 150 4 158 12 11.2 S
34 1.5 36.5 5.4 3.3 S 155 4 164 12 11.4 *
35 1.5 37.8 5.4 3.4 S 160 4 169 13 11.6 *
36 1.5 38.8 5.4 3.5 S 165 4 174.5 13 11.8 *
37
38
1.5
1.5
39.8
40.8
5.5
5.5
3.6
3.7
S
S
170
175
4
4
179.5
184.5
13.5
13.5
12.2
12.7
S
*
10
40 1.75 43.5 5.8 3.9 S 180 4 189.5 14.2 13.2 S
42 1.75 45.5 5.9 4.1 S 185 4 194.5 14.2 13.7 *
45 1.75 48.5 6.2 4.3 S 190 4 199.5 14.2 13.8 *
47 1.75 50.5 6.4 4.4 S 195 4 204.5 14.2 13.8 *
48 1.75 51.5 6.4 4.5 S 200 4 209.5 14.2 14 S
50 2 54.2 6.5 4.6 S 210 5 222 14.2 14 *
52 2 56.2 6.7 4.7 S 220 5 232 14.2 14 *
55 2 59.2 6.8 5 S 230 5 242 14.2 14 *
56 2 60.2 6.8 5.1 S 240 5 252 14.2 14 *
58 2 62.2 6.9 5.2 S 250 5 262 14.2 14 *
60 2 64.2 7.3 5.4 S 260 5 275 16.2 16 *
62 2 66.2 7.3 5.5 S 270 5 285 16.2 16 *
63 2 67.2 7.3 5.6 S 280 5 295 16.2 16 *
65 2.5 69.2 7.6 5.8 S 290 5 305 16.2 16 *
67 2.5 70.2 7.6 5.9 S 300 5 315 16.2 16 *

Order Number → 472 10mm = R0T2-010-0000 | 472 140mm = R0T2-140-0000

S → Normally Stocked | * → Call for Availability

10.1.1 -4- FMP

 DIN 6799
Circlips
Spring Steel

R0T3  Bare Steel

Shaft Diameter Range
d d1 max. a s Stock FMP Order #
from to
0.8 1 1.4 2.25 0.58 0.2 * R0T3-0.8-0000
1.2 1.4 2 3.25 1.01 0.3 * R0T3-1.2-0000
1.5 2 2.5 4.25 1.28 0.4 S R0T3-1.5-0000
1.9 2.5 3 4.8 1.61 0.5 S R0T3-1.9-0000
2.3 3 4 6.3 1.94 0.6 S R0T3-2.3-0000
3.2 4 5 7.3 2.70 0.6 S R0T3-3.2-0000
4 5 7 9.3 3.34 0.7 S R0T3-004-0000
5 6 8 11.3 4.11 0.7 S R0T3-005-0000
6 7 9 12.3 5.26 0.7 S R0T3-006-0000
7 8 11 14.3 5.84 0.9 S R0T3-007-0000
8 9 12 16.3 6.52 1 S R0T3-008-0000
9 10 14 18.8 7.63 1.1 S R0T3-009-0000
10 11 15 20.4 8.32 1.2 S R0T3-010-0000
12 13 18 23.4 10.45 1.3 S R0T3-012-0000
15 16 24 29.4 12.61 1.5 S R0T3-015-0000
19 20 31 37.6 15.92 1.75 S R0T3-019-0000
24 25 38 44.6 21.88 2 S R0T3-024-0000
30 32 42 52.6 25.8 2.5 * R0T3-030-0000

Hanger Bolts
Steel

B033  Zinc Plated

10
d1 M6 M8 M10
≈d2(+1) 6 8 10
SW/WAF 6 8
L1 min. L2 min. SW L1 min. L2 min. SW L1 min. L2 min. SW
50 9 30  8 28    
60 18 35  13 28  17 27 8
70 23 35  17 35    
80 28 35  27 35 6 17 45 8
100 30 35  37 45 6 27 43 8
120    45 45 6 35 55 8
140    40 45 6 35 55 8
150    40 45 6 37 55 8
160    40 45 6 37 55 8
180    40 57 6 37 55 8
*Please contact us for availability*

S → Normally Stocked | * → Call for Availability

Fuller Metric Parts Ltd. -5- 10.1.1

 DIN 580
Lifting Eye Bolt
C15 Material

B010  Bare Steel

Safe Working Load (kgs.)
d1 b d2 d3 d4 Stock FMP Order #
1 Bolt *2 Bolts
M6 13 36 17 16 70 50 S B010-006-0000
M8 13 36 20 20 140 95 S B010-008-0000
M10 17 45 25 25 230 170 S B010-010-0000
M12 20.5 54 30 30 340 240 S B010-012-0000
M14 27 63 35 35 490 340 S B010-014-0000
M16 27 63 35 35 700 500 S B010-016-0000
M18       S B010-018-0000
M20 30 72 40 40 1200 830 S B010-020-0000
M22 35 81 45 45 1500 1050 S B010-022-0000
M24 36 90 50 50 1800 1270 S B010-024-0000
M27 36 90 50 50 2500 1650 S B010-027-0000
M30 45 108 65 60 3600 2600 S B010-030-0000
M33 45 108 65 60 4300 3200 S B010-033-0000
M36 54 126 75 70 5100 3700 S B010-036-0000
M39 54 126 75 70   * B010-039-0000
M42 63 144 85 80 7000 5000 S B010-042-0000
M45 63 144 85 80 8000 5500 * B010-045-0000
M48 68 166 100 90 8600 6100 S B010-048-0000
M52 68 166 100 90 9900 7300 S B010-052-0000
M56 78 184 110 100 11500 8300 S B010-056-0000
M64 90 206 120 110 16000 11000 S B010-064-0000
M72 100 260 150 140 21000 15000 * B010-072-0000
M80 112 296 170 160 28000 20000 * B010-080-0000
M100 130 330 190 180 38000 27000 * B010-100-0000
*Pulling at a 45°Angle

DIN 603
Carriage Bolts 10
Steel

With Hex Nuts

B020  Bare Steel
B022  Zinc Plated
d1 b L<125 b 125<L<200 b L>200 d2max. k max. f max. v max. Lengths (mm)
M5 16 22  13.55 3.3 4.1 5.48 12-80
M6 18 24  16.55 3.88 4.6 6.48 12-140
M8 22 28 41 20.65 4.88 5.6 8.58 16-200
M10 26 32 45 24.65 5.38 6.6 10.58 20-300
M12 30 36 49 30.65 6.95 8.75 12.7 30-300
M16 38 44 57 38.8 8.95 12.9 16.7 60-400
*Please contact us for availability*

S → Normally Stocked | * → Call for Availability

Fuller Metric Parts Ltd. -6- FMP

10.1.1
 DIN 582
Lifting Eye Nut
C15 Material

B012  Bare Steel

Safe Working Load (kgs.)
d1 h d2 d3 d4 Stock FMP Order #
1 Bolt *2 Bolts
M6  36 20 20 70 50 S B012-006-0000
M8 18 36 20 20 140 95 S B012-008-0000
M10 22.5 45 25 25 230 170 S B012-010-0000
M12 26 54 30 30 340 240 S B012-012-0000
M14 26 54 30 30 490 340 S B012-014-0000
M16 30.5 63 35 35 700 500 S B012-016-0000
M18       S B012-018-0000
M20 35 72 40 40 1200 830 S B012-020-0000
M22 81 45 45 1500 1050 * B012-022-0000
M24 45 90 50 50 1800 1270 S B012-024-0000
M27 45 90 50 50 2500 1650 * B012-027-0000
M30 55 108 65 60 3600 2600 S B012-030-0000
M33  108 65 60 4300 3200 * B012-033-0000
M36 65 126 75 70 5100 3700 S B012-036-0000
M39  126 75 70   * B012-039-0000
M42 75 144 85 80 7000 5000 * B012-042-0000
M45     8000 5500 * B012-045-0000
M48 85 166 100 90 8600 6100 * B012-048-0000
M52     9900 7300 * B012-052-0000
M56 95 184 110 100 11500 8300 * B012-056-0000
M64 105 206 120 110 16000 11000 * B012-064-0000
M72 130 260 150 140 21000 15000 * B012-072-0000
M80 150 296 170 160 28000 20000 * B012-080-0000
M100 165 330 190 180 38000 27000 * B012-100-0000
*Pulling at a 45°Angle

10 DIN 605
Flat Square Neck Bolt
Malleable Casting or Steel

With Hex Nuts

B031  Zinc Plated
d1 b d2 max. k max. v max. Lengths (mm)
M5 18 16.55 7.45 6.48 30-50
M6 22 20.65 9.45 8.58 30-60
M8 26 24.65 11.55 10.58 40-60
*Please contact us for availability*

S → Normally Stocked | * → Call for Availability

Fuller Metric Parts Ltd. -7- 10.1.1

 DIN 906
Pipe Plugs
Hexagon Socket

Conical Thread
S100  906
Metric Fine Thread
d b s e t min. Stock FMP Order #
M8x1 8 4 4.6 4 S S100-008-0001
M10x1 8 5 5.7 4 S S100-010-0001
M12x1.5 10 6 6.9 5 S S100-012-01.5
M14x1.5 10 7 8 5 S S100-014-01.5
M16X1.5 10 8 9.2 5 S S100-016-01.5
M18X1.5 10 8 9.2 5 S S100-018-01.5
M20X1.5 10 10 11.4 5 S S100-020-01.5
M22X1.5 10 10 11.4 5 S S100-022-01.5
M24X1.5 12 12 13.7 6 S S100-024-01.5
M26X1.5 12 12 13.7 6 * S100-026-01.5
M27X2 12 12 13.7 6 * S100-027-0002
M30X1.5 12 17 19.4 6 * S100-030-01.5
M30X2 12 17 19.4 6 * S100-030-0002
M33X2 12 17 19.4 6 * S100-033-0002
M36X1.5 15 19 21.7 7.5 * S100-036-01.5
M36X2 15 19 21.7 7.5 * S100-036-0002
Whitworth Pipe Thread
d b s e t min. Stock FMP Order #
R 1/8 8 5 5.7 4 * S100-005-000R
R 1/4 10 7 8 5 * S100-014-000R
R 3/8 10 8 9.2 5 * S100-018-000R
R 1/2 10 10 11.4 5 * S100-024-000R
R 3/4 12 12 13.7 6 * S100-028-000R
R1 12 17 19.4 6 * S100-034-000R
R 1-1/4 18 22 25.2 11.5 * S100-038-000R
R 1-1/2 20 24 27.4 11.5 * S100-044-000R

10
Thumb Screws
GT Malleable Casting

M076  Zinc Plated

d1 a max. h max. c max. Lengths (mm)
M5 21 16 2.5 10-20
M6 24 16.5 3 10-30
M8 28.5 19.5 3 12-50
*Please contact us for availability*

Please see Section 11 for Imperial Products

S → Normally Stocked | * → Call for Availability

10.1.1 -8- FMP

 DIN 910
Pipe Plugs
Hexagon Socket

Collar Cylindrical Thread

A013  910
d d1 s e c i l≈ m Stock FMP Order #
M10x1 14 10 10.89 3 8 17 6 * A013-010-0001
M12x1.5 17 13 14.2 3 12 21 6 S A013-012-01.5
M14x1.5 19 13 14.2 3 12 21 6 S A013-014-01.5
M16x1.5 21 17 18.72 3 12 21 6 S A013-016-01.5
M18x1.5 23 17 18.72 4 12 24 8 S A013-018-01.5
M20x1.5 25 19 20.88 4 14 26 8 S A013-020-01.5
M22x1.5 27 19 20.88 4 14 26 8 S A013-022-01.5
M24x1.5 29 22 23.91 4 14 27 9 * A013-024-01.5
M26x1.5 31 24 26.17 4 16 30 10 * A013-026-01.5
M27x2 32 24 26.17 4 16 30 10 * A013-027-0002
M30x1.5 36 24 26.17 4 16 30 10 * A013-030-01.5
M30x2 36 24 26.17 4 16 30 10 * A013-030-0002
M33x2 39 27 29.56 5 16 32 11 * A013-033-0002
M36x1.5 42 27 29.56 5 16 32 11 * A013-036-01.5
M36x2 42 27 29.56 5 16 32 11 * A013-036-0002
M38x1.5 44 27 29.56 5 16 32 11 * A013-038-01.5
M39x2 46 27 29.56 5 16 32 11 * A013-039-0002
M42x1.5 49 30 32.95 5 16 33 12 * A013-042-01.5
M45x1.5 52 30 32.95 5 16 33 12 * A013-045-01.5
M48x1.5 55 30 32.95 5 16 33 12 * A013-048-01.5
M52x1.5 60 30 32.95 5 16 33 12 * A013-052-01.5
M52x2 60 30 32.95 5 16 33 12 * A013-052-0002
M56x2 64 36 39.55 5 20 40 15 * A013-056-0002
M64x2 72 36 39.55 5 20 40 15 * A013-064-0002

10 Bent Eye Bolts

Steel

B032  Zinc Plated

d1 d2 Lengths (mm)
M4 6 10-40
M5 8 10-40
M6 10 10-50
M8 12 15-60
*Please contact us for availability*

Please see Section 11 for Imperial Products

S → Normally Stocked | * → Call for Availability

Fuller Metric Parts Ltd. -9- 10.1.1

 DIN 939
Stud
5.8 Grade

Metal End = 1.25 d

S0T1  Bare Steel
d M5 M6 M8 M10 M12 M16 M20 M24 M27
b 16 18 22 26 30 38 46 54 60
e 6.5 7.5 10 12 15 20 25 30 35
Length S0T1
16 * S
20 * S S S
25 * S S S S
30 * S S S S S *
35 * S S S S S *
40 * S S S S S S
45 * S S S S S S
50 * S S S S S S
55 * S S S S * *
60 * * S S S S S * *
65 * S S S S * *
70 * S S S S S * *
75 S
80 * * * S S S *
90 * * * * S * * *
100 * * * * * * * *
105 * * *
110 * * * * * *
115 * * *
120 * * * * * *
125 * *
130 * * * * *
135 * * *
140 * * * * *
150 * * * * *
160
170
*
*
*
*
*
*
*
*
*
*
10
180 * * * * *
190 * * * * *
200 * * * * *
240 *

Order Number → 939-5.8 10x20 = S0T1-010-0020 | 939-5.8 10x140 = S0T1-010-0140

S → Normally Stocked | * → Call for Availability

10.1.1 - 10 - FMP
 Grease Fittings

F0H1  H1 Straight
F0H2  H2 45° F0H3  H3 90°

Straight ≈h ≈b ≈WAF F0H1 FMP Order #

6x1 9.5 5.5 7 S F0H1-006-0001
8x1 9.5 5.5 9 S F0H1-008-0001
10x1 9.5 5.5 11 S F0H1-010-0001
12x1.5 11.5 6 14 S F0H1-012-01.5
45° ≈h ≈b ≈WAF F0H2 FMP Order #
6x1 14.5 5.5 9 S F0H2-006-0001
8x1 14.5 5.5 9 S F0H2-008-0001
10x1 14.5 5.5 11 S F0H2-010-0001
12x1.5 17.5 6.5 14 S F0H2-012-01.5
90° ≈h ≈b ≈WAF F0H3 FMP Order #
6x1 12.5 5.5 9 S F0H3-006-0001
8x1 12.5 5.5 9 S F0H3-008-0001
10x1 12.5 5.5 11 S F0H3-010-0001
12x1.5 12.5 5.5 14 S F0H3-012-01.5

DIN 71803
Ball Studs
Form “C”
With Flats
With Threaded Neck
B036  Bare Steel

10 d1 h9
6
d2
M4
SW
5
L3
7
L2
6.5
8 M5 7 9 10.2
10 M6 8 11 12.5
13 M8 11 13 16.5
16 M10 13 16 20
19 M14x1.5 16 20 28
*Please contact us for availability*

S → Normally Stocked | * → Call for Availability

Fuller Metric Parts Ltd. - 11 - 10.1.1

 DIN 71803
Ball Studs
Form “B”

With Rivet Neck

B034  Short Bare Steel
B035  Long Bare Steel
d1 h9 d5 L3 L1 (Short) L1 (Long)
8 5 9 4 7.5
10 6 11 4.5 8
13 8 13 5 10
16 10 16 6 13
19 14 20 12 18
*Please contact us for availability*

DIN 71805
Ball Seats
Form “A”

With Snap Ring

B037  Bare Steel
d1 d2 d3 a L≈
8 M5 8 10.2 22
10 M6 10 11.5 25
13 M8 13 14 30
16 M10 16 15.5 35
19 M14x1.5 22 21.5 45
*Please contact us for availability*

Ball Seats DIN 71805 10

Form “B”

With Snap Ring and Groove For Locking

B038  Bare Steel
d1 d2 d3 a L≈
8 M5 8 10.2 22
10 M6 10 11.5 25
13 M8 13 14 30
16 M10 16 15.5 35
19 M14x1.5 22 21.5 45
*Please contact us for availability*

S → Normally Stocked | * → Call for Availability

10.1.1 - 12 - FMP
 Articulated Joints
High Type
Externally Threaded
With Plain Bearing
B060  Bare Steel
B070  Left Hand Thread Bare Steel
Load Capacity N
d1 H7 d3 d6 d8 b1 b3 h l l3 α°
dynam. stat.
5 M5 18 11.06 8 6 33 20 9 7.5 3910 5390
6 M6 20 12.65 9 6.75 36 22 12 6.5 4590 7510
8 M8 24 15.82 12 9 42 25 15 7.5 6965 13700
10 M10 28 19 14 10.5 48 29 15 8 10420 21705
12 M12 32 22.17 16 12 54 33 19 8 12425 31060
14 M14 36 25.35 19 13.5 60 36 20 9.5 15440 38610
16 M16 42 28.52 21 15 66 40 22 8.5 22410 56020
18 M18x1.5 46 31.70 23 16.5 72 44 25 9.5 26325 65810
20 M20x1.5 50 34.87 25 18 78 47 28 9 30805 77010
25 M24x2 60 42.80 31 22 94 57 30 10 45350 113380
30 M30x2 70 50.75 37 25 110 66 35 10.5 55010 137520
*Please contact us for availability*

Articulated Joints
High Type
Internally Threaded
With Plain Bearing
B061  Bare Steel
B071  Left Hand Thread Bare Steel
10
Load Capacity N
d1 H7 d2 d3 d6 d7 d8 b1 b3 h l l1 l3 α° SW
dynam. stat.
5 9 M5 18 11 11.06 8 6 27 10 4 10 7.5 9 3910 9775
6 10 M6 20 13 12.65 9 6.75 30 12 5 10 6.5 11 4590 11490
8 12.5 M8 24 16 15.82 12 9 36 16 5 12 7.5 14 6965 17420
10 15 M10 28 19 19 14 10.5 43 20 6.5 15 8 17 10420 26050
12 17.5 M12 32 22 22.17 16 12 50 22 6.5 16 8 19 12425 31060
14 20 M14 36 25 25.35 19 13.5 57 25 8 20 9.5 22 15440 38610
16 22 M16 42 27 28.52 21 15 64 28 8 22 8.5 22 22410 56020
18 25 M18x1.5 46 31 31.7 23 16.5 71 32 10 24 9.5 27 26325 65810
20 27.5 M20x1.5 50 34 34.87 25 18 77 33 10 26 9 30 30805 77010
22 30 M22x1.5 54 38 38.05 28 20 84 37 12 26 10 32 38230 95580
25 33.5 M24x2 60 42 42.8 31 22 94 42 12 30 10 36 45350 113380
30 40 M30x2 70 50 50.75 37 25 110 51 15 35 10.5 41 55010 137520
*Please contact us for availability*

S → Normally Stocked | * → Call for Availability

Fuller Metric Parts Ltd. - 13 - 10.1.1

Articulated Joints
Low Type
Externally Threaded
With Plain Bearing
B062  Bare Steel
B072  Left Hand Thread Bare Steel
Load Capacity N
d1 H7 Tol. d3 d6 d8 b1 b3 h l l3 α°
dynam. stat.
6 +2 M6 20 10 6 4 36 22 11 6.5 3920 5395
8 -10 M8 23 13 8 5 42 25 12 8 6375 10005
10 M10 28 16 9 6 48 29 15 6 9415 16475
12 +3 M12 32 18 10 7 54 33 15 5 12355 24025
15 -11 M14 38 22 12 9 63 36 18 4.5 19415 33570
17 M16 44 25 14 10 69 40 23 5.5 24515 46780
20 +3 M20x1.5 51 29 16 12 78 47 25 4.5 34125 84730
25 -13 M24x2 62 35.5 20 16 94 57 32 3.5 55700 122290
30 M30x2 70 40.7 22 18 110 66 35 3 71885 179705
35 +3 M36x3 82 47 25 20 140 92 38 3.5 92185 230455
40 -15 M42x3 92 53 28 22 145 94 42 3.5 114345 285865
*Please contact us for availability*

Articulated Joints
Low Type
Internally Threaded
With Plain Bearing
B063  Bare Steel
B073  Left Hand Thread Bare Steel
10
Load Capacity N
d1 H7 Tol. d2 d3 d6 d8 b1 b3 h l l3 α° SW
dynam. stat.
6 +2 10 M6 20 10 6 4 30 12 11 6.5 9 3920 9805
8 -10 13 M8 23 13 8 5 36 16 12 8 11 6375 15935
10 16 M10 28 16 9 6 43 20 13 6 14 9415 23535
12 +3 19 M12 32 18 10 7 50 22 15 5 17 12355 30890
15 -11 22 M14 38 22 12 9 61 25 18 4.5 19 19415 48545
17 25 M16 44 25 14 10 67 28 20 5.5 22 24515 61290
20 +3 28 M20x1.5 51 29 16 12 77 33 23 4.5 24 34125 85320
25 -13 35 M24x2 62 35.5 20 16 94 42 30 3.5 30 55700 139255
30 42 M30x2 70 40.7 22 18 110 51 32 3 36 71880 179705
35 +3 48 M36x3 82 47 25 20 125 61 38 3.5 41 92180 230455
40 -15 58 M42x3 92 53 28 22 145 71 42 3.5 50 114345 285865
50 70 M52x3 112 66 35 28 195 89 60 3 60 181255 453065
*Please contact us for availability*

S → Normally Stocked | * → Call for Availability

10.1.1 - 14 - FMP
 Articulated Joints
High Type
Externally Threaded
With Self-Aligning Ball Bearing
B064  Bare Steel
B074  Left Hand Thread Bare Steel
n max. Load Capacity N
d1 H7 d3 d4 d6 b1 b3 h l l3 α°
Speed dynam. stat.
6 M6 9 20 9 6.75 36 22 12 8 1350 2750 650
8 M8 10.5 24 12 9 42 25 15 8.5 1300 4000 1000
10 M10 12 28 14 10.5 48 29 15 8 1225 4450 1450
12 M12 14.5 32 16 12 54 33 19 7.5 1125 4950 1800
14 M14 17 36 19 13.5 60 36 20 6 1025 5600 2000
16 M16 19 42 21 15 66 40 22 8 975 6250 2350
18 M18x1.5 21.5 46 23 16.5 72 44 25 8.5 900 7100 2900
20 M20x1.5 24.5 50 25 18 78 47 28 7 825 7900 3450
25 M24x2 29.5 64 31 22 94 57 30 5 600 11030 5680
30 M30x2 34.5 70 37 25 110 66 35 7.5 450 14150 7450
*Please contact us for availability*

Articulated Joints
High Type
Internally Threaded
With Self-Aligning Ball Bearings
B065  Bare Steel
B075  Left Hand Thread Bare Steel
10
N max. Load Capacity N
d1 H7 d2 d3 d4 d6 d7 b1 b3 h l l1 α° SW Speed dynam. stat.
6 10 M6 9 20 13 9 6.75 30 12 5 8 11 1350 2750 650
8 12.5 M8 10.5 24 16 12 9 36 16 5 8.5 14 1300 4000 1000
10 15 M10 12 28 19 14 10.5 43 20 6.5 8 17 1225 4450 1450
12 17.5 M12 14.5 32 22 16 12 50 22 6.5 7.5 19 1125 4950 1800
14 20 M14 17 36 25 19 13.5 57 25 8 6 22 1025 5600 2000
16 22 M16 19 42 27 21 15 64 28 8 8 22 975 6250 2350
18 25 M18x1.5 21.5 46 31 24 16.5 71 32 10 8.5 27 900 7100 2900
20 27.5 M20x1.5 24.5 50 34 25 18 77 33 10 7 30 825 7900 3450
22 30 M22x1.5 26 54 38 28 20 84 37 12 8 32 725 9300 3980
25 30 M24x2 29.5 64 35 31 22 94 42 10 5 30 600 11030 5680
30 40 M30x2 34.5 70 50 37 25 110 51 15 7.5 41 450 14150 7450
*Please contact us for availability*

S → Normally Stocked | * → Call for Availability

Fuller Metric Parts Ltd. - 15 - 10.1.1

Articulated Joints
Short Type
Internally Threaded
With Self-Aligning Ball Bearing
B066  Bare Steel
B076  Left Hand Thread Bare Steel
N max. Load Capacity N
d1 Tol. d2 d3 d4 d6 b1 b3 h l l3 α° SW
Speed dynam. stat.
10 +2/-10 15 M8 13 30 13 9 38 17 14.5 7 13 1225 2605 985
15 +3/-11 19 M12 17.5 40 16.5 12 51 24 20 7 17 1025 5000 1890
20 +3/-13 22 M16 24 48 20.5 15 65 32 22 6.5 19 850 6105 2955
*Please contact us for availability*

Articulated Joints
Externally Threaded

With Integrated Roller Bearings

B067  Bare Steel
B077  Left Hand Thread Bare Steel
N max. Load Capacity N
d1 H7 d3 d4 d6 b1 b3 h l l3 α° Speed dynam. stat.
12 M12 14.5 32 16 12 54 33 19 7.5 1125 10250 6600
16 M16 19 42 21 15 66 40 22 7 975 13300 8900
20 M20x1.5 24.5 50 25 18 78 47 28 7 825 17000 11700
25 M24x2 29.5 64 31 22 94 57 30 5 600 24900 18500
30 M30x2 34.5 70 37 25 110 66 35 7.5 450 32500 24850
*Please contact us for availability*
10
Articulated Joints
Internally Threaded

With Integrated Roller Bearing

B068  Bare Steel
B078  Left Hand Thread Bare Steel
N max. Load Capacity N
d1 H7 d2 d3 d4 d6 d7 b1 b3 h l α° SW
Speed dynam. stat.
16 22 M16 19 42 27 21 15 64 28 7 22 975 13300 8900
20 27.5 M20x1.5 24.5 50 34 25 18 77 33 7 30 825 17000 11700
25 30 M24x2 29.5 64 35 31 22 94 42 5 30 600 24900 18500
30 40 M30x2 34.5 70 50 37 25 110 51 7.5 41 450 32500 24850
*Please contact us for availability*
S → Normally Stocked | * → Call for Availability

10.1.1 - 16 - FMP
 Assortments
933-8.8 Plt. Hex Cap Assortment with Nuts FMP Order # ASMT-H002-1
Contains 13 Items, 126 Pieces in a 12 Slot Clear Plastic Box
M5, M6, M8, M10, M12

912-12.9 Socket Cap Assortment FMP Order # ASMT-S010-10

Contains 24 Items, 490 Pieces in a 24 Compartment Small Metal Drawer
M3, M4, M5, M6, M8, M10, M12

916-45H Set Screws FMP Order # ASMT-S033-10

Contains 20 Items, 390 Pieces in a 24 Compartment Small Metal Drawer
M3, M4, M5, M6, M8, M10, M12

7985-4.8 Plt. Phillips Pan Head Assortment FMP Order # ASMT-M050-10

Contains 16 Items, 355 Pieces in a 18 Slot Clear Plastic Box
M2, M2.5, M3, M4, M5, M6

1481 Spring Pin Assortment FMP Order # ASMT-P014-10

Contains 22 Items, 400 Pieces in a 24 Compartment Small Metal Drawer
M1, M1.5, M2, M2.5, M3, M4, M5, M6, M8, M10

6325-m6 Dowel Pin Assortment FMP Order # ASMT-P004-1

Contains 18 Items, 180 Pieces in a 18 Slot Clear Plastic Box
M2, M3, M4, M5, M6

471/472 Retaining Ring Assortment FMP Order # ASMT-R0T1-1

Contains 18 Items, 284 Pieces in a 18 Slot Clear Plastic Box
M8, M9, M10, M11, M12, M13, M14, M15, M16

10 471 External Retaining Ring Assortment FMP Order # ASMT-R0T1-10

Contains 27 Items, 285 Pieces in a 32 Compartment Large Metal Drawer
M10, M11, M12, M13, M14, M15, M16, M17, M18, M19, M20, M21, M22, M23
M24, M25, M26, M27, M29, M30, M32, M33, M35, M36, M38, M40, M42

472 Internal Retaining Ring Assortment FMP Order # ASMT-R0T2-10

Contains 27 Items, 290 Pieces in a 32 Compartment Large Metal Drawer
M10, M11, M12, M13, M14, M15, M16, M17, M18, M19, M20, M21, M22, M23
M24, M25, M26, M27, M29, M30, M32, M33, M35, M36, M38, M40, M42

Straight, 45º, 90º Grease Fitting Assortment FMP Order # ASMT-F0H1-1

Contains 9 Items, 45 Pieces in a 12 Slot Clear Plastic Box
M6x1, M8x1, M10x1

S → Normally Stocked | * → Call for Availability

Fuller Metric Parts Ltd. - 17 - 10.1.1
