  • Electrical Load Summary

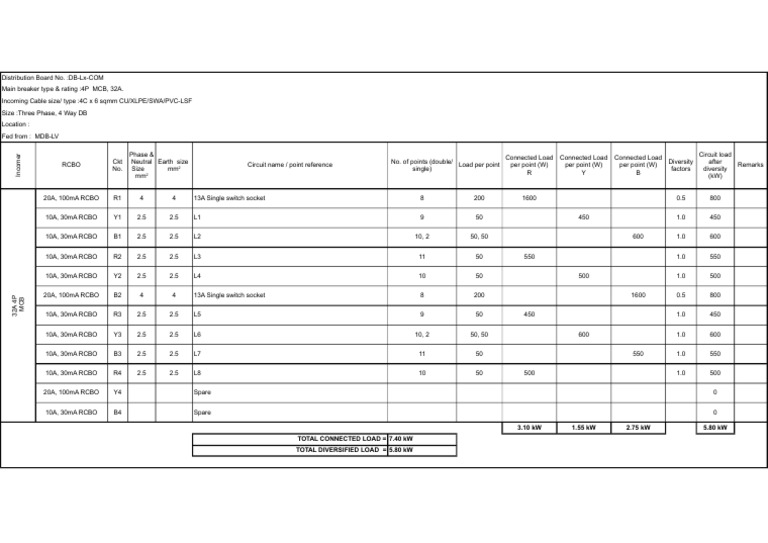

Distribution Board No.

:DB-Lx-COM
Main breaker type & rating :4P MCB, 32A.
Incoming Cable size/ type :4C x 6 sqmm CU/XLPE/SWA/PVC-LSF
Size :Three Phase, 4 Way DB
Location :
Fed from : MDB-LV

Phase & Circuit load


Incomer

Connected Load Connected Load Connected Load


Ckt Neutral Earth size No. of points (double/ Diversity after
RCBO Circuit name / point reference Load per point per point (W) per point (W) per point (W) Remarks
No. Size mm2 single) factors diversity
R Y B
mm2 (kW)

20A, 100mA RCBO R1 4 4 13A Single switch socket 8 200 1600 0.5 800

10A, 30mA RCBO Y1 2.5 2.5 L1 9 50 450 1.0 450

10A, 30mA RCBO B1 2.5 2.5 L2 10, 2 50, 50 600 1.0 600

10A, 30mA RCBO R2 2.5 2.5 L3 11 50 550 1.0 550

10A, 30mA RCBO Y2 2.5 2.5 L4 10 50 500 1.0 500

20A, 100mA RCBO B2 4 4 13A Single switch socket 8 200 1600 0.5 800
32A 4P
MCB

10A, 30mA RCBO R3 2.5 2.5 L5 9 50 450 1.0 450

10A, 30mA RCBO Y3 2.5 2.5 L6 10, 2 50, 50 600 1.0 600

10A, 30mA RCBO B3 2.5 2.5 L7 11 50 550 1.0 550

10A, 30mA RCBO R4 2.5 2.5 L8 10 50 500 1.0 500

20A, 100mA RCBO Y4 Spare 0

10A, 30mA RCBO B4 Spare 0

3.10 kW 1.55 kW 2.75 kW 5.80 kW


TOTAL CONNECTED LOAD = 7.40 kW
TOTAL DIVERSIFIED LOAD = 5.80 kW
