Concept: Placing Harness From and To Tables

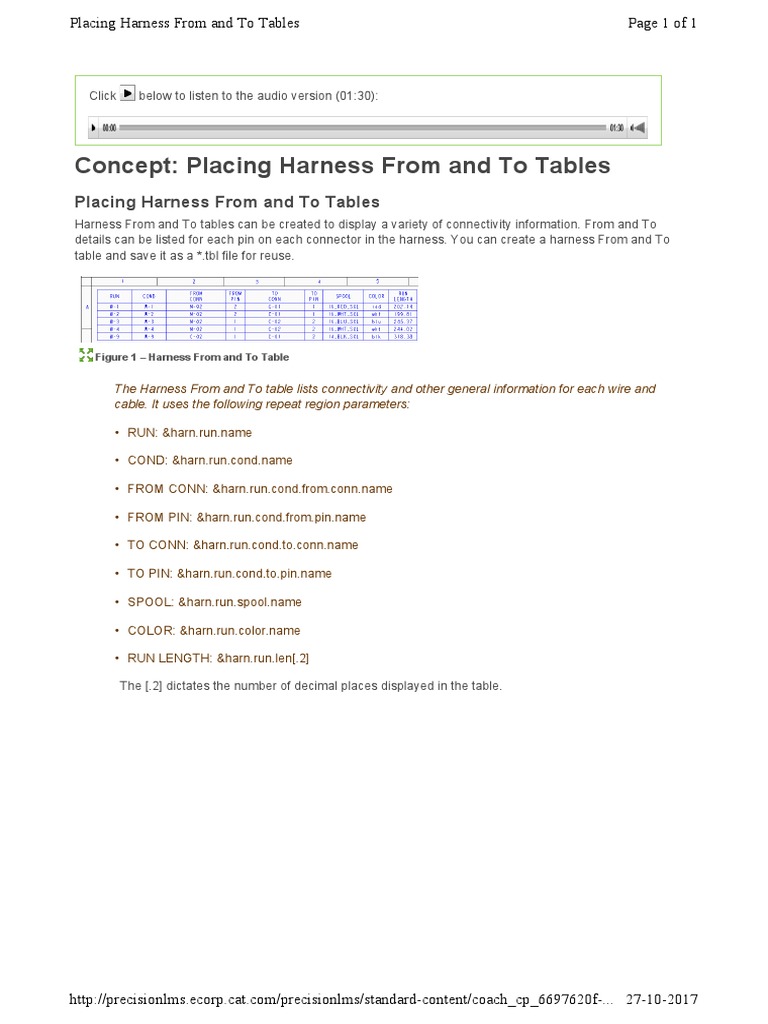

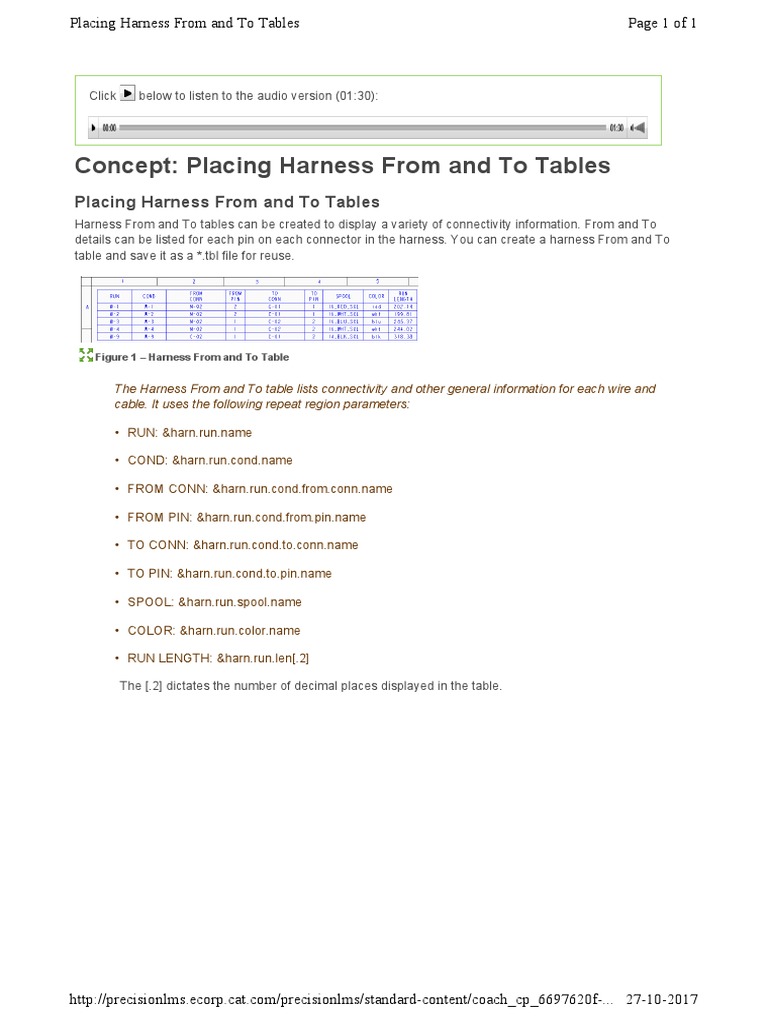

Placing Harness From and To Tables
Harness From and To tables can be created to display a variety of connectivity information. From and To
details can be listed for each pin on each connector in the harness. You can create a harness From and To
table and save it as a *.tbl file for reuse.

Figure 1 – Harness From and To Table

The Harness From and To table lists connectivity and other general information for each wire and
cable. It uses the following repeat region parameters:

• RUN: &harn.run.name

• COND: &harn.run.cond.name

• FROM CONN: &harn.run.cond.from.conn.name

• FROM PIN: &harn.run.cond.from.pin.name

• TO CONN: &harn.run.cond.to.conn.name

• TO PIN: &harn.run.cond.to.pin.name

• SPOOL: &harn.run.spool.name

• COLOR: &harn.run.color.name

• RUN LENGTH: &harn.run.len[.2]

The [.2] dictates the number of decimal places displayed in the table.
