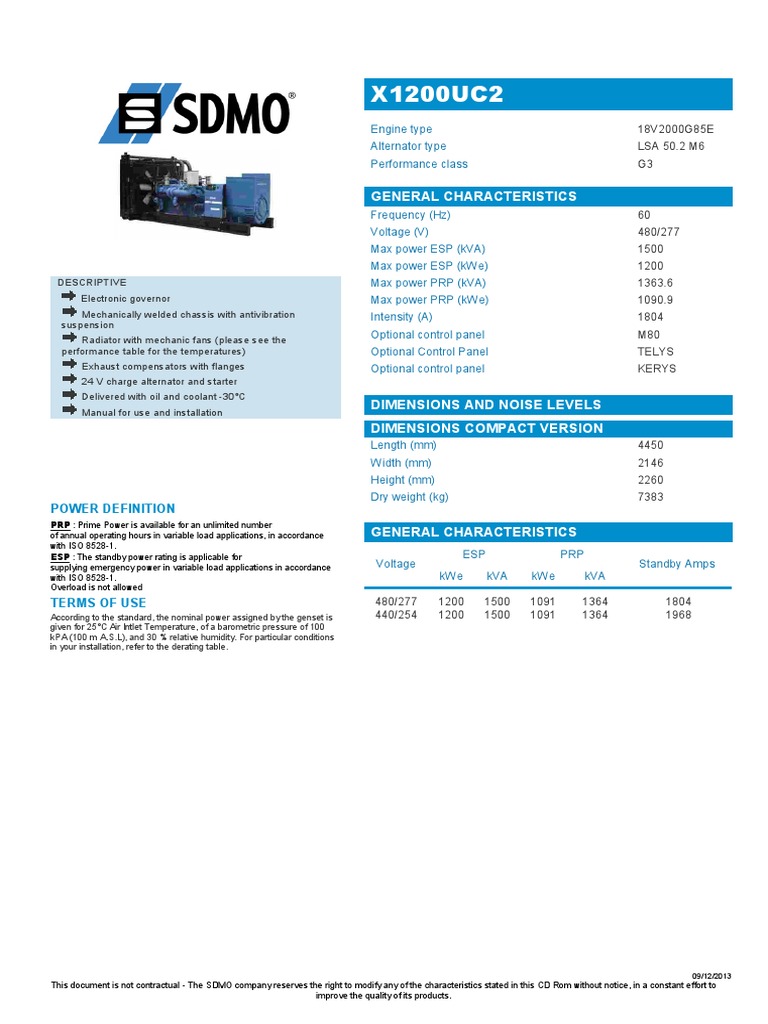

X1200UC2

Engine type 18V2000G85E

Alternator type LSA 50.2 M6
Performance class G3

GENERAL CHARACTERISTICS
Frequency (Hz) 60
Voltage (V) 480/277
Max power ESP (kVA) 1500
Max power ESP (kWe) 1200
DESCRIPTIVE Max power PRP (kVA) 1363.6
Electronic governor Max power PRP (kWe) 1090.9
Mechanically welded chassis with antivibration Intensity (A) 1804
suspension
Optional control panel M80
Radiator with mechanic fans (please see the
performance table for the temperatures) Optional Control Panel TELYS
Exhaust compensators with flanges Optional control panel KERYS
24 V charge alternator and starter
Delivered with oil and coolant -30°C
Manual for use and installation
DIMENSIONS AND NOISE LEVELS
DIMENSIONS COMPACT VERSION
Length (mm) 4450
Width (mm) 2146
Height (mm) 2260
Dry weight (kg) 7383
POWER DEFINITION
PRP : Prime Power is available for an unlimited number
of annual operating hours in variable load applications, in accordance GENERAL CHARACTERISTICS
with ISO 8528-1.
ESP : The standby power rating is applicable for ESP PRP
supplying emergency power in variable load applications in accordance Voltage Standby Amps
with ISO 8528-1. kWe kVA kWe kVA
Overload is not allowed
TERMS OF USE 480/277 1200 1500 1091 1364 1804
According to the standard, the nominal power assigned by the genset is 440/254 1200 1500 1091 1364 1968
given for 25°C Air Intlet Temperature, of a barometric pressure of 100
kPA (100 m A.S.L), and 30 % relative humidity. For particular conditions
in your installation, refer to the derating table.

09/12/2013
This document is not contractual - The SDMO company reserves the right to modify any of the characteristics stated in this CD Rom without notice, in a constant effort to
improve the quality of its products.
 X1200UC2
ENGINE SPECIFICATIONS

GENERAL ENGINE DATAS EXHAUST

MTU Exhaust gas temperature (°C) 510
18V2000G85E ,
Engine model Exhaust gas flow (L/s) 4000
4-temps, Turbo ,
Air/Air DC 18 X Max. exhaust back pressure (mm EC) 500
Cylinder arrangement V
Displacement (C.I.) 35.84
FUEL
Bore (mm) x Stroke (mm) 130 x 150
Fuel consumption 110% load (L/hr) 309
Compression ratio 16
Fuel consumption 100% load (L/hr) 281
Speed (RPM) 1800
Fuel consumption 75% (L/h) 217
Pistons speed (m/s) 9
Maximum stand-by power at rated Fuel consumption 50% (L/h) 147
1310
RPM (kW) Maximum fuel pump flow (L/h) 480
Frequency regulation (%) +/- 0.5%
BMEP (bar) 22.2
OIL
Governor type Electronic
Oil capacity (L) 130
Min. oil pressure (bar) 4.7
COOLING SYSTEM
Max. oil pressure (bar) 7.5
Radiator & Engine capacity (L) 225
Oil consumption 100% load (L/h) 2.81
Max water temperature (°C) 102
Carter oil capacity (L) 110
Outlet water temperature (°C) 95
Fan power (kW) 50
HEAT BALANCE
Fan air flow w/o restriction (m3/s) 25.85
Available restriction on air flow (mm Heat rejection to exhaust (kW) 868
20
EC) Radiated heat to ambiant (kW) 50
Type of coolant Glycol-Ethylene
Haet rejection to coolant (kW) 460
Thermostat (°C) 75-88

AIR INTAKE
EMISSIONS Max. intake restriction (mm EC) 150
Emission PM (g/kWh) 0.03 Intake air flow (L/s) 1700
Emission CO (g/kW.h) 0.52
Emission HCNOx (g/kWh) N/A
Emission HC (g/kW.h) 0.06

09/12/2013
This document is not contractual - The SDMO company reserves the right to modify any of the characteristics stated in this CD Rom without notice, in a constant effort to
improve the quality of its products.
 X1200UC2
ALTERNATOR SPECIFICATIONS

GENERAL DATAS OTHER DATAS

Alternator brand LEROY SOMER Continuous Nominal Rating 40°C (kVA) 1560
Alternator type LSA 50.2 M6 Standby Rating 27°C (kVA) 1720
Number of phase 3 Efficiencies 4/4 load (%) 95
Power factor (Cos Phi) 0.8 Air flow (cfm) 2.2
Altitude (m) 0 à 1000 Short circuit ratio (Kcc) 0.29
Overspeed (rpm) 2250 Direct axis synchro reactance unsaturated (Xd) (%) 407
Number of pole 4 Quadra axis synchro reactance unsaturated (Xq) (%) 244
Excitation system AREP Open circuit time constant (T''do) (ms) 3634
Insulation class / T° class, continuous Direct axis transcient reactance saturated (X''d) (%) 20
H / H / 125°K
40°C
Short circuit transcient time constant (T''d) (ms) 180
AVR R450
Direct axis subtranscient reactance saturated (X''''d)
Harmonic factor, no load TGH/THC (%) <3.5 17
(%)
Wave form : NEMA=TIF-(TGH/THC) <50 Subtranscient time constant (T""d) (ms) 18
Wave form : CEI=FHT-(TGH/THC) <2 Quadra axis subtranscient reactance saturated (X""q)
18
(%)
Number of bearing 1
Zero sequence reactance unsaturated (Xo) (%) 3.7
Coupling Direct
Negative sequence reactance saturated (X2) (%) 17.6
Voltage regulation at established rating
+/- 0.5% Armature time constant (Ta) (ms) 27
(%)
Recovery time (Delta U = 20% transcient) 500 No load excitation current (io) (A) 0.9
(ms)
Full load excitation current (ic) (A) 4.2
Full load excitation voltage (uc) (V) 46
Recovery time (Delta U = 20% transcient) (ms) 500
Motor start (Delta U = 20% perm. or 50% trans.) (kVA) 3553
Transcient dip (4/4 load) - PF : 0,8 AR (%) 13.9
No load losses (W) 22000
Heat rejection (W) 64830

DIMENSIONS AND NOISE LEVELS

ISO20 CONTAINER CIR20 SSI CONTAINER
Canopy ISO20 Si Canopy CIR20 SSi
Length (mm). 6058 Length (mm). 6058
Width (mm). 2438 Width (mm). 2438
Height (mm). 2896 Height (mm). 2896
Dry weight (kg). 12300 Dry weight (kg). 13890
Tank capacity (L). 500 Tank capacity (L). 500
Acoustic pressure level @1m in dB(A) 96 Acoustic pressure level @1m in dB(A) 89
Acoustic pressure level @7m in dB(A) 87 Acoustic pressure level @7m in dB(A) 80

09/12/2013
This document is not contractual - The SDMO company reserves the right to modify any of the characteristics stated in this CD Rom without notice, in a constant effort to
improve the quality of its products.
 X1200UC2
CONTROL PANEL

M80, transfer of information TELYS, ergonomic and user-friendly

The M80 is a dual-function control unit. It can be used The highly versatile TELYS control unit is complex yet
as a basic terminal block for connecting a control box accessible, thanks to the particular attention paid to
and as an instrument panel with a direct read facility, optimising its ergonomics and ease of use. With its
with displays giving a global view of your generating large display screen, buttons and scroll wheel, it
set's basic parameters. places the accent on simplicity and communication.

Offers the following functions: The TELYS offers the following functions:

Engine parameters: tachometer, working hours Electrical measurements: voltmeter, frequency

counter, coolant temperature indicator, oil pressure meter, ammeter.
indicator, emergency stop button, customer
connection terminal block, CE Engine parameters: working hours counter, oil
pressure, coolant temperature, fuel level, engine
speed, battery voltage.

Alarms and faults: oil pressure, coolant

temperature, failure to start, overspeed, alternator
min./max., battery voltage min./max., emergency stop,
fuel level.

Ergonomics: wheel for navigating around the

various menus.

Communication: remote control and operation

software, USB connections, PC connection.

For more information on the product and its options,

please refer to the sales documentation.

09/12/2013
This document is not contractual - The SDMO company reserves the right to modify any of the characteristics stated in this CD Rom without notice, in a constant effort to
improve the quality of its products.
 KERYS, coupling and adaptability

The KERYS control unit has been designed to fulfil

the specific requirements of professionals in terms of
operating and monitoring generating sets. It therefore
offers a wide range of functions.
This control unit is fitted as standard to all generating
sets designed to be used for coupling and is offered
as an option across the rest of our range.
The KERYS can be built into the central console, fitted
directly on the generating set, or in a separate cabinet,
to fulfil all the requirements for low and high output
power plants.

>The KERYS offers the following functions:

Electrical measurements: voltmeter, frequency

meter, ammeter.

Engine parameters: working hours counter, oil

pressure, coolant temperature, fuel level, engine
speed, battery voltage.

Alarms and faults: oil pressure, coolant

temperature, failure to start, overspeed, alternator
min./max., battery voltage min./max., emergency stop.

Additional functions: coupling, website,

diagnostic aid, assistance and maintenance, graphs
and archiving, load impact management, 8 available
installation configurations, certification in line with
international standards.

For more information, please refer to the sales

documentation.
Additional specifications :Website, Troubleshooting,
Assistance and Maintenance, Plotting and logging,
Load impact, 8 configurations available, Compliance
with international standards...
