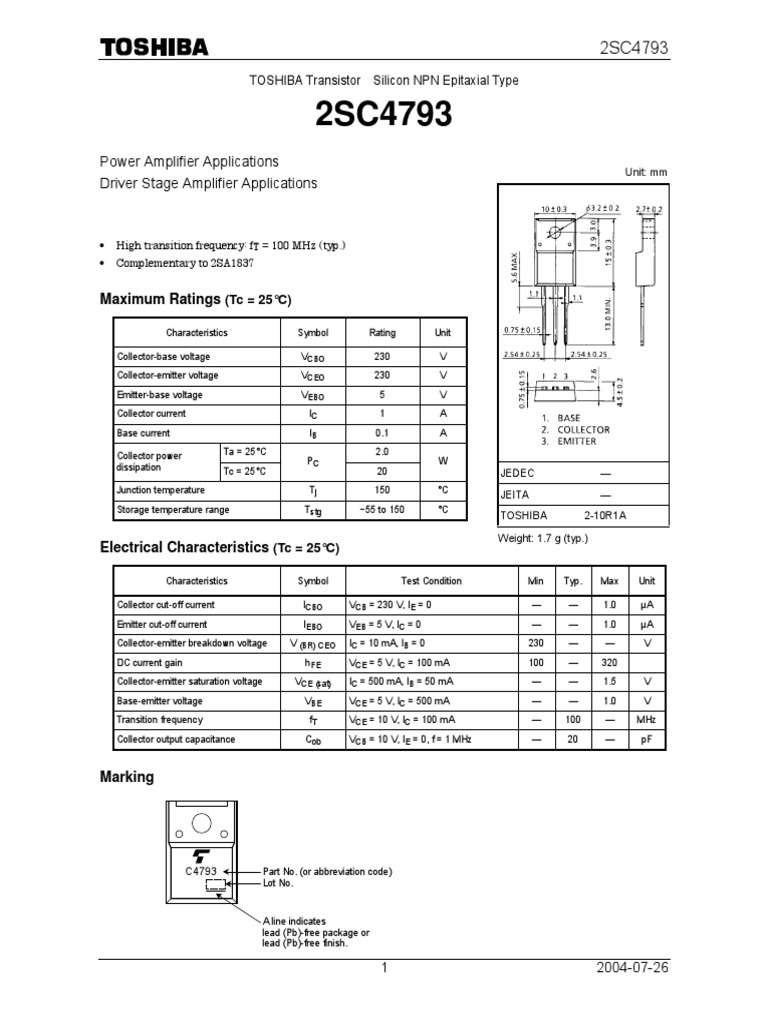

2SC4793

TOSHIBA Transistor Silicon NPN Epitaxial Type

2SC4793
Power Amplifier Applications
Unit: mm
Driver Stage Amplifier Applications

• High transition frequency: fT = 100 MHz (typ.)

• Complementary to 2SA1837

Maximum Ratings (Tc = 25°C)

Characteristics Symbol Rating Unit

Collector-base voltage VCBO 230 V

Collector-emitter voltage VCEO 230 V
Emitter-base voltage VEBO 5 V
Collector current IC 1 A
Base current IB 0.1 A

Collector power Ta = 25°C 2.0

PC W
dissipation Tc = 25°C 20 JEDEC ―
Junction temperature Tj 150 °C JEITA ―
Storage temperature range Tstg −55 to 150 °C
TOSHIBA 2-10R1A

Weight: 1.7 g (typ.)

Electrical Characteristics (Tc = 25°C)

Characteristics Symbol Test Condition Min Typ. Max Unit

Collector cut-off current ICBO VCB = 230 V, IE = 0 ― ― 1.0 µA

Emitter cut-off current IEBO VEB = 5 V, IC = 0 ― ― 1.0 µA
Collector-emitter breakdown voltage V (BR) CEO IC = 10 mA, IB = 0 230 ― ― V
DC current gain hFE VCE = 5 V, IC = 100 mA 100 ― 320
Collector-emitter saturation voltage VCE (sat) IC = 500 mA, IB = 50 mA ― ― 1.5 V
Base-emitter voltage VBE VCE = 5 V, IC = 500 mA ― ― 1.0 V
Transition frequency fT VCE = 10 V, IC = 100 mA ― 100 ― MHz
Collector output capacitance Cob VCB = 10 V, IE = 0, f = 1 MHz ― 20 ― pF

Marking

C4793 Part No. (or abbreviation code)

Lot No.

A line indicates
lead (Pb)-free package or
lead (Pb)-free finish.

1 2004-07-26
 2SC4793

IC – VCE IC – VBE
1.0 1.0
20 10

8
0.8 0.8
6
IC (A)

IC (A)
0.6 0.6 Tc = 100°C 25 −25
4
Collector current

Collector current
0.4 0.4
IB = 2 mA

0.2 0.2
Common emitter Common emitter
Tc = 25°C VCE = 5 V
0 0
0 2 4 6 8 10 0 0.2 0.4 0.6 0.8 1.0 1.2 1.4

Collector-emitter voltage VCE (V) Base-emitter voltage VBE (V)

VCE (sat) – IC VCE (sat) – IC

1000 1
Collector-emitter saturation voltage

Common emitter Common emitter

500 VCE = 5 V 0.5 IC/IB = 10
hFE

Tc = 100°C
300 0.3
VCE (sat) (V)

Tc = 100°C 25
DC current gain

−25
100 0.1
−25
50 25 0.05
30 0.03

10 0.01
0.003 0.01 0.03 0.1 0.3 1 3 0.003 0.01 0.03 0.1 0.3 1 3

Collector current IC (A) Collector current IC (A)

Safe Operating Area

5

3
IC max (pulsed)* 1 ms*
10 ms*
IC max (continuous) 100 ms*
fT – IC 1
(A)

500
0.5
Collector current IC
(MHz)

300 Common emitter DC operation

VCE = 10 V 0.3 Tc = 25°C
Tc = 25°C
fT

100
Transition frequency

0.1

50
0.05 *: Single nonrepetitive pulse
30 Tc = 25°C
0.03
Curves must be derated linearly
with increase in temperature.
VCEO max
10 0.01
5 10 30 100 300 1000 1 3 10 30 100 300

Collector current IC (mA) Collector-emitter voltage VCE (V)

2 2004-07-26
 2SC4793

RESTRICTIONS ON PRODUCT USE 030619EAA

• The information contained herein is subject to change without notice.

• The information contained herein is presented only as a guide for the applications of our products. No
responsibility is assumed by TOSHIBA for any infringements of patents or other rights of the third parties which
may result from its use. No license is granted by implication or otherwise under any patent or patent rights of
TOSHIBA or others.
• TOSHIBA is continually working to improve the quality and reliability of its products. Nevertheless, semiconductor
devices in general can malfunction or fail due to their inherent electrical sensitivity and vulnerability to physical
stress. It is the responsibility of the buyer, when utilizing TOSHIBA products, to comply with the standards of
safety in making a safe design for the entire system, and to avoid situations in which a malfunction or failure of
such TOSHIBA products could cause loss of human life, bodily injury or damage to property.
In developing your designs, please ensure that TOSHIBA products are used within specified operating ranges as
set forth in the most recent TOSHIBA products specifications. Also, please keep in mind the precautions and
conditions set forth in the “Handling Guide for Semiconductor Devices,” or “TOSHIBA Semiconductor Reliability
Handbook” etc..
• The TOSHIBA products listed in this document are intended for usage in general electronics applications
(computer, personal equipment, office equipment, measuring equipment, industrial robotics, domestic appliances,
etc.). These TOSHIBA products are neither intended nor warranted for usage in equipment that requires
extraordinarily high quality and/or reliability or a malfunction or failure of which may cause loss of human life or
bodily injury (“Unintended Usage”). Unintended Usage include atomic energy control instruments, airplane or
spaceship instruments, transportation instruments, traffic signal instruments, combustion control instruments,
medical instruments, all types of safety devices, etc.. Unintended Usage of TOSHIBA products listed in this
document shall be made at the customer’s own risk.
• TOSHIBA products should not be embedded to the downstream products which are prohibited to be produced
and sold, under any law and regulations.

3 2004-07-26
